From Antelope Audio
Digital clarity, analog warmth
Pure2 is a mastering-grade 24-bit, 192 kHz AD/DA 2-channel converter and master clock that includes a relay-controlled volume attenuator. It features Antelope Audio’s world-renowned Acoustically Focused Clocking (AFC) technology, and also utilizes pristine analog circuitry, driven by a proprietary multi-stage linear power supply for unsurpassed digital clarity and analog realism.
An intuitive software control panel for Mac or Windows provides users the ability to manage all facets of the device operation. Pure2 is also configurable via the front panel with user-definable presets.
Five ultra high-performance components
- A/D converter with optimized overloads handling
- D/A converter with dual DAC architecture
- High-end headphone amp with a dedicated D/A converter
- Relay-based analog volume control for accurate monitoring
- Master clock with 4th generation of Antelope's AFC jitter management
A/D Conversion
The famous Burr-Brown (TI) A/D converter PCM4222 is unsurpassed in terms of sound quality and performance. Carefully optimized analog driver stage gently handles overloads, contributing to distinct analog sound and smoother clipping.
Headphone Amp
The high-end headphone amp is powered by a dedicated D/A converter, allowing greater convenience and better routing flexibility. The separate DAC provides the option for monitoring a secondary source independent from the main outs.
D/A Conversion
The main D/A conversion in Pure2 is designed with a dual DAC architecture, providing separate DAC chips for the left and the right channels. The dual DAC design tremendously enhances the signal-to-noise ratio and greatly improves stereo imaging.
Monitoring
Pure2 utilizes Antelope's high quality analog volume control. It features a stepped relay attenuator with 0.05 dB precision, providing optimal transparency of the monitoring through the main outs.
Master Clock
The conversion timing and the sync of all digital studio devices is kept stable by the 4th generation of 64-bit AFC jitter management and oven-controlled crystal oscillator. This is exactly the same technology used in Antelope's flagship master clock, Isochrone Trinity and the top-seller Orion32 AD/DA. With several Word Clock outputs, Pure2 can function as the master clock for an entire studio and can also be locked to Antelope's legendary 10M Atomic Clock for even greater clocking stability.
User-friendly Device Management
With Pure2, attaining immaculate audio quality does not have to be complicated. The device includes a highly intuitive software control panel (compatible with both Mac and PC) enabling users to manage all facets of its operation from a computer. Meanwhile, the front panel of the unit also includes user-definable presets for added routing convenience and efficiency.
SPECIFICATION

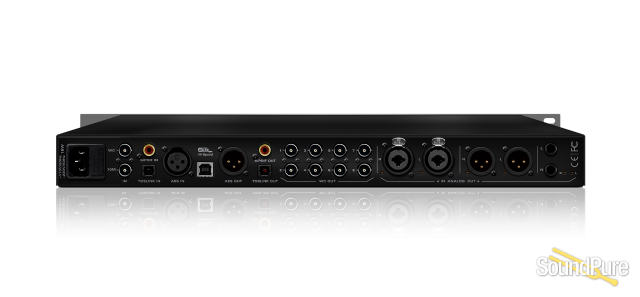

Inputs
| Analog Inputs | 3 x Combo Balanced Analog (XLR / ¼ TRS) 2 x ¼ TRS A/D Insert points 1 x ¼ TRS Talkback 1 x ¼ TRS Foot switch |
| Digital Inputs | 3 x AES/EBU on XLR. 32kHz to 192kHz @ 110 Ohms terminated 2 x S/PDIF on RCA. 32kHz to 192kHz @ 75 Ohms terminated 2 x TOSLINK on optical fiber: up to 96kHz |
Outputs
| Analog Outputs | 2 x Balanced XLR outputs from D/A Converter 3 x Balanced Outputs for monitors (1 x XLR and 2 x TRS) 1 x Balanced XLR LFE Out 2 x ¼ TRS Cue Mix Headphones 2 x ¼ TRS Front Headphones |
| Digital Outputs | 2 x AES/EBU on XLR for the A/D converter out (32kHz to 192kHz; 384kHz for dual wire when 384kHz is selected in the clock) @ 110 Ohms terminated 2 x De-jittered AES/EBU on XLR (32kHz to 192kHz; 384kHz for dual wire when 384kHz is selected in the clock) @ 110 Ohms terminated 1 x De-jittered S/PDIF on RCA (32kHz to 192kHz) @ 75 Ohms terminated 1 x De-jittered TOSLINK on optical fiber: up to 96kHz |
| USB | USB 2.0 Hi-Speed; Data stream up to 480Mbits/384kHz, Type B |
| Word Clock | 1 x 10M Atomic Clock input @ 75 Ohms 3Vpp on BNC 44.1 - 384kHz 1 x Word Clock Input @ 75 Ohms 3Vpp on BNC 44.1 - 384kHz 4 x Word Clock Outputs @ 75 Ohms 3Vpp on BNC 44.1 - 384kHz square wave signal |
D/A Converter
| Dynamic Range | 129dB |
| THD + N | 0.0004 % |
A/D Converter
| Dynamic Range | 123dB |
| THD + N | 0.0004 % |
Clock Specs
| Clocking System | 4th Generation Acoustically Focused Clocking 64-bit DDS Oven Controlled Crystal Oscillator |
| Clocking Stability | <+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF |
| Clock Aging | < 1 ppm per year |
| Clock Calibration | <+/_0.001 ppm |
| Atomic Clock Input | 10MHz @ 1Vpp, BNC |
| Sample Rates (kHz) | 32, 44.1, 48, 88.2, 96, 176.4, 192, 352.8, 384 |
| Clock Generators | 2 Independent Clock Generators |
| Varispeed | +/-200 cents + 12.246 % 10.910 % |
| Operating Temperature | 0-50ºC/32- 122ºF |
| Weight | 8 kg/17,64 lb |
| Dimensions (approx.) | Width: 483 mm/19" Height: 88 mm/3.47" Depth: 282 mm/11.1" |
| Power Supply | AC Universal input 95-245VAC 20 Watts Max Consumption |
