Item selected is discontinued (details below). Related products available now:

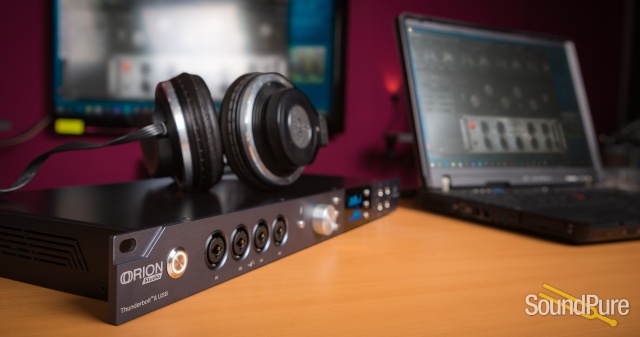

Antelope Audio Orion Studio, rev. 2017  From Antelope

32x32 Thunderbolt/USB Audio Interface with the very best A/D converter that Antelope has available for multichannel interfacing.

Antelope Audio

Manufacturer's Description from Antelope

ORION STUDIO OFFERS AN ARRAY OF LEGENDARY EQ AND COMPRESSOR EMULATIONS AND AURAVERB.

Thanks to our love for both analog detail and digital perfection you can now access not only legendary guitar amps and cabs, but a plethora of classic studio gear. Through a unique sampling technique for vintage gear modeling we have provided Orion Studio with the finest selection of hardware-quality audio effects, among which legendary EQ and compressor hardware plus our very own and extremely versatile AuraVerb reverb.



Orion Studio comes with full yet ever expanding list of Antelope Vintage FX models:

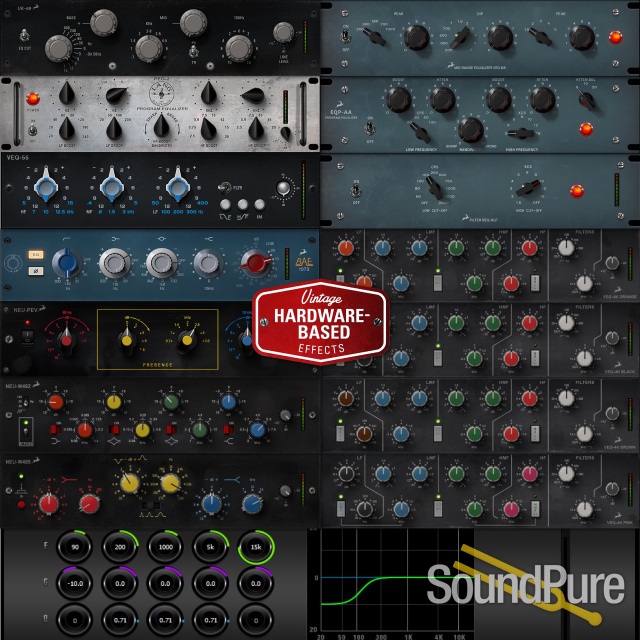

  • EQUALIZER LEGENDS: VEQ-STU 089, VEQ-STU 169, VEQ-STU 900, VEQ HA32C, BAE 1023, BAE 1084, NEU-W492, NEU-W495, VEQ-4K Black, VEQ-4k Brown, VEQ-4K Pink, VEQ-4K Orange, BAE-1073, VEQ-HLF, VEQ – 1A, VMEQ-5, LANG PEQ2, VEQ-55A, UK-69, NEU-PEV, INTEGRATED EQ

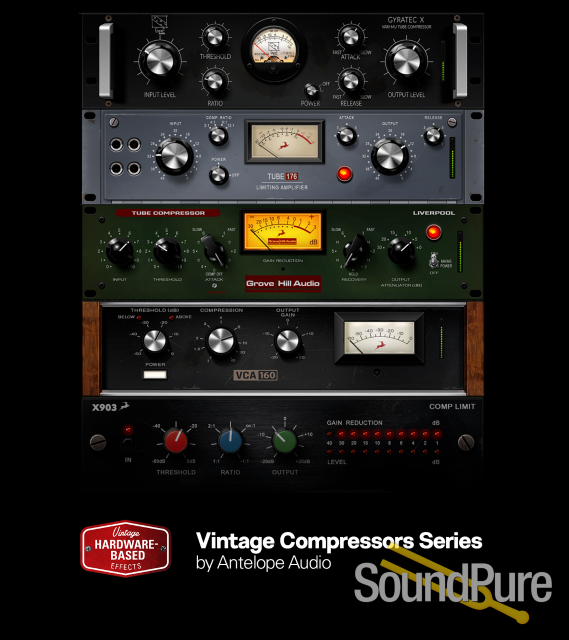

  • VINTAGE COMPRESSORS: X160, Tube176, X903, Gyratec X, Grove Hill Liverpool, ANTELOPE FEEDFORWARD COMPRESSOR, FET-A76

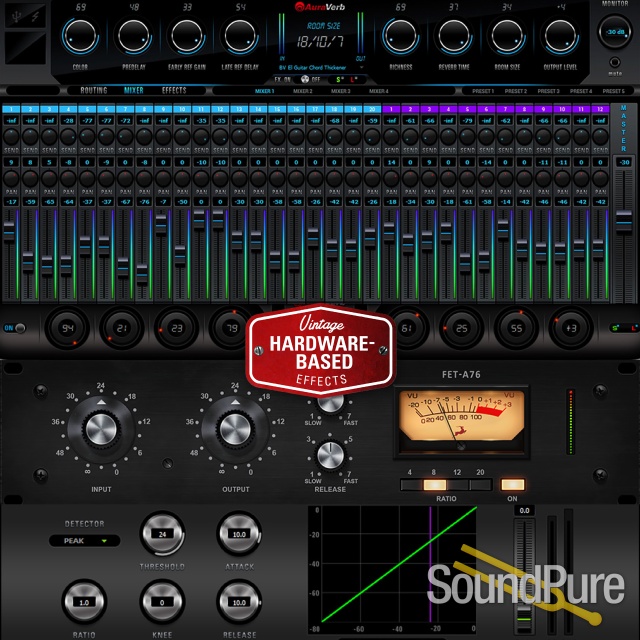

  • AURAVERB™:New Reverb Leveraging Unique Algorithms and Proprietary FPGA Chip for “Smooth and Clear” Sound

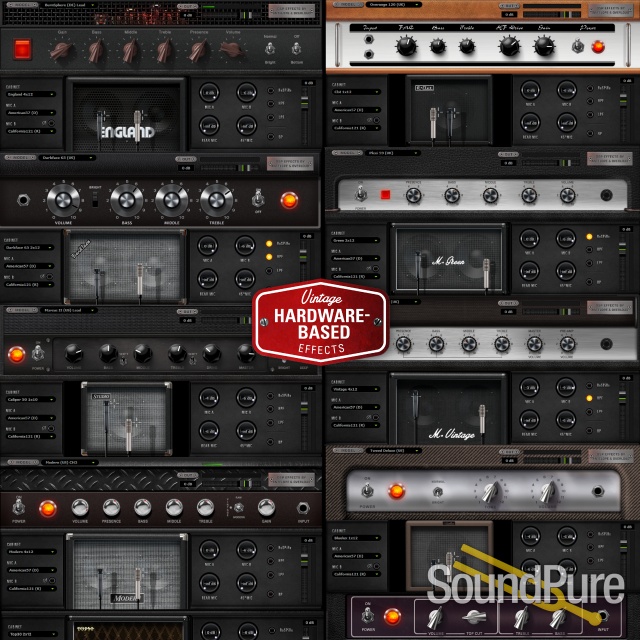

  • THE GUITAR CLASSICS:

Cabinets: Darkface 65 2x12, Top30 2x12, Green 2x12, Vintage 4x12, Green 4x12, Caliper50 1x10, Clst 1x12, England4x12, Modern 4x12, Bluelux 1x12.



Guitar Amps: Darkface 65 US, Top32 UK, Modern US, Plexi 59 UK, Rock 22.10 UK, Rock 75 UK, Marcus II US, Tweed, Deluxe US, Overange 120 UK, BurnSphere DE.

Mics: California121 Ribbon, Austria Gold 414, American57, German FET87.





Key Product Features :

  • Advanced AD converters, raising Orion Studio's dynamic range to 124 dB

  • New Carbon Grey Faceplate

  • 5 compressor models added, now 40+ FPGA FX

  • 12 Mic Pres, 16 Analog outs, 2 Reamps

  • A/B Mastering-grade Monitor Outputs

  • ADAT optical I/O (x 2), S/PDIF I/O

  • Flawless 4th Generation 64-bit clocking and unique analog circuitry

  • Controllable via multiple desktop and mobile apps

  • Thunderbolt and USB connectivity for MAC&Windows





ALL YOU NEED IN JUST 1U

Orion Studio fits Thunderbolt™ and USB connectivity, 12 mic pres and our renowned clocking in just 1U rack space.

Since its release in 2015 Orion Studio has become one of the biggest stars in the Antelope Audio line of ThunderboltTM & USB audio interfaces. And now we made it even better. With 12 Class-A Mic Pres make it’s one and only piece of gear you’ll need to record a full band and do it like a pro. For 2017 Orion Studio got brand new AD converters, raising its dynamic range to an industry best 124 dB and features superior low latency performance. Now coming in a gorgeous carbon grey faceplate, Orion Studio has a ton of new features inside its powerful Control panel and FPGA engine.

Just like Zen Tour and Goliath, Orion Studio features the full array of real-time FPGA powered vintage FX. This best-selling interface also includes Antelope’s traditionally stunning AD/DA conversion, powered by our very own, world-renowned 64-bit Acoustically Focused Clocking (AFC) technology for jitter management.



ORION STUDIO’S SECRET WEAPON

Custom FPGA will allow you to create and stream multiple complex mixes and process audio with zero latency.

Orion Studio’s secret weapon is the extremely powerful Field-Programmable Gate Array (FPGA) device. Its massive parallel processing capabilities are far ahead of DSP chips used in similar devices. Through smart algorithms, oversampling and custom-tweaked models, the FPGA provides the lowest latency possible, allowing you to create up to four independent, zero latency mixes. Those can be easily assigned to any output including the two separate headphone outs.



CONNECTIVITY GONE WILD

Orion Studio can work with any DAW on the market via Thunderbolt™ or USB.

Orion Studio’s FPGA powered ThunderboltTM and custom USB guarantee the lowest sound latency on the market. The device’s massive parallel processing capabilities allow fast, simultaneous streaming of multiple audio channels and instant effects processing. Thanks to the variety of digital and analog I/O, combined with the flexible routing matrix the device is easily connectable to various outboard gear.

Orion Studio offers: two pairs of monitoring outputs, 16 analog outs, 2 reamp outputs, plus 16 channels I/O via ADAT and 2 channels I/O on S/PDIF.



ALL THE EFFECTS YOU NEED

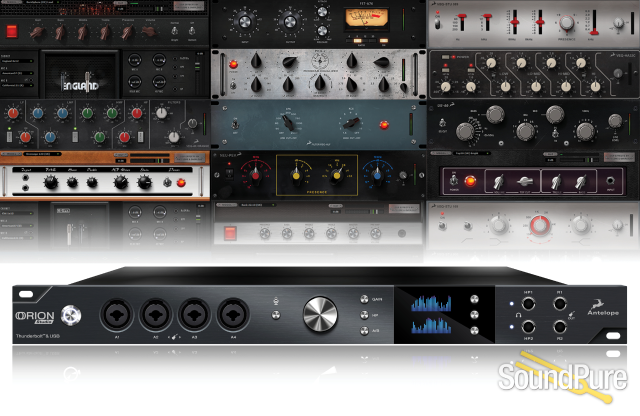

Enjoy the true sound of classic studio gear with Orion Studio’s real-time FPGA vintage FX.

Orion Studio comes with full yet ever expanding list of Antelope Vintage FX models. With 5 new compressor models you can now open up to 32 compressors at once, without losing any of your 40 EQ instances. This is a major advantage over DSP processing. All Antelope Audio FX can be used for real-time tracking, monitoring and are easily routed to work on a mix inside the DAW.

Antelope Audio’s custom FPGA makes Orion Studio the #1 audio interface for professional guitarists by being the perfect platform for our integrated vintage and contemporary guitar amp & cab simulations. Developed in collaboration with Overloud they bring precision and audio realism to a whole new level, allowing artists to experiment with multiple speaker configurations, mic placement and EQ settings. Our innovative RealModel technology allows us to vividly rebuild the true sound and behavior of classic analog gear. Playing and recording guitars has never felt so real!



ADVANCED REMOTE APPS

Device control as flexible as you can imagine

Orion Studio features an exciting new approach to control, including the game-changing Full Session Saving functionality. You’re now allowed to quickly save, load and share any routing, monitoring, and FX settings. These can be easily exchanged between studio facilities with Antelope Audio gear and will drastically enhance the studio workflow of any engineer, recordist or musician. A recently added Alternative Matrix View offers a detailed alternative to classic Antelope drag and drop Routing.

You can control and use as many Orions as you can connect with our new S/N selector inside the panel and even open multiple panels on the same computer. Orion Studio offers dynamic device management from various access points, including multiple computers in the same network.

An intuitive iOS / Android mobile app gives you even greater freedom by granting full mic pres control from a smartphone or tablet.



Antelope Audio

About Manufacturer

ANTELOPE AUDIO
Digital clarity | Analog warmth
Antelope Audio has packed more then 20 years’ experience in digital audio, clocking and analog circuit development. We are dedicated to helping people achieve high-definition sound both in the recording studio and home environment.
Our 20 years in the industry brought us to the development of our 4th generation of Acoustically Focused Clocking (AFC) jitter management algorithm, responsible for our flawless clocking. You probably know it from Antelope’s signature crystal-based master clocks, that clock even our competitors products.

Specifications

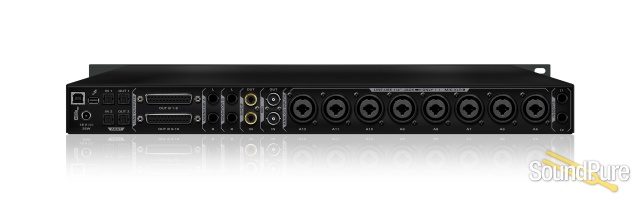

ANALOG

Analog Inputs
4 x Mic / Line Instrument on XLR combos on the front
8 x Mic / Line on XLR combos on the rear

Analog Inserts
2 x Inserts on TRS (inputs 1,2)

Analog Outputs
16 x Lines on 2 x DB25 (16 channels Line Out)
2 x Stereo Monitor out on TRS (4 channels, only 1 active pair at a time)
2 x Stereo Headphone outs on TRS (4 channels)
2 x ReAmp outs on TRS (2 channels)

D/A Monitor Converter
Dynamic Range: 129 dB
THD + N: -108 dB

A/D Converter
Dynamic Range: 124 dB
THD + N: -112 dB

D/A Converter
Dynamic Range: 120 dB
THD + N: -107dB

Mic Preamp
Gain: 0,10 – 65 dB
THD + N: -108 dB



DIGITAL

Digital Inputs
2 x ADAT (up to 16 depending on the sample rate)
1 x S/PDIF

Digital Outputs
2 x ADAT
1 x S/PDIF

USB I/O
USB 2.0 Hi-Speed;
Data stream up to 480 Mbits/192kHz, 24 channels I/O, Type B

Thunderbolt™ I/O
1 x Thunderbolt, 32 channels I/O



CLOCKING

Word Clock Input
1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz

Word Clock Outputs
1 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz

Clocking System
4th Generation Acoustically Focused Clocking
64-bit DDS
Oven Controlled Crystal Oscillator

Clocking Stability
<+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF

Clock Aging
< 1 ppm per year

Clock Calibration
<+/-0.001 ppm

Sample Rates
32, 44.1, 48, 88.2, 96, 176.4, 192 (kHz)



OTHER

Operating Temperature
0-50°C, 32-122°F

Weight
3.1 kg/ 6.83 lbs ( approx )

Dimensions (Approx)
Width: 483 mm / 19”
Height: 44 mm / 1.7”
Depth: 220 mm /8.6”

Electrical specs
DC Universal input: 18V
Power Consumption: 25 Watts Max

In the box
Orion Studio – Thunderbolt™ and USB AD/DA Interface with 12 mic pres
Owner’s Manual
Warranty Card
1 DC Power supply
1 USB cable



System Requirements



WINDOWS

OS: Windows 7/8/8.1/10

Disk Space: Minimum 512 MB available disk space

USB: 1x USB 2.0 Port

Required USB bandwidth: 80%-90%

CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency

Memory (RAM): 4GB Minimum (8GB or more Recommended)



MAC

OS X: 10.9/10.10/10.11/10.12 (El Capitan 10.11.6 Recommended)

Disk Space: Minimum 512 MB available disk space

USB: 1x USB 2.0/3.0 Port

Thunderbolt: 1x Thunderbolt/USB-C Port

Required USB bandwidth: 80%-90%

Memory(RAM): 4GB Minimum (8GB or more recommended)

CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)



Additional Info: Internet connection required for product activation.

Downloads

Action

Name

Description

Rev2017 manual
