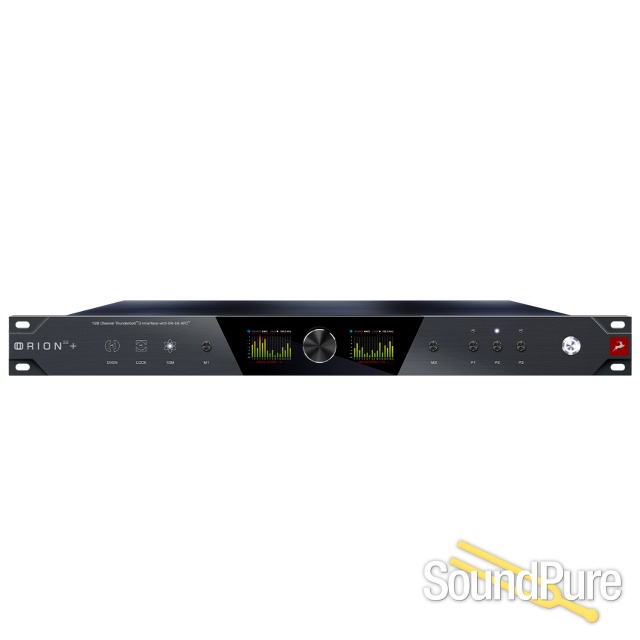

Antelope Audio Orion 32+ Gen 4  From Antelope

128-Channel Thunderbolt/USB Audio Interface with 64-bit AFC™

Antelope Audio

$3,695.00

No Sales Tax in OH!
No Sales Tax in 45 States. Learn More.

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax collected in OH.

Close
Sales Tax
Sales tax is only collected in the following states: CA, FL, NC, SC, TN and VA. If your state is not listed, sales tax will not be collected on your order.
Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $84/mo.

What We Think

Download the Rebate form at the bottom of the page!

Manufacturer's Description from Antelope

For over a decade now the Orion 32 line of interfaces has been revolutionizing the world of professional audio recording and production. The latest revision of this iconic 1RU studio centerpiece steps up the game by taking the best of its predecessors and adjusting it to the ever-growing needs and standards of the industry. Orion 32+ Gen4 incorporates the latest Antelope Audio tech, drastically boosting the unit’s potential.

Major Conversion Performance Improvements

D/A Monitor Converter

  • Dynamic Range: 130 dB
  • THD + N: -115 dB

D/A Converters

  • Dynamic Range: 130 dB
  • THD + N: -115 dB
  • DC coupled

A/D Converters

  • Dynamic Range: 122 dB
  • THD + N: -116 dB
  • DC coupled

Line Input / Output levels

  • 24dBU max

Key Product Features

  • 32×32 channels of DC coupled analog I/O plus dedicated stereo monitor output
  • 128 I/O channels over Thunderbolt™ 3 or 32ch via USB, at up to 192kHz
  • 128 I/O channels over optical MADI at up to 48kHz
  • High-performing conversion with up to 130dB dynamic range
  • Acclaimed 4th Generation AFC™ 64-bit clocking and jitter management
  • Optional multi-channel, Atmos-ready monitoring calibration system built-in
  • Software control panel with powerful preset system, monitoring pop-out widget and customizable signal routing matrix
  • Additional ADAT and S/PDIF connectivity
  • macOS & Windows compatible over both Thunderbolt™ and USB

STANDARD-SETTING CONVERSION AND CLOCKING

Antelope Audio interfaces are globally renowned for their industry-leading conversion and clocking and Orion 32+ Gen4 gives you the latest Antelope technology. Its AD/DA converters are capable of achieving up to 130dB dynamic range, ensuring Gen4 its leading position among 1U studio centerpieces. Antelope Audio’s signature 64-bit Acoustically Focused Clocking technology powers the high-performing conversion and the unit’s two Word Clock outputs are there to keep your whole studio in line. Additionally, the available 10MHz input is compatible with the cream of the crop of clocking – the unrivaled 10M & 10MX Atomic Clocks by Antelope Audio.

128-CHANNELS OF AUDIO VIA THUNDERBOLT™ AND MADI

Orion 32+ Gen4 can stream twice as many channels over Thunderbolt™ as its predecessor and has twice as much MADI connectivity, now at 128 channels for both. These significant upgrades allow for up to four units to be daisy-chained for 128 channels of AD/DA via a single computer connection. This makes the unit a top choice for large recordings, live sound applications, complex post-production setups and broadcast facilities. It’s a preferred companion to large mixing consoles, hardware effects processing chains, analog summing boxes, reel-to-reel setups, hardware synthesizers and pretty much anything else you can throw at it.

EMBRACE THE FUTURE OF AUDIO PRODUCTION

Orion 32+ Gen4 is compatible with the latest Antelope Audio Atmos-ready surround and immersive audio monitoring system. The integrated platform supports over 23 audio formats from stereo to Dolby Atmos 9.1.6 and offers precise speaker and room calibration tools. The system’s intuitive monitoring controls and fast preset recall functionality are designed to increase productivity. It is available as an optional upgrade for the Orion 32+ Gen4. As a physical extension of the system, the compatible Antelope MRC hardware controller provides streamlined and tactile controls that are key for effortless yet advanced monitoring.

REDESIGNED WORKFLOW FOR IMPROVED PRODUCTIVITY

Orion 32+ Gen4 comes not only with an updated look and drastically boosted hardware but with a redesigned Software Control Panel for an even smoother workflow. It now features a powerful preset recall system complete with signal routing, level adjustments, mixer settings and monitoring controls, among others. A handy monitoring pop-out widget has been introduced for hands-on output level control and preset recall, featuring an always-on-top function.

The unit’s signal routing matrix is now fully customizable with convenient patching and less complexity in mind.

EASY INTEGRATION IN ANY SETUP

Orion 32+ Gen4 is more than generous when it comes down to its available connectivity options. The unit is designed for quick and effortless integration in a variety of studio configurations – be that Thunderbolt or USB based. The interface is compatible with both Windows and macOS systems and with extra options such as its ADAT port is guaranteed to fit all possible applications – from recording, mixing, interfacing, and conversion to being used as an advanced patch bay or monitor controller. Orion 32+ Gen4 is also ready to become your modular synth’s best friend as it features DC Coupled I/O allowing you to send CV signal from your DAW of choice straight up to your hardware instruments.

Antelope Audio

About Manufacturer

ANTELOPE AUDIO
Digital clarity | Analog warmth
Antelope Audio has packed more then 20 years’ experience in digital audio, clocking and analog circuit development. We are dedicated to helping people achieve high-definition sound both in the recording studio and home environment.
Our 20 years in the industry brought us to the development of our 4th generation of Acoustically Focused Clocking (AFC) jitter management algorithm, responsible for our flawless clocking. You probably know it from Antelope’s signature crystal-based master clocks, that clock even our competitors products.

Specifications

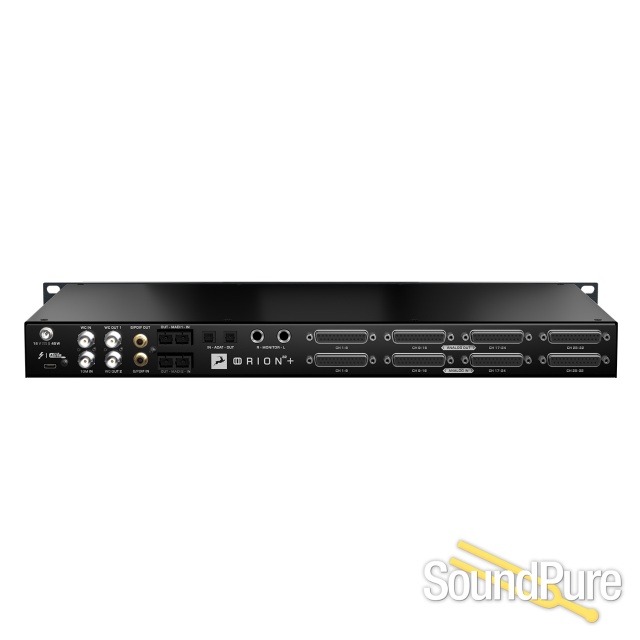

ANALOG

  • Analog Inputs
    • 4 x D-SUB 25 (32 channels total), +24dBu max
  • Analog Outputs
    • 4 x D-SUB 25 (32 channels total), +24dBu
    • 2 x Monitor Outs on TRS 1/4 Jacks
  • D/A Monitor Converter
    • Dynamic Range: 130 dB (A-Weighted)
    • THD + N: -115 dB
  • A/D Converters (Line In)
    • Dynamic Range: 122 dB
    • THD + N: -116 dB
    • DC coupled
  • D/A Converters (Line Out)
    • Dynamic Range: 130 dB
    • THD + N: -115 dB
    • DC coupled

DIGITAL

  • Digital Inputs
    • 2 x Fiber Optic MADI (up to 128ch)
    • 1 x ADAT (up to 8ch)
    • 1 x S/PDIF
  • Digital Outputs
    • 2 x Fiber Optic MADI (up to 128ch)
    • 1 x ADAT (up to 8ch)
    • 1 x S/PDIF
  • Thunderbolt™
    • 1 x Thunderbolt™ 3 (128 channels I/O)
  • USB I/O
    • Same connector as Thunderbolt™ port
    • USB 2.0 Hi-Speed; Data stream up to 480 Mbps/192kHz,
    • 32 channels I/O, Type C

CLOCKING

  • Word Clock Input
    • 1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz
  • Word Clock Outputs
    • 2 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz
  • Atomic Clock Input
    • 1 x 10M Input @ 75 Ohms 1Vpp on BNC
  • Clocking System
    • 4th Generation Acoustically Focused Clocking
    • 64-bit DDS
  • Sample Rates (kHz)
    • 32, 44.1, 48, 88.2, 96, 176.4, 192

OTHER

  • Operating Temperature
    • 0-50°C, 32-122°F
  • Weight
    • 3.4kg / 7.4lbs
  • Dimensions
    • Width: 483 mm / 19”
    • Height: 44 mm / 1.73”
    • Depth: 280 mm / 11”

In the box:

  • Orion 32+ Gen4 - 32-channel AD/DA Interface with AFC™ Clocking Technology
  • Getting started guide
  • Power adapter
  • USB cable
