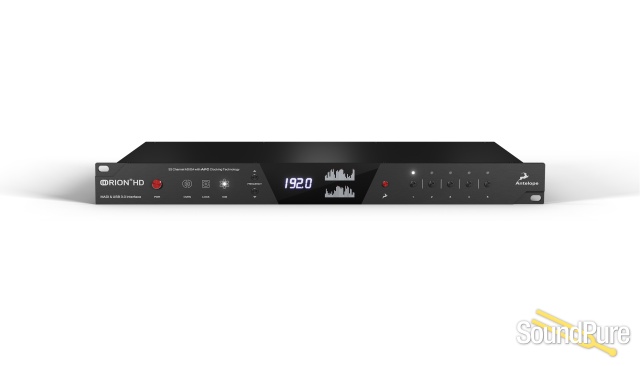

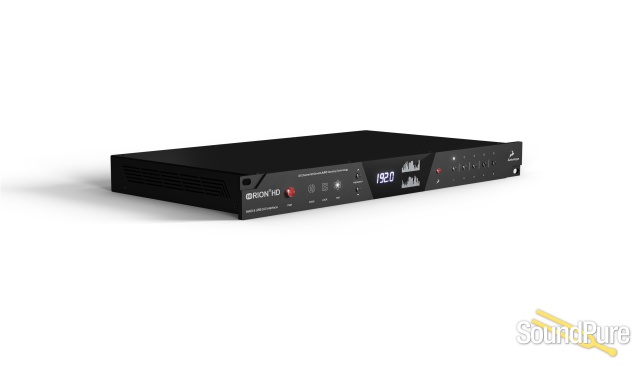

Antelope Audio Orion 32 HD Gen 3  From Antelope

64 channel HDX & USB 3.0 Audio Interface

Antelope Audio

$3,995.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $90/mo.

Manufacturer's Description from Antelope

ORION32 HD INCLUDES A FINE SELECTION OF FREE HARDWARE-BASED VINTAGE AFX

The proprietary FPGA is the heart and soul of all Antelope Audio interfaces and is included inside Orion 32 HD. Allowing you to use Antelope’s integrated and ever-growing library of hardware-based vintage EQs, compressors and of course AuraVerb.



FORGET ABOUT LATENCY

Stream 64-channels of audio via HDX & USB 3.0

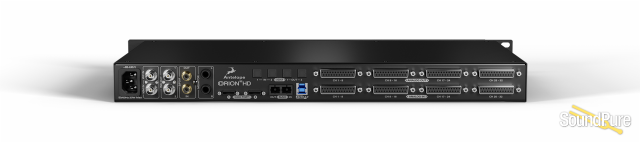

Orion32 HD is the newest addition to the Orion family. Compatible with any DAW on the market via HDX port or USB 3.0, this new Pro Tools HD and Native interface offers everything Antelope Audio stands for. Zero latency Monitoring, I/O streaming of 64-channel 192 kHz audio, Antelope’s industry-leading clocking, and pristine AD/DA conversion. Orion32 HD’s analog I/O is handled by 8 DB25 connectors, accompanied by MADI, ADAT and S/PDIF connectivity.



Orion32 HD features a fine selection of vintage FX powered by Antelope Audio’s innovative Field Programmable Gate Array (FPGA) technology bringing modeling of legendary vintage gear to a whole new level.



64 CHANNELS I/O

Simultaneous streaming of 24-bit, 192 kHz audio via HDX or USB 3.0 and additional connectivity on MADI, ADAT, S/PDIF, 8x DB25



SUPREME CLOCKING

Powered by Antelope’s 64-BIT Clocking Technology with 2 Word Clock or Loopsync Outs, Word Clock or LoopSync & Antelope 10M/10MX Atomic Clock Inputs



POWERFUL FPGA

Custom FPGA for authentic modeling of vintage gear, maintaining multiple mixers with real-time effects processing and measuring only 2 samples of inaudible latency



MASTERING GRADE MONITOR OUTS

High Monitoring DA included using chips from our popular Pure2 Mastering Converter



SOFTWARE CONTROL

Routing, mixing, real-time effects processing via OS X & Windows compatible app



QUIET OPERATION

Housed in an efficient “green” design with no fans inside, means no need for expensive machine rooms or iso racks



FAST AND FURIOUS

Smooth mixing and mastering-grade monitoring

Like its predecessors, Orion32 HD is a versatile audio interface, which works like a charm with any DAW on the market. It enables you not only to stream an astounding 64 channels of audio when tracking, but also allows for multiple monitor mixes. When monitoring, the sound is pleasing, combining transparent detail in a very natural way, like all things Antelope. Independent software mixers, integrated hardware-based FPGA vintage effects, it’s all there, with more connectivity options than ever.



CLOCKING LIKE WE LOVE IT

Perfect sound through flawless clocking

The unbeatable clocking accuracy of Orion32 HD is provided by Antelope’s renowned 64-bit Acoustically Focused Clocking (AFC) jitter management technology. Antelope’s clocking is known the world over with a 20 year reputation for excellence in both stability and sonic improvement. Transients will shine like never before, you’ll achieve a stereo image with incomparable depth and detail.



And that sparse and crystal clear high-end… Yes, we’re talking sonic perfection just like in our game-changing OCX HD and Trinity master clocks.



FPGA POWERED

The proprietary FPGA is the heart and soul of all Antelope Audio interfaces

The exquisite collections of Vintage EQ’s include authentically models of Lang PEQ-1, BAE 1073, 1084, 1023, UK-69 and many other classic British and German vintage units. Vintage Compressors begin with the life-like model of the FET76 and many more are soon to be available, FREE to all new and registered users of Antelope’s growing line of world class interfaces.



INTUITIVE SOFTWARE CONTROL

Your wildest routing dreams come true with the Orion 32 HD desktop app

Orion32 HD is fully controllable via its intuitive OS X and Windows compatible desktop app. Its color-coded routing matrix now features an alternative view making routing a piece of cake. The interface can be also accessed from multiple computers on the same network. With freely movable and resizable panels you can maximize the most out of your computer monitor space, perfect when working on huge projects, scoring to picture and on multiple screen set ups.



Antelope Audio

About Manufacturer

ANTELOPE AUDIO
Digital clarity | Analog warmth
Antelope Audio has packed more then 20 years’ experience in digital audio, clocking and analog circuit development. We are dedicated to helping people achieve high-definition sound both in the recording studio and home environment.
Our 20 years in the industry brought us to the development of our 4th generation of Acoustically Focused Clocking (AFC) jitter management algorithm, responsible for our flawless clocking. You probably know it from Antelope’s signature crystal-based master clocks, that clock even our competitors products.

Specifications

ANALOG

Analog Inputs

4 x DB 25 (32 channels total), +24 dBu max



Analog Outputs

4 x DB 25 (32 channels total), +24 dBu max

2 x Monitor Outs on TRS 1/4 Jacks, +24 dBu max



D/A Monitor Converter

Dynamic Range: 129 dB

THD + N: -108 dB



A/D Converter

Dynamic Range: 120 dB

THD + N: -110 dB



D/A Converters

Dynamic Range: 120 dB

THD + N: -107 dB



DIGITAL

Digital Inputs

1 x Fiber Optic MADI (up to 64 channels)

2 x ADAT (up to 16 channels)

1 x S/PDIF



Digital Outputs

1 x Fiber Optic MADI (up to 64 channels)

2 x ADAT (up to 16 channels)

1 x S/PDIF



USB I/O

USB 3.0 – 64 channels I/O up to 192kHz,

USB 3.0 Type B connector



HDX

2 x mini HDX connectors for direct Pro Tools connection

32 Channels I/O each ( total of 64 channels)



CLOCKING

Word Clock Input

1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz



Atomic Clock Input

1 x 10M Input @ 75 Ohms 1Vpp on BNC



Word Clock Outputs

2 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz



Clocking System

4th Generation Acoustically Focused Clocking

64-bit DDS

Oven Controlled Crystal Oscillator



Clock Stability

<+/-0.02 ppm, oven controlled at 64.5ºC/ 148.1ºF



Clock Aging

< 1 ppm per year



Clock Calibration

< +/-0.001 ppm



Sample Rates (kHz)

32, 44.1, 48, 88.2, 96, 176.4, 192



OTHER

Operating Temperature

0-50°C, 32-122°F



Weight

3.6kg / 8.0 lb ( approx )



Dimensions (Approx)

Width: 483 mm / 19”

Height: 44 mm / 1.75”

Depth: 270mm / 10.63″



Electrical specs

AC Universal input: ~95-245 V

Power Consumption: 30 Watts Max



In the Box

Orion32 HD Audio interface

Owner’s Manual

Warranty Card

1 USB 3.0 Cable

AC Power Cord



SYSTEM REQUIREMENTS

WINDOWS

Windows OS: Windows 10

Disk Space: Minimum 512 MB available disk space

USB: 1x USB 3.0 Port

CPU: Intel or AMD equivalent CPU with at least 2GHz operating frequency

Memory (RAM): 4GB Minimum (8GB or more Recommended)



MAC

MACOSX: 10.11 and above (High Sierra recommended)

Disk Space: Minimum 512 MB available disk space

USB: 1x USB 3.0 Port

Thunderbolt: 1x Thunderbolt/USB-C Port

Memory(RAM): 4GB Minimum (8GB or more recommended)

CPU: Intel Core 2 Duo (Minimum) Intel Core i3 ™ or higher (Recommended)



Additional Info: Internet connection required for product activation.
