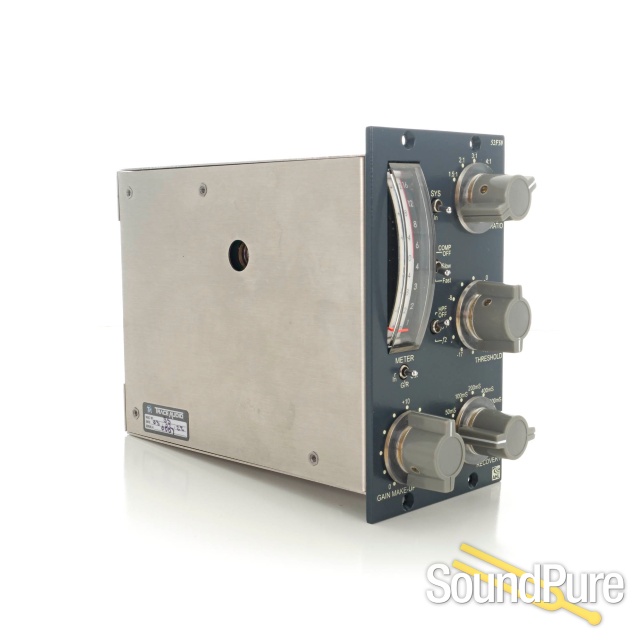

AML 52F50 500-Series Compressor - Used  From API

The 52F50 Compressor module is intended for professional application use in the API 500 series VPR racks and Lunchbox.

The 52F50 is a double wide 500 series compressor based on the vintage Neve 2254, minus the limiter section. The comp uses a Carnhill input transformer, diodes, a interstage transformer, a BA Neve style amplifier and Carnhill output transformer. The comp has a mighty warm, creamy and thick sound; great for warming up single source, but when using a pair in stereo they also excel when used on a group or stereo buses.

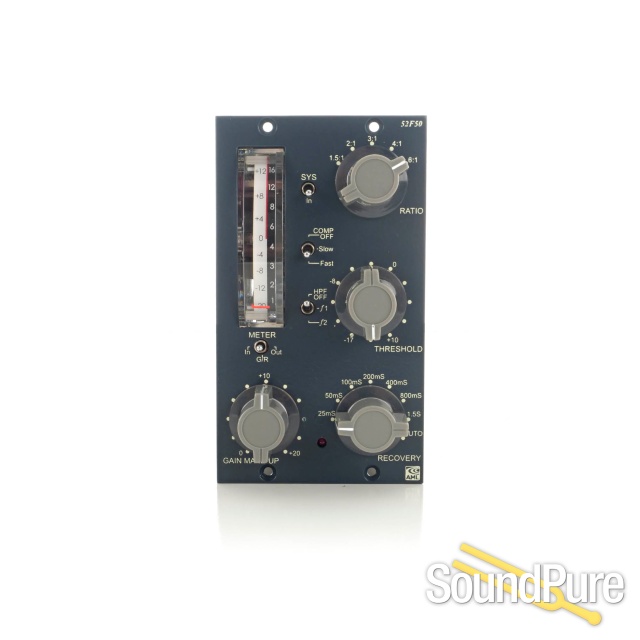

Description of Front Panel:

• System Bypass/In Toggle Switch

• Compressor Off/Slow/Fast Attack Speed Toggle Switch

• Side-Chain Filter Frequency Toggle Switch

• Meter Select: Input/Gain Reduction/Output Toggle Switch

• Compressor Ratio 1.5:1 / 6:1 Grayhill Rotary Switch

• Compressor Threshold -17/+10 Grayhill Rotary Switch

• Compressor Release Time 25mS/1.5mS/Auto Grayhill Rotary Switch

• Compressor Make-Up Gain 0/+20 Grayhill Rotary Switch

Features:

• Input: AML/Carnhill transformer balanced (AML-18-003/VTB9045M)

• Interstage: AML/Carnhill transformer balanced (AML-18-002/VTB9045M)

• Output: Carnhill transformer balanced (Classic VTB2569 full size output transformer)

• Vintage Style VU/Gain reduction meter

• Grayhill Stepped Rotary Switch

• Fast/Slow Attack

• HPF Sidechain

• Stereo Link through XLR

• Double Wide (take 2 spaces)

• Vintage Style Diode Bridge Compressor
