Sound Pure's Take
There is a Jensen Jet 12" upgrade speaker in this amp that really brings it to life! If you prefer the original speaker (Eminence Patriot), that can be re-installed. Your choice!
There are many kit amps on the market by Allen. This is not a kit!! This is a rare piece actually built by Allen himself! The quality is insanely good! The amp looks new and sounds like a dream.
You won't find many deals on this brand out there! Call or Email SoundPure, today
From Other (Miscellanous Used/Vintage/Consign)
ALLEN AMPLIFICATION offers nine vintage "boutique" all-tube hand-wired guitar combo amplifiers or heads and matching speaker cabinets. Inspired by those wonderful blackface and brownface American circuits from the 60s, these amps provide that proven tone and reliability in a brand new amp, with a few new modern features for today's demanding players.
All Allen amps feature a stainless-steel chassis, US made paper-wound power and output transformers, Switchcraft jacks and Carling switches. We use the best current production tubes and specially voiced speakers to ensure great sound and reliability. Many speaker configurations are offered for that perfect set up. Most models will accept two different types of power tubes for different power ratings.

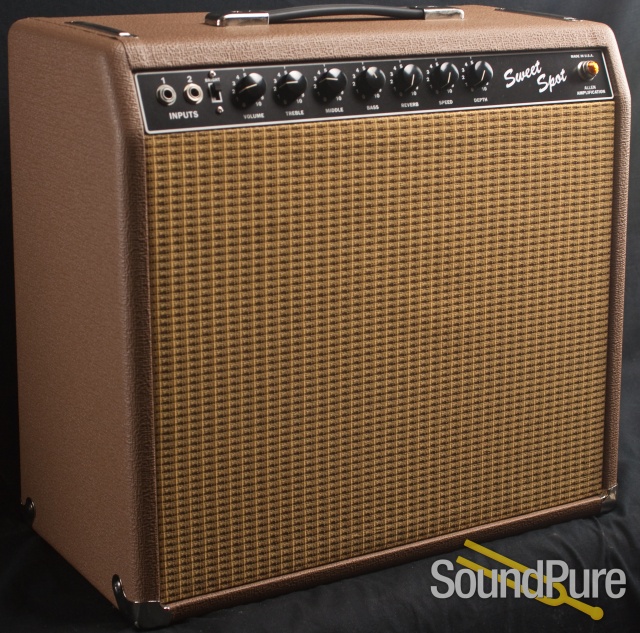

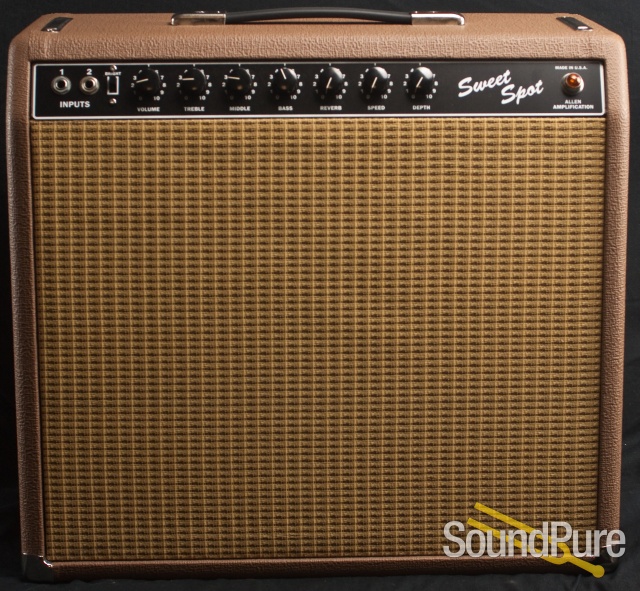

Sweet Spot Brown/Wheat 1x12 Combo |
|
|
Output Power |
18 watts (6V6 power tubes) or 25 watts (6L6 power tubes). |
|
Tube Compliment |
(4) 12AX7s, (2) 6V6 or 6L6 and (1) GZ34. |
|
Class |
AB push-pull with adjustable fixed bias. |
|
Equalization |
Bass, Treble and Middle controls plus BRIGHT switch. |
|
Reverb |
All-tube driven 3-spring medium-delay Accutronics tank in a heavy vinyl bag with shielded cables. |
|
Chassis |
18 gauge non-magnetic stainless steel with spot welded corners. |
|
Circuitry |
Hand-wired point-to-point with tinned solid-core PVC wiring, G-10 glass epoxy circuit board with brass eyelets. Carbon film resistors, Mallory M150 and CDM silver mica tone capacitors, Switchcraft jacks, Carling switches, and U.S. made molded type sockets. |
|
Transformers |
Cool and quiet running Allen TP25 160ma power transformer, TO30D upgrade paper bobbin interleaved winding output transformer, TR reverb transformer and TC choke are all U.S. made. |
|
Topology |
Design is loosely based on the Fender Princeton Reverb™ but with many enhancements such as a standby switch, middle control, bright switch, choke filtered power supply, filter capacitor bank, fixed bias phase inverter, deeper vibrato, adjustable power tube bias and bias measurement jacks. |
|
Cabinet |
Finger-jointed pine with black Tolex covering and black/white/silver sparkle grill cloth. Tolex covered rear screw-on panels, rubber cushioned chrome glides (feet), black rubber (steel reinforced) carrying handle with chrome caps and screws and bottom chrome corners. |
|
Speaker |
Eminence Copperhead 10" in the 1x10 combo. Eminence Red, White and Blues 12" in the 1x12. Eminence Big Ben 15" speaker in the 1x15. |
|
Special Features |
Bright switch and vibrato. Rear bias measurement jacks with adjustment pot, combination middle/raw control, extension speaker jack, choke-filtered power supply, 5 capacitor filtering bank with stainless-steel cover, fixed bias phase inverter (Paul C mod) and insulated input jacks for lower hum. |
|
Size and Weight |
|
