A Designs Reddi V2  From A Designs

2 Channel version of the renowned, all-tube REDDI D.I. Box, with custom-wound CineMag transformers and unbelievable sound based on the Ampeg B-15.

A Designs Audio

$1,550.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $35/mo.

Manufacturer's Description from A Designs

All-tube direct box with custom output transformers.

Used by Top Musicians Worldwide



The number of A-Designs REDDI's in use on stages and studios all over the world is nothing short of staggering.

Quite simply, there is no better sounding way to convert an instrument, or line level signal, to XLR.

The same tone and sound from the REDDI is now available in a dual mono 2RU rack mount version.  Designed with the help of top studio engineers and bass players, REDDI-v2 has been widely praised by engineers and musicians all over the world as the best-sounding DI solution on the market today.

It is important to note that the REDDI-v2 is not a high-gain device! Its gain structure has been painstakingly engineered to avoid the slightest compromise in sound quality. Inspired by the glorious sound of the Ampeg B-15 tube bass amp, the REDDI-v2 6N1-P tube-driven amplifier feeds signal directly into a hefty custom output transformer by Cinemag – a key component to providing a harmonically rich tone. The REDDI-v2's extremely wide frequency range (20Hz to 60kHz) prevents in-band phase shift, resulting in outstanding detail and realism. Another major benefit of its wide bandwidth is the prevention of LF phase shift by maintaining a linear response extending below the audible bass range, insuring a full, natural sound.

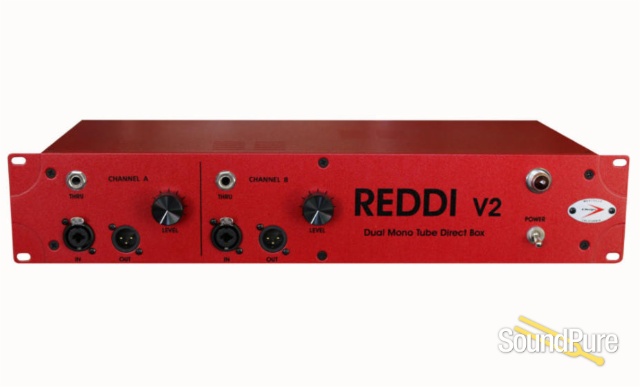

The REDDI-v2's distinctive bright red steel chassis sports 2 front-panel Neutrik XLR/1/4” combo input jacks, 2 balanced XLR outputs, and 2 1/4” thru-puts, for sending signal to a bass amp – not only useful for live applications, but also for simultaneously recording direct and miked amp tracks in the studio.  A 0-16dB-Level control and a Red LED power indicator complete the front panel controls. The back panel contains a heavy-duty toggle switch for ground lift, along with the IEC power outlet.

The REDDI-v2 all-tube circuitry will enhance the character of any electrified instrument that runs through it -- not just bass -- but stereo keyboards, as well. Plug the pickup of an acoustic guitar through REDDI-v2 to add depth and fullness to its tone.  Capture and improve all the richness and life of an electric piano or analog synthesizer. Warm up sterile sounding digital keyboards or drum machines by strapping a REDDI-v2 across their outputs – for stereo!  The uses are endless.

A Designs Audio

About Manufacturer

The A Designs objective is to provide effective extraordinary-sounding solutions with solid technology. They are quickly becoming one of the most respected boutique manufacturers of audio and production tools, at a reasonable price. A Designs Audio brings a combined total of over 60 years in engineering, marketing and sales/customer service experience. Now our firm brings you pro audio technology that is among the best in the business at affordable prices. Their product lines are field tested by professionals in "real-world" working environments and are put through rigorous tests. This assures the dependability and reliability you require in installations and working environments. They understand the demands placed upon you when providing installations or giving live performances. The last thing you should worry about is the extremely high costs of conducting business. There are other factors that make your work highly demanding. The bottom line is that A Designs provides the tools you need for a job well done....and within budget!

Specifications



All-tube direct box with custom output transformers.
Ultra wide frequency range (20Hz-60kHz).
Neutrik input connector, balanced XLR out, and 1/4'' thru jack.
Inspired by the Ampeg B-15.
Clean and airy high end, warmth, transparency, and ultra high-quality sound.
Level control.
Ground lift.
Ultra bright blue LED on/off lamp.
Zero-feedback loop design.
Massive, custom-wound transformers.
6N1P tube.
Low-Z, transformer-balanced output.
Frequency Response 20Hz - 60kHz.
Input impedance: 1M ohm.
Gain range: 16dB.
Noise (EIN): -126dB.
Output impedance: 600 ohm.
Maximum level: +22dBu.
Distortion THD: > .08 @ 1kHz.
Power Requirements: 100/120/230VAC - 42W.
Dimensions (W x H x D) 19'' x 3-1/2'' x 10-1/2''.
Weight 13 lbs. (4.54 kg.)
