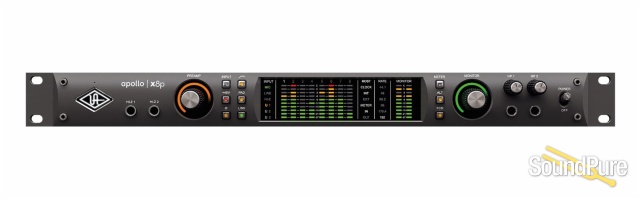

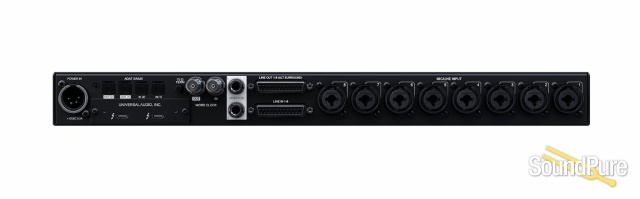

Universal Audio Apollo x8p Thunderbolt 3 Interface  From UA

Elite Audio Conversion with Eight Unison Mic Preamps, HEXA Core Processing, and Surround Sound.

Universal Audio

$3,399.00

Retail:  $4,249.00

Free Plug-Ins!

Included: Neve 1073 Preamp & EQ Collection, API Vision Channel Strip Collection, Manley VOXBOX Channel Strip, Antares Auro-Tune Realtime Advanced, UA 175B & 176 Compressor, Precision De-Esser, Precision Limiter and Galaxy Tape Echo. A $2042 Value!

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
In Stock!
Ships immediately after order processed!
Payments as low as $77/mo.

Manufacturer's Description from UA

Apollo x8p allows music engineers, producers, and project studios to track, overdub, and mix with elite-class A/D and D/A conversion, HEXA Core UAD plug-in processing, Dual-Crystal clocking, and 7.1 surround sound monitoring — all in a sleek rackmount Thunderbolt 3 audio interface for Mac or Windows.

Built upon UA’s 60-year heritage of audio craftsmanship, this 18 x 22 interface laps the competition with eight Unison™-enabled mic preamps, all-new HEXA Core processing — yielding 50% more DSP for running UAD Powered Plug-Ins in real time — plus it includes LUNA Recording System, giving you a fully‑integrated music production application.



  • Record with elite-class A/D and D/A conversion — nearing the widest dynamic range and lowest noise available, at any price
  • Mix with powerful HEXA Core processing, featuring 6 UAD DSP chips for running more UAD Powered Plug-Ins in real time
  • Track through 8 Unison-enabled mic preamps — with fully authentic emulations from Neve,® API,® Manley,® Helios,® and more
  • Includes LUNA Recording System — a fully-integrated and inspiring music production application



Elite-Class A/D and D/A Conversion

With thousands of hit songs and hundreds of Grammy-winning albums under their belt, Apollo interfaces are no strangers to tracking stellar-sounding records. To improve on the previous generation Apollo interfaces’ class-leading audio conversion, UA engineers obsessively auditioned the latest A/D and D/A converters — ultimately pairing elite-class 24-bit/192 kHz converters with all-new analog circuitry for an ultra-pristine signal path.

The Apollo X series also introduces new Dual-Crystal clocking — featuring dedicated crystals for 44.1/88.2/176.4k and 48/96/192k sample rates — resulting in stunningly low jitter, measured at less than 10 picoseconds. This translates into pure, artifact-free recordings and solid stereo imaging you can trust.

With 129 dB dynamic range and -119 dB THD+N, Apollo x8p’s open, natural sound rivals any dedicated high-end converter on the market — regardless of price — and is the perfect starting point for applying UAD processing.



Realtime UAD HEXA Core Processing

Apollo x8p features new HEXA Core processing, with six DSP chips and 50% more UAD plug-in processing power than previous Apollos. This lets you run more UAD plug-ins, whether you’re tracking in real time with channel strips from Neve, Manley, or API, or running high UAD plug-in counts when mixing in your DAW.

From the tube warmth of Pultec EQs on guitars to the musical tube limiting of the LA-2A on vocals, or the pump of a genuine 1176 or Fairchild 670 tube compressor on drums, your recordings will take a giant leap forward with a rich, three-dimensional analog sound that UAD plug‑ins provide.



Unison Technology: The Genuine Sound of Neve, API & Manley Preamps

Perfect for engineers, producers, and project studio owners, Apollo x8p features eight Unison-enabled mic preamps, letting you track large projects through exacting mic preamp emulations from Neve, API, Manley, Helios, SSL, and Universal Audio. A Universal Audio exclusive, Unison technology nails the tone of these sought-after tube and solid state mic pres — including their input impedance, gain stage “sweet spots,” and the component-level circuit behaviors of the original hardware.

The secret to Unison is its hardware-software integration between Apollo’s mic preamps and its onboard HEXA Core DSP Acceleration. Simply place a Unison preamp plug-in on your mic input in Apollo Console software, and it physically reconfigures the Apollo interface's impedance — so you can tap into the classic sounds of the world’s most recorded mic preamps.



Unison Technology: The Genuine Sound of Neve, API & Manley Preamps

Perfect for engineers, producers, and project studio owners, Apollo x8p features eight Unison-enabled mic preamps, letting you track large projects through exacting mic preamp emulations from Neve, API, Manley, Helios, SSL, and Universal Audio. A Universal Audio exclusive, Unison technology nails the tone of these sought-after tube and solid state mic pres — including their input impedance, gain stage “sweet spots,” and the component-level circuit behaviors of the original hardware.

The secret to Unison is its hardware-software integration between Apollo’s mic preamps and its onboard HEXA Core DSP Acceleration. Simply place a Unison preamp plug-in on your mic input in Apollo Console software, and it physically reconfigures the Apollo interface's impedance — so you can tap into the classic sounds of the world’s most recorded mic preamps.



Access the World of UAD Powered Plug-Ins

Going beyond the included Realtime Analog Classics Plus plug-ins, Apollo x8p lets you tap into the full UAD Powered Plug-In library of legendary vintage EQs, compressors, reverbs, tape machines, channel strips, and more — at near-zero latency, regardless of your audio software’s buffer size and without taxing your computer’s CPU.

With exclusive emulations from SSL, Neve, Studer, Manley, Helios, API, Ampex, Lexicon, Fender, and more,† it’s like having a studio full of iconic analog gear, in a single rack space. And unlike competing interfaces, these award-winning DSP-powered plug-ins are also available in your DAW for mixing.

†Apollo x8p includes the “Realtime Analog Classics Plus” UAD plug-in bundle. Other UAD plug-ins sold separately at www.uaudio.com.



Surround Sound, Talkback, and More

The Apollo x8p features built-in front-panel monitoring functions including a Talkback mic, Alt Speakers, and assignable Dim or Mono control. Plus, with its comprehensive 7.1 surround monitoring support, Apollo x8p is a boon for engineers and producers working on audio and music for video games, television, and the web. In addition, Apollo x8p offers selectable +24 dBu operation for out-of-the-box compatibility with professional mixing consoles and other high-end pro audio equipment.



Build an Expanded Studio System Over Thunderbolt

Apollo x8p offers 16 x 22 simultaneous inputs/outputs (8 x 8 analog I/O) and two built-in Thunderbolt 3 ports. This allows users of any Thunderbolt-equipped Apollo Twin or Apollo rackmount audio interfaces to easily combine up to four Apollos and six total UAD-2 devices — adding fast, high-bandwidth I/O and DSP as your studio grows.



Available as Apollo Heritage Edition

Featuring 10 premium UAD titles — including complete plug‑in Collections of our award-winning Teletronix,® UA 1176, and Fairchild® compressors, Helios® Type 69 and UA 610 mic preamps, Pultec® EQs, and more.





Universal Audio

About Manufacturer

Universal Audio Inc. was re-founded in 1999 by Bill's sons, James Putnam and Bill Putnam Jr., with two main goals: to faithfully reproduce classic analog recording equipment in the tradition of their father, and to design new digital recording tools with the sound and spirit of vintage analog technology. However, as Bill Jr. recounts, the genesis of "UA, part 2" is actually a bit more serendipitous.

Having grown up in the music industry, Bill Jr. and James ("Jim") Putnam naturally assumed that the music business is where they'd eventually end up. Jim, a touring musician and recording engineer, and their older brother Scott, a studio designer in Southern California, were the first to follow in Bill Sr.'s path. However, Bill Jr. took a more circuitous direction, working for a number of engineering companies before undertaking a doctorate in Electrical Engineering at Stanford University. It was at Stanford that Bill Jr. became closely involved in the Center for Computer Research in Music and Acoustics (CCRMA), specializing in signal processing. It was also at Stanford that Bill Jr. began to assemble a team of the best and brightest minds in the field — who continue to steer many of Universal Audio's engineering efforts to this day.

However, the precise event that led Bill and Jim to start (or "reinvent") Universal Audio in 1999 was unexpected. As Bill Jr. tells it, when Bill Sr. passed away in 1989, he and Jim were faced with the Herculean task of cleaning out their dad's workshop and storage areas. While going through Bill Sr.'s old test equipment, boxes of parts, bits and pieces of consoles, and half-cannibalized 1176 compressors, Jim came across their father’s old design notebook. The two spent the evening poring over his notes, realizing that this was the map to every technical problem their father had ever solved. It was at that moment that they decided to bring back Universal Audio and its classic products.

Fast forward a decade. Now with nearly 80 employees and legions of new customers worldwide, UA is headquartered near the Silicon Valley, in Scotts Valley, California — where our classic analog gear is still hand-built, one unit at a time. The lengths we go to deliver the exact sound and performance of classic analog audio gear is unparalleled; in fact, the goal is for UA's modern units to perform identically to well-maintained units built decades ago.

Of course, analog is only half the story. At Universal Audio, we employ the world's brightest DSP engineers and digital modeling authorities to develop our award-winning UAD Powered Plug-Ins platform, featuring the most authentic analog emulation plug-ins in the industry. Our DSP gurus work with the original hardware manufacturers — using their exact schematics, golden units, and experienced ears — to give UAD plug-ins warmth and harmonics in all the right places, just like analog.

Specifications

Inputs

Combo Mic/Line Inputs

8 Balanced XLR/TRS
DB25 Line Inputs 8 Balanced via 25-pin D-sub
Instrument (Hi-Z) Inputs 2 Unbalanced ¼" TS
Digital Inputs (Optical TOSLINK) ADAT: 8 channels @ 44.1 – 96 kHz
ADAT: 4 channels @ 176.4 – 192 kHz
S/PDIF: 2 channels @ 44.1 to 96 kHz
(Switchable ADAT or S/PDIF)



A to D Conversion
Mic Preamps Dynamic Range: 122 dB (A-weighted)
THD+N: -115 dB (0.00019%)
Frequency Response: 20 Hz – 20 kHz, ±0.05 dB
Line Inputs Dynamic Range: 123 dB (A-weighted)
THD+N: -113 dB (0.00022%)
Frequency Response: 20 Hz – 20 kHz, ±0.04 dB



Outputs

DB25 Line Outputs 8 Balanced via 25-pin D-sub
Monitor Outputs 2 Balanced ¼" TRS
Headphone Outputs 2 Stereo ¼" TRS
Digital Outputs (Optical TOSLINK) ADAT: 8 channels @ 44.1 – 96 kHz
ADAT: 4 channels @ 176.4 – 192 kHz
S/PDIF: 2 channels @ 44.1 to 96 kHz
(Switchable ADAT or S/PDIF)



D to A Conversion

Line Outputs Dynamic Range: 127 dB (A-weighted)
THD+N: -118 dB (0.00011%)
Frequency Response: 20 Hz – 20 kHz, ±0.07 dB
Monitor Outputs Dynamic Range: 129 dB (A-weighted)
THD+N: -118 dB (0.00012%)
Frequency Response: 20 Hz – 20 kHz, ±0.06 dB
Headphone Outputs Dynamic Range: 125 dB (A-weighted)
THD+N: -102 dB (0.00080%)
Frequency Response: 20 Hz – 20 kHz, ±0.05 dB
