From Mojave Audio
The challenge? Create a transformerless microphone circuit without
the inherent problems found in transformerless microphones. Technical
Grammy® award winning microphone designer David Royer has
created a thoroughly modern microphone that rises to that challenge:
the new MA-50. Designed to produce the clarity and realism that
Mojave microphones are known for – at an entry level price – the MA-50
out performs well-known transformerless mics costing many times
more.
The MA-50 is the perfect microphone for pros and semi-pros alike.
Utilizing the same capsule as the MA-200 and MA-201fet, it handles
the fastest transients with ease – even up to 140 dB.
Features:
- Large-diaphragm cardioid 3-micron capsule
- Fixed-cardioid polar pattern
- Transformerless circuitry
- Very low noise

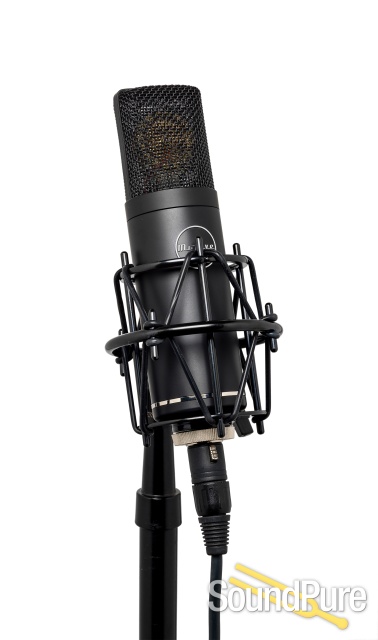

- Includes professional shock mount
- Simple – yet elegant design – perfect for home recording
- High SPL handling
- Fast transient response
Recommended applications:
- Vocals
- Voice-over
- Acoustic Instruments
- Drum Overheads
- Percussion Instruments
- Foley/ADR
TECHNICAL DATA
TRANSDUCER TYPE: Externally polarized pressure gradient capacitor
DIAPHRAGM: 1-inch diameter, gold sputtered
DIAPHRAGM THICKNESS: 3-microns
POLAR PATTERN: Cardioid
FREQUENCY RESPONSE: 20 Hz- 20 kHz, + 3 dB
SENSITIVITY: -40 dB re. 1V/pa
MAXIMUM SPL: 125 dB
DISTORTION: <0.5% @140 dB SPL
SELF NOISE: Better than 16 dB (A weighted)
IMPEDANCE: <100 ohms
RECOMMENDED LOAD: 1500 ohms or higher
POWERING: 48VDC phantom power; current 2 mA.
DIMENSIONS AND WEIGHT:
Carrying case with microphone, shock mount: 10” x 9” x 4.5”, 4 lbs.
Microphone: 7 5/8” X 2” (194mm x 51mm), 1 lb. (0.45Kg)

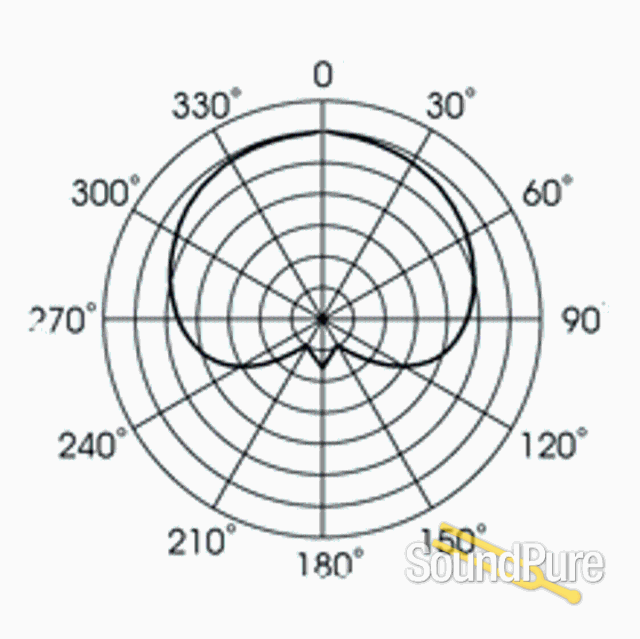

POLAR PATTERN

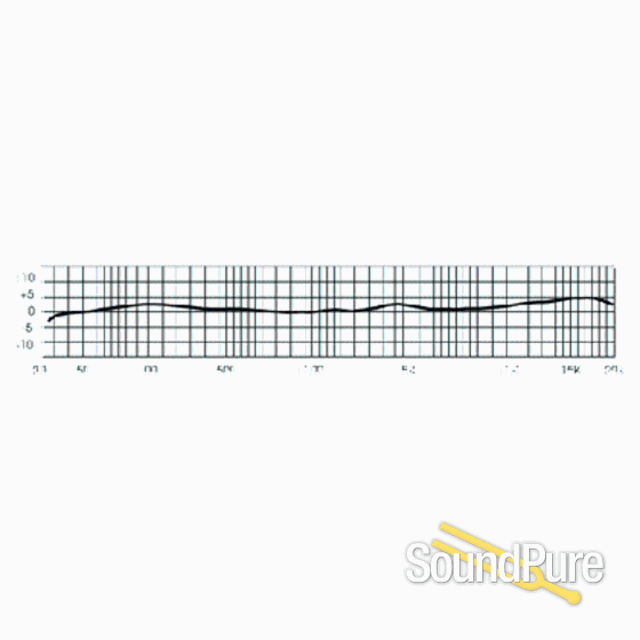

FREQUENCY RESPONSE
