L.R. Baggs Session Acoustic Guitar DI, from L.R. Baggs

Product image + -

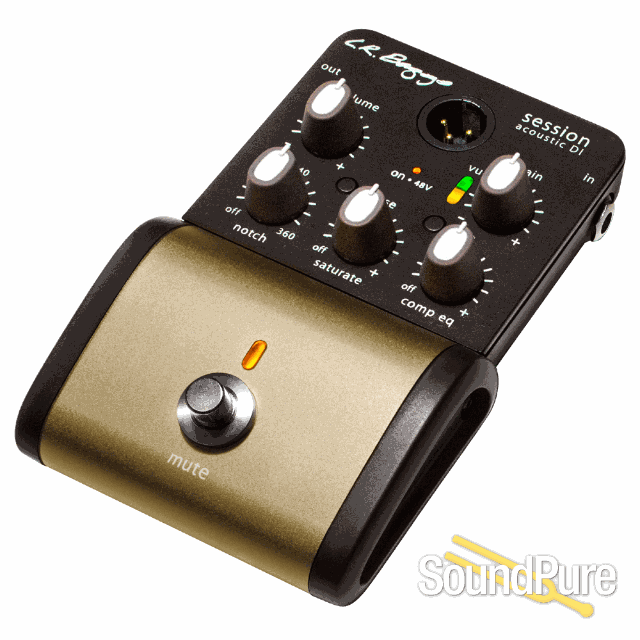

L.R. Baggs Session Acoustic Guitar DI
L.R. Baggs Session Acoustic Guitar DI

Studio quality sound in a live context!

In Stock!
Ships immediately after order processed!

Want to Try Before You Buy?

To set up a free trial in your home/studio,
call us now: 888-528-9703 or view more.

This is some next-level technology right here. Baggs has yet again made it even easier to get the acoustic sound we've all got in our heads properly translated to the stage. It really warms and tightens things up! We acoustic muscians have been waiting for this box for decades!!!

robinson@soundpure.com



Introducing Session™ Acoustic DI
Studio Tools for the Stage

Inspired by the LR Baggs Handcrafted Video Sessions and our experience in some of Nashville’s great studios, Session™ Acoustic DI brings our new signature studio sound to your live rig. The Session DI enhances your acoustic pickup and imparts the rich sonic character that you’d expect from an experienced audio engineer using some of the world’s finest studio gear. We’ve captured this studio magic and put it into a compact, easy-to-use DI that will transform your live sound.

 FEATURES

  • Analog Saturation enhances warmth and harmonic content
  • Compression / EQ smoothes out common problem frequencies
  • Garret Null notch filter eliminates resonate feedback
  • Variable high-pass filter attenuates extraneous low frequencies
  • VU meter visually optimizes gain for passive and active pickups
  • Ground lift switch effectively eliminates ground-loop noise
  • All discrete signal path with XLR and quarter inch outputs
  • 48V phantom power, 9V battery or 9V DC powering options
  • Rugged enclosure constructed of aluminum, steel and ABS plastic
  • Footswitch for muting the signal
  • Includes custom L.R. Baggs carrying case

SPECIFICATIONS

Session DI Acoustic Guitar Direct Box and Preamp

  • 1/4" Input
  • Input Impedance: 10 Megohms
  • Preamp Gain: -12dB to +26dB
  • Input Level: -25dBv to 1.8dBv (0.53Vrms to 1.23Vrms)
  • DI Output
  • Output Level: -1dBv (0.88VRms) Balanced
  • Output Impedance: 470 ohms
  • Line Output
  • Output Level: -1dBv (0.88VRms) Unbalanced
  • Output Impedance: 470 ohms
  • Power
  • DC Power Consumption: 0.65W Max at 9V
  • DC Current Draw: 3mA
  • Voltage Range: 7.5VDC - 12VDC
  • Power Supply: 9VDC with 100mA (or 1 watt) minimum
  • Average Battery Life: 125 hours
  • Phantom Power: 24VDC minimum
  • Signal To Noise: 90dB, unweighted
  • High Pass Filter
  • Frequencies: 40Hz, 80Hz, 120Hz, 200H
More text

In this video, Sound Pure guitar specialist Sam Kelly plays a Lowden F-25C acoustic equipped with an L.R. Baggs Anthem Acoustic Pickup through the L.R. Baggs Synapse PA System. SIGNAL CHAIN INFO: G...

Less text

In this video, Sound Pure guitar specialist Sam Kelly plays a Lowden F-25C acoustic equipped with an L.R. Baggs Anthem Acoustic Pickup through the L.R. Baggs Synapse PA System. SIGNAL CHAIN INFO: Guitar: Lowden F-25C w/ L.R. Baggs Anthem pickup } L.R. Baggs Session DI } Synapse w/ Medium Reverb. Peluso P84 Microphone (on guitar) } Synapse w/ Medium Reverb. Telefunken M60 Mic Pair with Omni Capsules (on the Synapse) } Avalon 2022 Preamp. Neumann TLM 107 Microphone (on the synapse) } Millennia HV-3D Preamp. Synapse DIRECT OUT } Vintech X73i Preamp. ALL Preamps } Lynx Aurora 16 Converter.
