Quick Start

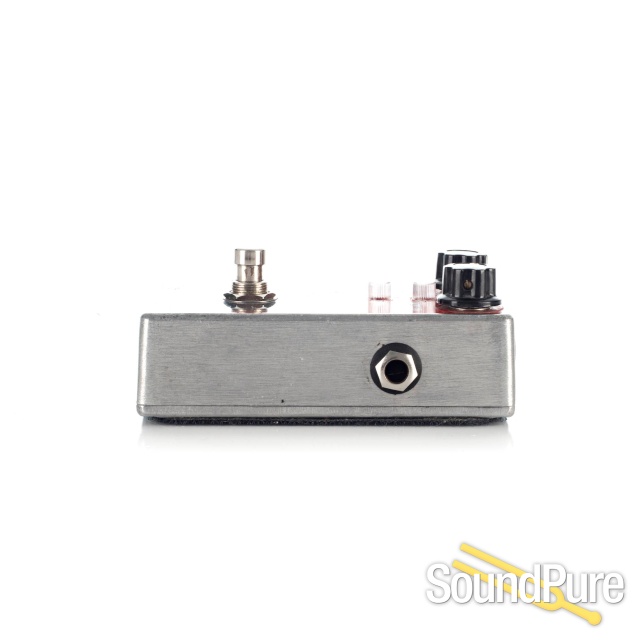

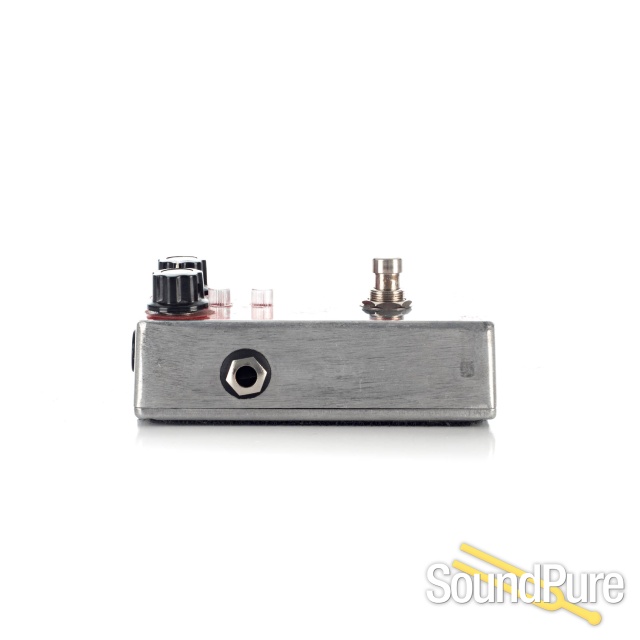

Plug the Amp Cord into the left jack and the Instrument Cord into the right jack. Plugging the instrument cord automatically turns on the power to the pedal. Set both CMP and LVL to 12:00 and Play!

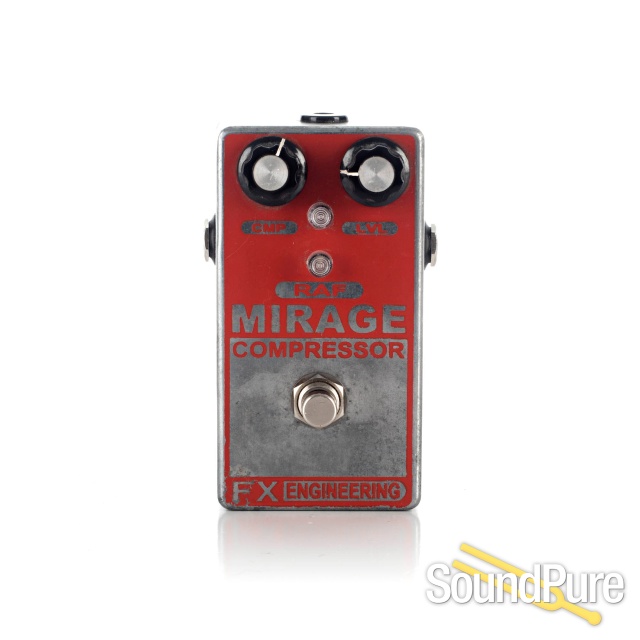

Controls
CMP - Compression - This controls the gain into the compression circuitry. The higher the gain, the greater the compression ration. The red lamp brightens when compressed signal activity is present.
LVL - Output Level - It is a post compressor volume control
Internal controls - Attack - The Rev-9 introduces this new feature to the Mirage. On the board you will find a blue trimmer labeled "Attack" this controls how fas the compression grabs the note. Turned CW = slower for more "pluck". This also cures the rare distortion from high output pickups. The second trimmer labeled R-LED is to calibrate the voltage to the red LED. No need to adjust unless using higher voltage power.
Footswitch - True Bypass - Pressing the foot switch engages the effect in the signal path (Blue lamp ON), or by-passes it (Lamp off)
Power
The Mirage is powered by an internal 9 volt battery for about 20 to 25 hours of "jacked in" time. It also accepts a standard 9 volt power supply. Can be run between 9 and 18 volts. Uses up to 10 mA!
