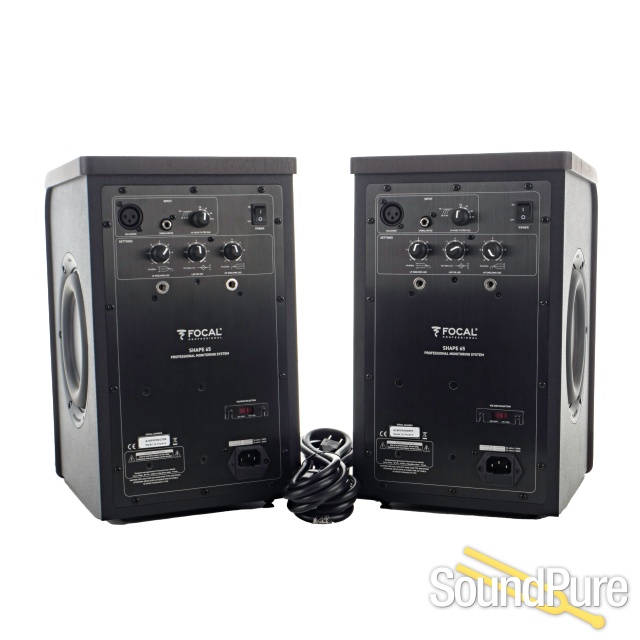

Focal Shape 65 6.5" Powered Studio Monitor Pair - Used  From Focal

Shape 65 is the reference of the Shape line. Although it’s dedicated to nearfield monitoring, this monitor enables extraordinary monitoring quality, in the lowest to the highest frequencies. Simply a must, this monitor will express its full potential from a listening distance of 3" away (1m).



Aluminum has the advantage of having very high rigidity, whereas the combination of addition of magnesium increases the damping of the dome. At the same time, the 'M' shape of the inverted dome has two major advantages. Its directivity is even less that of the inverted dome tweeter, allowing for more flexibility in terms of listening position. Mechanically speaking, the 'M' shape gives the dome much more rigidity, while reducing distortion even more. The Poron® suspension provides a more linear frequency response curve below 6kHz, improving crossover with the woofer. The magnetic component has also been optimised thanks to a voice coil with a Kapton® frame which significantly reduces the Foucault current, and consequently, distortion. Finally, the horn housing the tweeter has been designed to provide equal horizontal and vertical directivity.



Developing speaker driver cone technologies is part of Focal’s core expertise. The Flax sandwich cones used for the woofers on Shape loudspeakers are composed of two materials: glass fibres and flax fibres. A layer of flax fibres is sandwiched between two layers of glass fibres. Glass fibre cones were also used on the 'W' composite sandwich cone of the SM6 and SM9 series, and are revered for their high rigidity considering their light weight. The soul of the sandwich cone needs to provide good damping while being as light as possible. Flax fibres are twice as light as glass fibres as they’re hollow. What’s more, they also have very low elasticity. This consequently increases the speaker driver’s Young’s modulus when in excursion, an essential property to ensure a piston-like action even in the very low end. Finally, it is 80% composed of cellulose which gives it excellent damping. So, it was only natural for us to choose this material. This new technology has proven to be a considerable improvement over the Polyglass cone in terms of weight, rigidity and damping
