Earthworks P30/HC-B Periscope Series 30kHz Instrument Mic (Hypercardioid, Black  From Earthworks

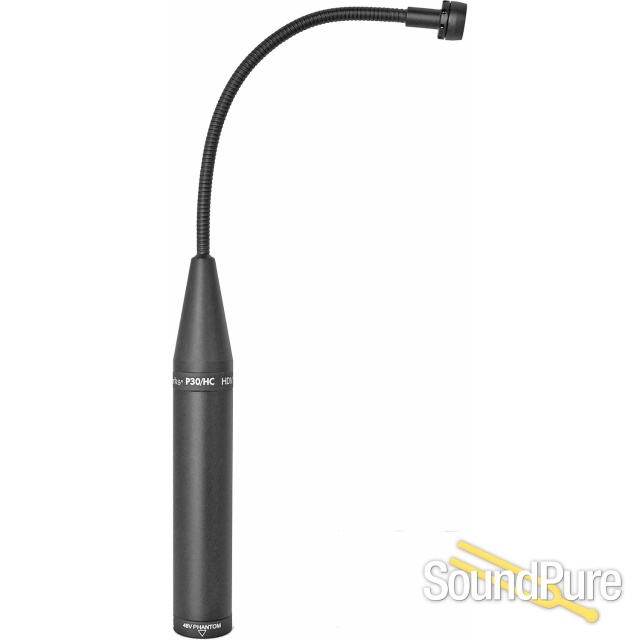

Periscope Series 30kHz Instrument Mic (Hypercardioid, Black)

Earthworks

Manufacturer's Description from Earthworks

The Periscope Microphones will provide you with astounding audio quality. Its uniquely designed small head and flexible neck will allow you to get into difficult places such as under the strings of an acoustic string bass. The Periscope design also offers more flexibility and ease of use for standard microphone applications. Imagine repositioning your microphone without having to move the stand or mic boom. The Periscope’s body can be pointed straight up and its microphone head can be pointed straight down in any direction. It is the ultimate in sound quality and flexibility and is ideal for a wide variety of applications.

Frequency Response: 30Hz to 30kHz ±1.5dB at 6 inches (15cm)

Polar Pattern: Hypercardioid

Sensitivity: 10mV/Pa (-40dBV/Pa)

Power Requirements: 48V Phantom, 10mA

Max Acoustic Input: 145dB SPL

Output: XLR (pin 2+)

Output Impedence: 100 balanced (50 each pins 2 & 3)

Min Output Load: 600 between pins 2 & 3

Noise: 22dB SPL equivalent (A weighted)

Dimensions L x D: 275mm x 22mm (10.75 x .860 inches)

Weight: .22 lb. (100g)

Earthworks

About Manufacturer

Earthworks was formed by David Blackmer, the inventor of dbx, to realize his vision of upgrading the entire audio chain to a new standard of sonic realism. David's goal of creating high definition tools with which to capture the sound and experience of "being there" is based upon a strong evidence that there is more to human hearing than the range of frequencies which can be heard as tones. We are convinced that audio equipment with extended frequency response and faster, cleaner time domain performance will yield more life-like results. Traditional audio methadology appears to be based on working around the limitations, imperfections, and personality quirks of the equipment, and calling the ones you like "assets". WE believe that any part of the audio chain can be improved to the point where the standard is so high that any product meeting it will be indistinguishable from any other product meeting the same standard, and that an audio system built to such standard can achieve sonic reality. This standard, for electronic equipment, is met by our Zero Distortion Technology. We support the concept of recording acoustic events accurately enough to capture the sound as it happened in the room. This approah allows you to make sonic coloration and texture choices later, when you can consider them carefully and still have recourse. Life-like accuracy is the best starting point for whatever unique coloration you may wish to add.

Specifications

  • Uniform frequency response on or off axis
  • Flat from 50Hz to 20kHz within + 2dB at 6 inches
  • Will handle up to 145dB SPL
  • No handling noise
  • High rejection of sounds to the rear of the microphone
  • Rejects RFI
  • Handles high sound pressure levels with high rejection of sounds to the rear of the microphone
  • Incredible gain before feedback
  • Orators can speak above, below or to either side of the microphone and maintain the same pristine sound quality with high intelligibility
