Item selected is discontinued (details below). Related products available now:

Antelope Audio Discrete 8 Thunderbolt Interface  From Antelope

Discrete 8 Thunderbolt™ and USB Audio Interface with 8 mic pres

Antelope Audio

Introducing Goliath HD | Antelope Audio

Goliath HD by Antelope Audio is the world's most powerful Interface now Pro Tools HD & Native ready. Packed with real-time FPGA Vintage FX, the a 64-Channel interface offers extended connectivity including second gen Thunderbolt, USB 3.0 and MADI.   Goliath HD is a 64-Channel interface that can be used with Pro Tools HD or Native DAWs via second generation ThunderboltTM, USB 3.0 or via 2 MADI connections, which are compatible with MADI to Dante Bridge products. Coming with extensive I/O options, featuring 16 Accusonic mic preamps with individual volume controls, 32 analog ins with 124dB of Dynamic Range, 32 analog outs with 129dB of Dynamic Range, plus mastering grade monitor outputs, featuring new technology that boosts dynamic range to a spectacular 132dB. Goliath HD comes with 8 instrument inputs, 2 transformer re-amp outs, integrated Talkback mic, 2 headphone outs and a pair of analog inserts. And if this wasn't enough, the descendant of the mighty Goliath offers also AES, MADI, ADAT and S/PDIF connectivity.    Goliath HD is armed with the full Antelope Audio arsenal of hardware-based FPGA FX. These inclued the most authentic and realistic zero latency Vintage EQs, Compressors and guitar amp & cabinet models on the market. Use them for real time tracking or mixing and easily save presets with your favorite setups. Those can be easily recalled or shared with other studio facilities, which are also part of the global Antelope Audio family.    The Antelope Audio Real-time FX, zero latency independent software mixers and routing matrix with two alternative views are the perfect compliment to Pro Tools HD studios, which have come to expect maximum power at their disposal. Goliath HD, however, is compatible with any DAW on the market making the device the heart and soul of the highest tier audio facilities around the world. Our newly introduced full Session Presets are the perfect match for the complex and large-scale setups and projects Goliath HD was designed to handle.   Goliath HD features a redesigned front panel. With enhanced monitor and level indicators, the responsive Touchscreen offers multichannel metering, easy access to preferences, presets, and clocking modes for HD or Native interfacing. And if this wasn't enough, the Goliath HD dedicated Android & iOS compatible mobile app will allow you to turn your smartphone or tablet into a powerful audio interface remote control.

Manufacturer's Description from Antelope

Monitor FX During Tracking – ConnectAFX Plugin For The Mix

Antelope Audio FPGA technology powers 50+ premier real-time FX. Use them within the Discrete 8 EasyPanel or in a DAW via the new ConnectAFX Plugin. Antelope Audio users will enjoy authentic hardware-based FPGA models of classic studio equipment. These not only sound but respond just like real hardware thanks to the unit's component-based modeling platform.

Plug in your guitar directly into one of the hi-Z enabled inputs and instantly sculpt your tone with some of the most iconic guitar amps and cabinets around. Then add vintage compression, EQ and AuraVerb to hear a finished studio quality result with real-time responsiveness while playing through your preferred amp, cabinet and microphone combination. Perform and record either with FX or your direct input and process later using the integrated guitar effects. The Discrete 8 ReAmp outputs will allow you to connect any of your effect pedals or outboard gear and record that sound back in your preferred DAW.

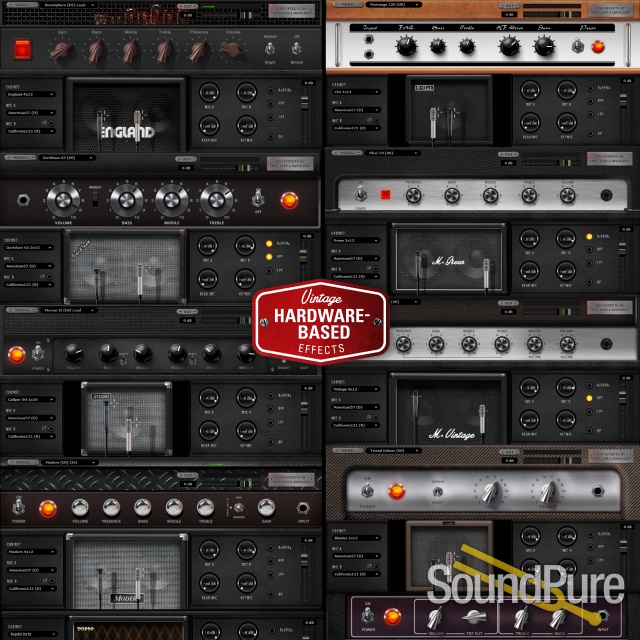

Guitar Amps: Burnsphere (DE), Marcus II (US), Overange 120 (UK), Tweed Deluxe, Top30, Darkface, Modern, Plexi 59, Rock 75, Rock 22.10

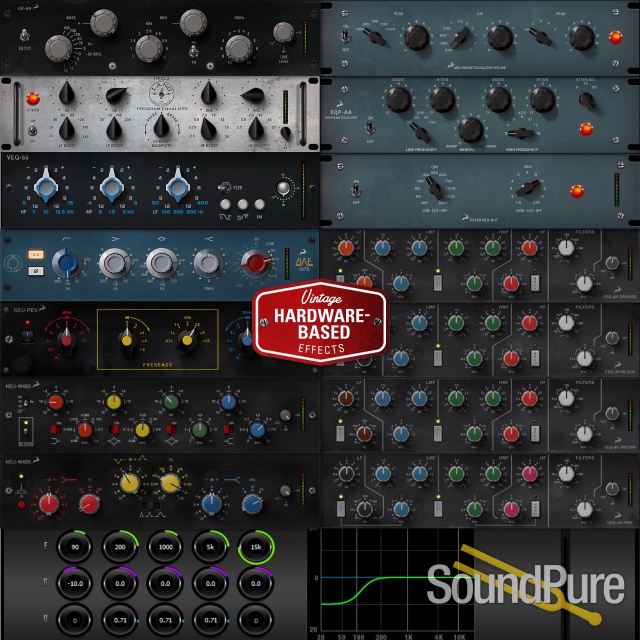

EQ Legends: VEQ-55b, VEQ-STU 089, VEQ-STU 169, VEQ-STU 900, VEQ HA32C, BAE 1023, BAE 1084, NEU-W492, NEU-W495, NEU-PEV, VEQ-4K Series, VEQ-4K Black, VEQ-4K Brown, VEQ-4K Pink, VEQ-4K Orange, BAE-1073, VEQ-HLF, VEQ-1A, VMEQ-5, VEQ-55A, Lang PEQ2, UK-69, ClearQ

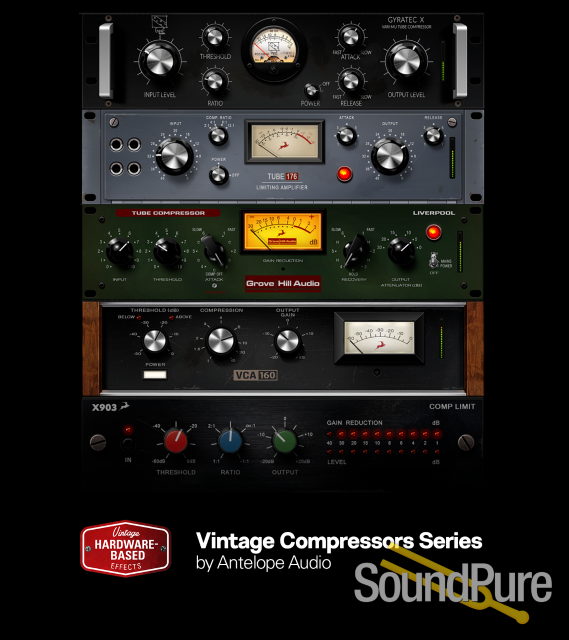

Vintage Compressors: X903, VCA160, Gyraf Gyratec X, Tube176, Grove Hill Liverpool, FET-A76, FET-A78, ALT-436C, BA-6A, SMT-100A, Stay-Levin, TubeChild670, Power EX, Power Gate, Feedforward Compressor

Reverb: AuraVerb



Bringing All-Star Technology & Performance to a new audience

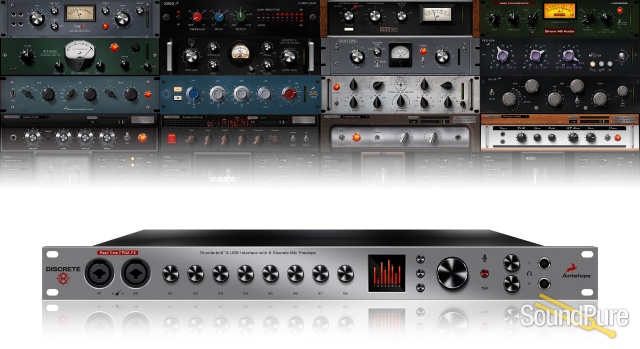

Antelope Audio’s Discrete 8 Microphone Preamp Interface brings a new level of sound quality and power to home studios and mobile recordists. It comes with 8 console grade 6-transistor discrete preamps, 121 db dynamic range conversion and rock solid clocking. Discrete 8 features all of the Antelope Audio premier real-time FPGA FX, including authentic models of iconic gear from BAE, Lang, Gyraf Audio and many more.

The Antelope AFX platform is based on a rapidly expanding hardware modeling engine. Discrete 8 includes Accusonic microphone and preamp models, guitar amps, transformer and tube FX, and a huge selection of classic vintage gear, which are now accessible in the DAW via the new ConnectAFX Plugin.

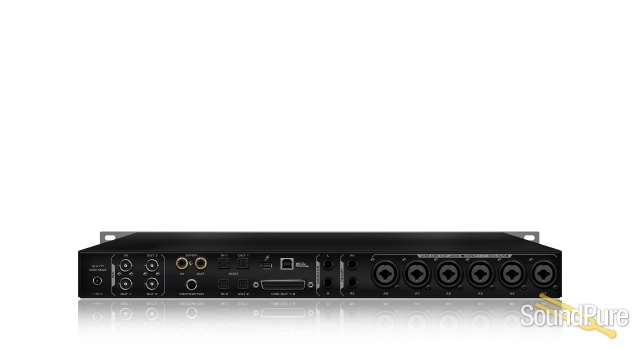

Discrete 8 is a 26in/32out interface featuring 8 analog ins, 8 analog outs on DB25, a pair of monitor outs, 2 Headphone outs and 2 ReAmps. Additional digital connectivity comes on S/PDIF, 2-ADAT’s.



An Entire Signal Path of Customizable Sonic Excellence

Discrete 8 was developed after an extensive research of legendary microphone preamp circuitry. Its console-grade and fully discrete preamps were hand designed to offer world-class sound. The powerful Antelope Audio FPGA engine can transform these already expensive sounding Accusonic preamps into several classic units via Tube, Transformer and FET based circuitry and it's all happening real-time.



Both the engineer and the performer can instantly hear the authentic blends of 10 different mic preamps without any latency or annoying comb filtering. The microphone source can be recorded with and without Accusonic modeling. This allows the engineer to choose between preamp models during mixing. The entire signal path was designed for optimal sound with any microphone and it really shines with Antelope’s new Edge and Verge microphones. These new microphones were specially designed for the Discrete 8 preamps and feature matching discrete electronics.



The real-time FPGA platform offers a complete professional studio experience – Microphones, Preamps, Conversion, Compressors, EQs, Reverb and latency free Monitoring. All this backed up by Antelope's signature Clocking combined into one unified system with instantly recallable Presets. You can even load AFX Presets from VIP Masters with their favorite combinations of FPGA FX that are used daily on their own award-winning mixes.



A Breakthrough Discrete Microphone Preamp Design

Traditionally, interface preamps are comprised of only 2 transistors, which makes them a hybrid between transistors and IC chips. Antelope Audio incorporates a fully discrete design consisting of 6 accurately matched transistors, yet maintaining the advantages of digital control and repeatability of gain levels. Field effect transistors add an expensive-sounding touch of warmth and naturalness to the sound. Bipolar transistors keep THD and noise extremely low, which is quite uncommon in a discrete design.



Antelope’s console grade 6-transistor discrete preamp is exceptionally unique. The Discrete 8 mic preamps were the first step of the device design process. Unlike other units where mic preamps are added to the interface, the Discrete 8 preamps are actually what the device is centered around.



Clocking Is The Center Of The Antelope Universe

For 25 years, Igor Levin has led the world in pro audio clocking technologies. His proprietary clocking techniques and secret jitter management algorithms have been at the core of the Antelope sound in all of their products.

The Discrete 8 is no exception. In fact, this mic preamp interface is a professional clocking solution in its own right. It features Antelope’s 4th Generation 64-bit Acoustically Focused Clocking (AFC) technology from the highly acclaimed Trinity, OCX HD, LiveClock, Pure2, Goliath, Orion, and Zen products. Discrete 8 comes with a Word Clock (WC) Input that can de-jitter and distribute an external clock signal. Three WC outputs allow you to distribute clock to your other digital gear and mic preamps in your setup connected via ADAT and S/PDIF. Discrete 8 will make sure all your gear is perfectly synced.



Expert Monitoring With Ease For Both Pros and Beginners

Discrete 8 has a comprehensive and easy to set up Monitoring and Talkback section. A band can have up to 4 individual monitoring mixes with FPGA FX included sent to Headphones or Monitor Outputs. The engineer can make custom headphone mixes for each performer. Effects can be included to allow artists to hear sound closer to what will be on the record.



Users can create custom presets to easily setup various tracking scenarios in a snap. The front panel features a monitor volume knob and dedicated HP knobs for each output. The Talkback mic is also built into the front panel right above the Talkback button. Additionally, Talkback can be engaged via the assignable footswitch on the back, in the EasyPanel software or via the IOS/Android App. Metering is viewable on the front panel display, inside the EasyPanel and also via the remote App.



A Rapidly Growing Audio Interface Platform

Discrete 8 can save and load AFX presets and exchange settings with the entire Antelope line of FPGA equipped pro audio interfaces. This means that you can share your own FX settings with other Antelope users and load professionally programmed stacks of FX from the Pros. This makes Discrete 8 a great option for both new users and existing Antelope owners, who use a second rig for touring or travel. This helps users leave their current studio untouched when on the road or doing session work outside their own facility.

Remote Control via IOS and Android Phones or Tablets

Use the Discrete 8 downloadable remote App to adjust all microphone input levels, Talkback levels, as well as Monitoring and Headphone volumes remotely. Musicians can control their own headphone volume with their phones and the engineer can check input levels from the tracking room.



Antelope Audio

About Manufacturer

ANTELOPE AUDIO
Digital clarity | Analog warmth
Antelope Audio has packed more then 20 years’ experience in digital audio, clocking and analog circuit development. We are dedicated to helping people achieve high-definition sound both in the recording studio and home environment.
Our 20 years in the industry brought us to the development of our 4th generation of Acoustically Focused Clocking (AFC) jitter management algorithm, responsible for our flawless clocking. You probably know it from Antelope’s signature crystal-based master clocks, that clock even our competitors products.

Specifications

SPECIFICATIONS:



ANALOG

Analog Inputs

6 x Mic / Line Inputs

2 x Mic / Line / Hi-Z Inputs

Analog Outputs

1 x Monitor Out on TRS 1/4 Jacks, +20 dBu max

1 x ReAmp Out on TRS 1/4 Jacks

1 x Line Outs on DB25, +20 dBu max

2 x Stereo Headphone Outputs

D/A Monitor Converter

Dynamic Range: XXX dB

THD + N: -XXX dB

A/D Converter

Dynamic Range: XXX dB

THD + N: -XXX dB

D/A Converters

Dynamic Range: XXX dB

THD + N: -XXX dB



DIGITAL

Digital Inputs

2 x ADAT (up to 16CH)

1 x S/PDIF

Digital Outputs

2 x ADAT (up to 16CH)

1 x S/PDIF

USB 2.0 I/O

USB 2.0 Type B connector



CLOCKING

Word Clock Input

1 x Input @ 75 Ohms 3Vpp on BNC 32 – 192kHz

Word Clock Outputs

3 x Outputs @ 75 Ohms 3Vpp on BNC 32 – 192kHz

Clocking System

4th Generation Acoustically Focused Clocking

64-bit DDS

Clock Stability

XXX

Clock Aging

< 1 ppm per year

Sample Rates (kHz)

32, 44.1, 48, 88.2, 96, 176.4, 192



OTHER

Operating Temperature

0-50В°C, 32-122В°F

Weight:

   Gross: 10.4 lb

   Net: 6.83 lb

Device Dimensions (Approx)

Width: 19 in

Height: 1.7 in

Depth: 8.6 in

Power Consumption

20 Watts Max
