From ADAM Studio Monitors

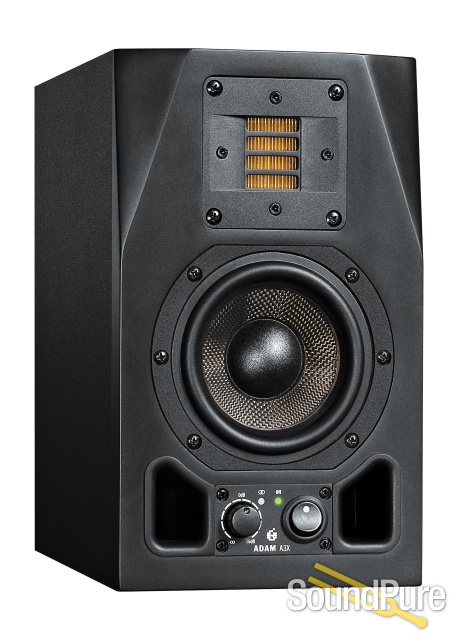

Particularly interesting for the quality-conscious user on a tight budget is the most compact monitor of the AX-Series, the A3X. Specially designed for studio environments with limited space, the A3X easily meets professional requirements. Three-dimensional spatial representation, a controlled, deep bass response and accurate sound reproduction, especially in the critical areas between 200 and 400 Hz, make it the first choice for smaller, even mobile studio setups.
With the A3X, analytical listening is possible without taking away musical enjoyment. Its excellent transient response and ability to easily play very dynamic tracks in all musical genres let it clearly stand out from comparable monitors in this price range.
Stereolink
The ‘Stereolink’ is a useful feature for desktop DAWs. Two additional input and output jacks for the second stereo channel allow you to control the volume for both monitors using the volume control of only one loudspeaker. The volume control of the other monitor only affects its own volume in order to easily compensate for differences in listening distance. Unlike the typical master-slave configuration, each A3X monitor is fully equipped and can function either as a master or a slave unit.
ADAM Audio monitors have earned a worldwide reputation as the preeminent tool for sound engineers based on technological innovations that we’ve established in the field of loudspeaker technology.
X-ART Tweeter
The X-ART (eXtended Accelerated Ribbon Technology) tweeters and midranges incorporate a new approach to the Air Motion Transformer concept originally developed by Dr. Oskar Heil. ADAM Audio has improved upon this splendid idea utilizing superior geometries and materials to achieve unprecedented audio fidelity. X-ART strikes a new path concerning the kinematics of moving air, resulting in a dramatic improvement in the quality of audio reproduction.
X-ART Midrange Driver
The X-ART midrange driver uses a diaphragm that weighs only a fraction of comparable voice coil units, and can theoretically cover the range from 400Hz to 20kHz. The large diaphragm area comparable to a conventional midrange unit permits very high, uncompressed SPL without compromising dispersion. The unit has an absolutely flat impedance curve and consequently exhibits linear phase behavior, with a mere ±0.75° deviation within the utilized frequency band.
A/B AMPLIFIER
Every progress comes with new questions and difficulties. The new X-ART tweeter with its extended frequency band up to 50 kHz (-3 dB point) caused an interesting kind of problem: PWM amplifiers need a low pass filter to separate the modulation frequency from the audio band, and this may limit the reproduction capabilities of the new tweeter. So ADAM spared no efforts and decided to design its own high frequency power amp to allow the new high frequency unit to live up to its unique talents.
WOOFER
- Number
- 1
- Basket Ø
- 4.5" (120 mm)
- Voice Coil Ø
- 1" (25 mm)
- Cone Material
- Carbon Fiber
TWEETER
- Number
- 1
- Type
- X-ART
- Diaphragm Area
- 4 inch² (2420 mm²)
- Equiv. Diaphragm Ø
- 2" (56 mm)
- Velocity Transform Ratio
- 4:1
- Diaphragm Weight
- 0.17 g
BUILT-IN AMPLIFIERS
- Woofer
- 1
- Type
- A/B
- Amp. Power RMS / Music
- 25 W / 40 W
- Tweeter
- 1
- Type
- A/B
- Amp. Power RMS / Music
- 25 W / 40 W
CONTROL PANEL
- Input Sensitivity
- -∞ to +14 dB
- Tweeter Gain
- ±4 dB
INPUT CONNECTORS
- Analog
- XLR / RCA
GENERAL DATA
- Frequency Response
- 60 Hz - 50 kHz
- THD 90 dB / 1 m > 100 Hz
- ≤0.8 %
- Max. SPL with sine wave acoustic 100 Hz to 3 kHz at 1 m
- ≥98 dB
- Max. SPL per pair at 1 m
- ≥106 dB
- Crossover Frequencies
- 2800 Hz
- Input Impedance
- 10 kOhm
- Panel
- Front
- Stereolink
- Yes
- Weight
- 10.1 lb (4,6 kg)
- Magnetically Shielded
- No
- Height x Width x Depth
- 10" (252 mm) x 6" (150 mm) x 7.5" (185 mm)
- Warranty
- 5 years (2 years warranty plus 3 years optional with product registration)
- Delivery Contents
- Cinch-cable, power cord, manual
