WesAudio LC-EQP  From WesAudio

A single channel passive equalizer with a tube amplifying stage.


Manufacturer's Description from WesAudio

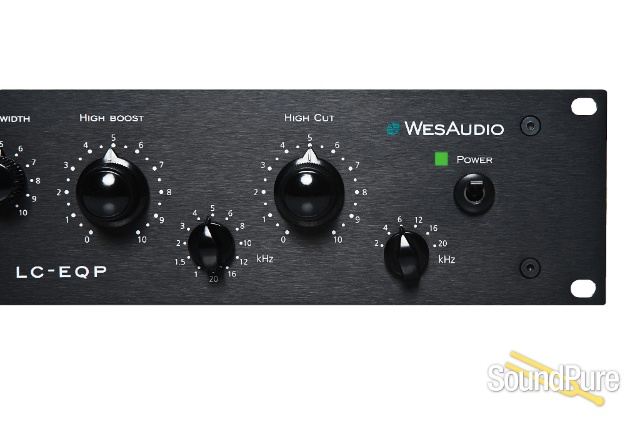

The equalizer input system is based on a  Carnhill linear transformer which matching input impedance.  The input impedance is > 1.5 kohm. It Is higher than in  similar class devices. As a result, the equalizer does not load the signal source, by which it is controlled. The equalization block is a passive system based on coils, resistors and capacitors. The block has been expanded with additional bands for LOW and HIGH section. The EQ section introduces a high attenuation,  exceeding  25dB. A signal regenerative  amplifier is a  tube system,  based on two triodes. The amplifier has been designed without feedback which does not distort transients. The equalizer output is symmetrical. A  Carnhill transformer is responsible for output symmetrization, which provides a low output impedance. The anode and heater voltage are stabilized. WesAudio LC-EQP is powered by alternating current 230V / 115V, which can  be selected by a  voltage selector. The casing is 2U rack  made of 1.5mm stainless steel whereas the aluminum front panel is 4mm. LOW section has separate boost regulations and frequency cut offering six bands. HIGH BOOST section has a selection of 12 bands and a regulation of  Q factor . HIGH CUT section is equipped with 6 bands. An EQ IN switch is a  “True Bypass” type. Switching the equalizer is indicated by a red LED.


WesAudio LC-EQP sound can be described as clean and clear with a tube nature. It is an ideal equalizer on both, single  tracks and the sum. LC-EQP WesAudio handles well controlling  other studio devices thanks to low output impedance. It was designed  as a universal musical equalizer to use in professional recording studios.


About Manufacturer

WesAudio is a manufacturer of professional audio equipment. By utilizing the latest technology, introducing unique design solutions as well as using measuring devices such as Audio Precision, Agilent, Tektronix, Fluke, we are proud to present the first devices available in the sales offer of WesAudio.We strive to assure that our products are of high quality and precision. We provide full warranty and service of all the equipment available for sale.


Gain: 0dB (+/- 0.5dB)
Input impedance: >1.5kohm
Output impedance: 150ohm
Max. output level: +22dBu (0.8% THD)
Frequency response: 5Hz – 65kHz (-3dB)
SNR ratio: 90dB
LOW BOOST: max +18dB
LOW CUT: max -18dB
HIGH BOOST: max +20dB
HIGH CUT: max -18dB
LOW BOOST: 20, 30, 60, 100, 120, 250 Hz
LOW CUT: 20, 30, 60, 100, 120, 250 Hz
HIGH BOOST: 1, 1.5, 2, 3, 4, 5, 6, 8, 10, 12, 16, 20 kHz
HIGH CUT: 2, 4, 6, 12, 16, 20 kHz
AC mains: 115(60Hz) / 230V(50Hz)

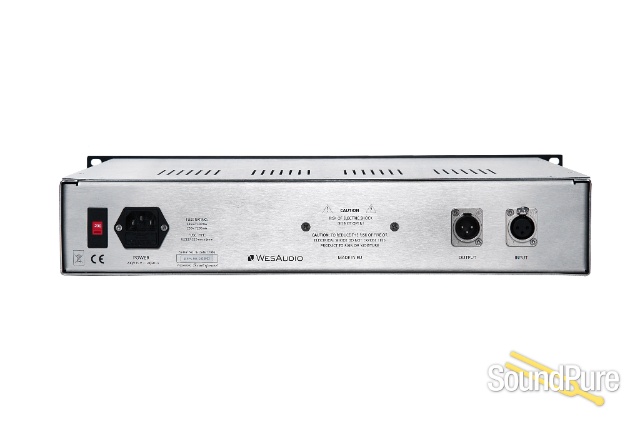

Transformer balanced output and input (XLR Neutrik)
Case Rack 2U
Dimensions: 88 x 483 x 237 mm
Weight: 7 kg
3 years warranty
