From Summit Audio
Passive EQ
Coveted by top professionals for decades, passive EQs have better phase coherence than active designs, and the inductors offer a rich, smooth harmonic quality.
Track, mix, master
The EQP-200B is an indispensable component to many key task's in the studio. From tracking to final touches and audio sweetening, the EQP-200B is the goto EQ!
Take the buss!
The EQP-200B is the perfect finishing tool for any mix - just insert it across the master buss of your mixing console or DAW. The sonic benefits from the EQP-200B's exceptional passive tube circuit are apparent even with the EQ circuit in bypass mode.
Hand-crafted in the USA
Each piece of Summit gear is meticulously crafted by hand in our shop using only the best quality components and attention to detail. Quality components and engineering know-how are the critical element to the sound and longevity of audio gear.

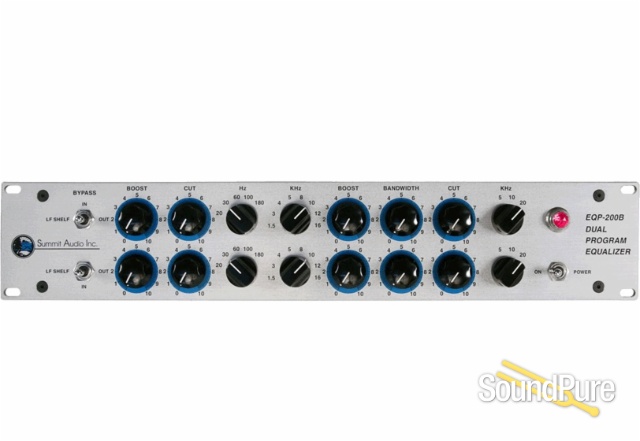

Selectable Frequencies
Low Frequency Shelf / In / Out
- 3 position togle: 6 dB per octave shelving filter starting at 50 Hz, or standard engaged operation, or bypass mode
Low Frequency Boost and Cut
- 20, 30,60, 100, 180 Hz frequencies.
Mid-High Frequency Boost and Cut
- 1.5k, 3k, 5k, 8k, 10k, 12k, and 16k Hz frequencies.
High Frequency Cut
- select at 5k, 10k and 20k Hz frequencies.

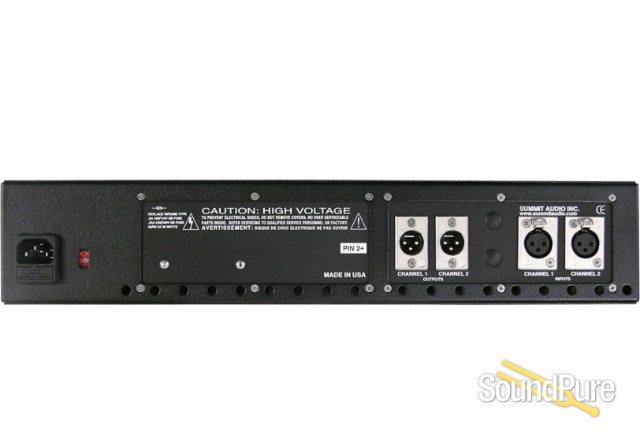

Connections
- Inputs: +4 dB female XLR (2)
- Outputs: +4 dB male XLR (2)
Max level
- Max input level (XLR): +23dB
- Max output level (XLR): +23dB
- Max gain: +/-20dB
Operating Measurements
- Frequency response:
- Tube: 12Hz-45kHz -0.5dB
- Signal to noise ratio:
- Tube: 125dB average 20Hz-20kHz
- THD + Noise:
- Tube: 0.057% 12Hz-20kHz
- Vacuum tubes: three 12AX7A
Power Configuration
- Internal AC Supply
- 35 watts, 115 or 230 volts, 50 or 60 Hz (Rear Switchable)
- Fuse Size: 0.5 Amp for 115 VAC, 0.25 Amp for 230 VAC
Size and Weight
- Height: 3.5 inches (8.89 cm)
- Width: 19 inches (48.26 cm)
- Depth: 10 inches (25.40 cm)
- Weight: 17 pounds (7.71 kg)
Warranty
3 year limited warranty.
