SPL SMC 7.1 Surround Monitor Controller (Silver)  From SPL

The SMC 7.1 expands analog surround monitoring to 8 channels and offers Solo, Solo-In-Place and Solo-To-Center as well as a headphone jack.

SPL

$2,099.00

No Sales Tax in OH!
No Sales Tax in 45 States. Learn More.

Retail:  $2,332.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax collected in OH.

Close
Sales Tax
Sales tax is only collected in the following states: CA, FL, NC, SC, TN and VA. If your state is not listed, sales tax will not be collected on your order.
Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $47/mo.

Manufacturer's Description from SPL

Source Selection & Speaker Management

Two 7.1 and two stereo input sources can be connected to the SMC 7.1. This is important because in monitoring, two productions are always compared with each other.

A subwoofer can be added to a stereo input by activating the LFE button.

Each loudspeaker can be switched on and off individually, and the SMC 7.1 remembers the last speakers used for each source.

The Solo-In-Place function now turns the loudspeaker on/off switches into solo buttons. This allows each loudspeaker to be heard alone at its position.

Solo-To-Center places the selected loudspeaker on the center speaker, so that it can be listened to exactly from the front in case critical listening is required.

An alternative output is available for connecting a pair of stereo loudspeakers.

The 45mm all-aluminium rotary knob moves an 8-level potentiometer.

Mute is especially important when the DAW is sending full-range audio garbage due to a problem. Mute can be used quickly to protect speakers and hearing.

As an alternative to the speakers, headphones can be used for monitoring. The headphones can be switched on and have their own volume control.

SPL

About Manufacturer

Sound Performance Labs! Full Range of Analog, Tube, and Digital rack gear with an innovative twist. With their most famous transient designer product, SPL has quickly become a household name in both the recording and live sound arenas.

Specifications

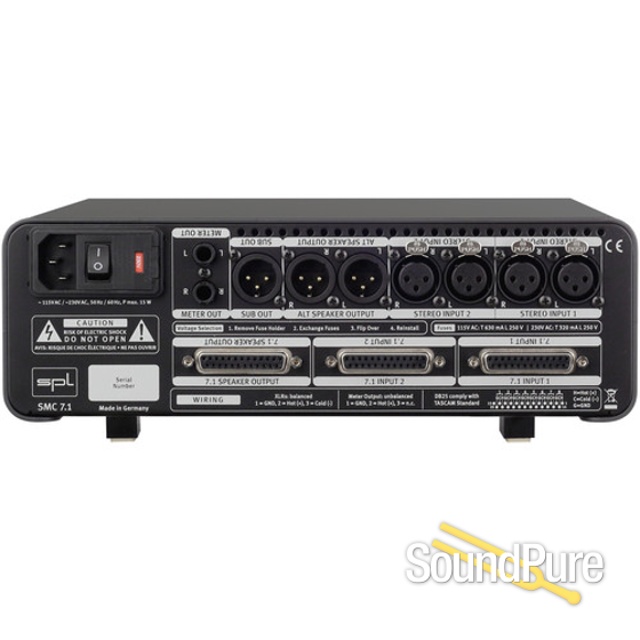

Analog inputs & outputs; XLR & DB25 (balanced)

Maximum input: 22 dBu
Input impedance: 20 kΩ
Output impedance: 100 Ω
Frequency range (-3 dB): 10 Hz – 150 kHz
THD +N (10 Hz – 22 kHz, 0 dBu): 0.001 %
Noise (A-weighted): -93 dBu
Crosstalk (1 kHz): -92 dB
Common mode rejection (1 kHz): 82 dB
Dynamic range: 115 dB

Standard Headphones Output, 6.35 mm (1/4") TRS Jack

Wiring: Tip = Left, Ring = Right, Sleeve = GND
Frequency range (-3dB): 10 Hz – 80 kHz
Crosstalk (1 kHz): -70 dBu
Total harmonic distortion (0 dBu, 1 kHz, 40 kΩ load): 0.001 %
Noise (A-weighted): -93 dBu
Dynamic range: 115 dB

Internal Linear Power Supply with Toroidal Transformer

Operating voltage for analog audio: +/- 18 V
Operating voltage for relays and LEDs: +12 V

Mains Power Supply

Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
Sicherung für 230 V: T 500 mA
Sicherung für 115 V: T 1 A
Power consumption: max. 30 W

Maße & Gewicht

W x H x D (width x height x depth): 278 x 100 x 330 mm, 11 x 4 x 13 inch
Unit weight: 4.1 kg, 9.04 lbs
Shipping weight (incl. packaging): 5.4 kg, 11.9 lbs

Reference: 0 dBu = 0,775V. All specifications are subject to change without notice.
