From SPL
Source Selection & Speaker Management
Two 7.1 and two stereo input sources can be connected to the SMC 7.1. This is important because in monitoring, two productions are always compared with each other.
A subwoofer can be added to a stereo input by activating the LFE button.
Each loudspeaker can be switched on and off individually, and the SMC 7.1 remembers the last speakers used for each source.
The Solo-In-Place function now turns the loudspeaker on/off switches into solo buttons. This allows each loudspeaker to be heard alone at its position.
Solo-To-Center places the selected loudspeaker on the center speaker, so that it can be listened to exactly from the front in case critical listening is required.
An alternative output is available for connecting a pair of stereo loudspeakers.
The 45mm all-aluminium rotary knob moves an 8-level potentiometer.
Mute is especially important when the DAW is sending full-range audio garbage due to a problem. Mute can be used quickly to protect speakers and hearing.
As an alternative to the speakers, headphones can be used for monitoring. The headphones can be switched on and have their own volume control.
Expansion Rack
Rack-mount for Phonitor 3, Phonitor 3 DAC and SMC 7.1

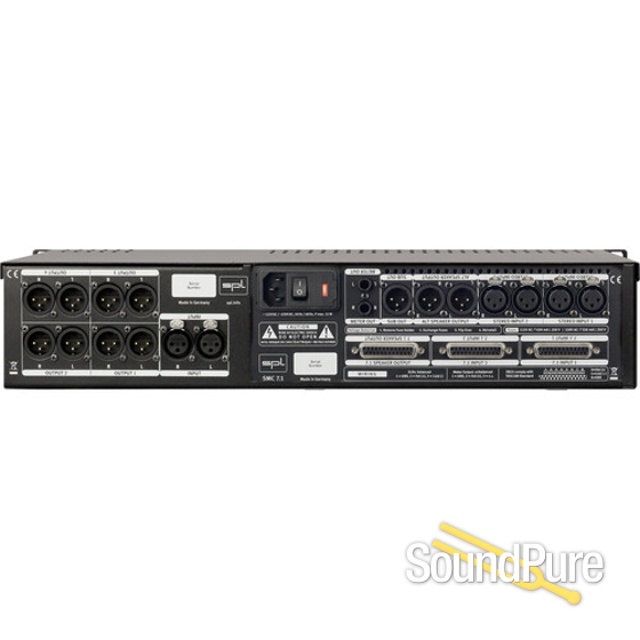

The SPL Expansion Rack is not only a 19” rack housing for the Phonitor 3, Phonitor 3 DAC and SMC7.1, it also expands the connection possibilities.
A passive four-way switch integrated into the Expansion Rack allows the speaker output signal to be switched between up to four stereo speaker pairs.
Analog inputs & outputs; XLR & DB25 (balanced)
- Maximum input: 22 dBu
- Input impedance: 20 kΩ
- Output impedance: 100 Ω
- Frequency range (-3 dB): 10 Hz – 150 kHz
- THD +N (10 Hz – 22 kHz, 0 dBu): 0.001 %
- Noise (A-weighted): -93 dBu
- Crosstalk (1 kHz): -92 dB
- Common mode rejection (1 kHz): 82 dB
- Dynamic range: 115 dB
Standard Headphones Output, 6.35 mm (1/4") TRS Jack
- Wiring: Tip = Left, Ring = Right, Sleeve = GND
- Frequency range (-3dB): 10 Hz – 80 kHz
- Crosstalk (1 kHz): -70 dBu
- Total harmonic distortion (0 dBu, 1 kHz, 40 kΩ load): 0.001 %
- Noise (A-weighted): -93 dBu
- Dynamic range: 115 dB
Internal Linear Power Supply with Toroidal Transformer
- Operating voltage for analog audio: +/- 18 V
- Operating voltage for relays and LEDs: +12 V
Mains Power Supply
- Mains voltage (selectable, see fuse chamber): 230 V AC / 50; 115 V AC / 60 Hz
- Sicherung für 230 V: T 500 mA
- Sicherung für 115 V: T 1 A
- Power consumption: max. 30 W
Maße & Gewicht
- W x H x D (width x height x depth): 278 x 100 x 330 mm, 11 x 4 x 13 inch
- Unit weight: 4.1 kg, 9.04 lbs
- Shipping weight (incl. packaging): 5.4 kg, 11.9 lbs
Reference: 0 dBu = 0,775V. All specifications are subject to change without notice.
Expansion Rack Specifications
Passive 1 to 4 Splitter
- Input, 1x stereo: XLR (balanced)
- Outputs, 4x stereo: XLR (balanced)
Dimensions & Weight
- W x H x D (Width x Height x Depth): 482 x 88 x 303 mm, 19 x 3.46 x 11.93 inch
- Weight: 2.7 kg, 5.95 lbs
