From sE Electronics
When purchased as a pair, the transformers and cardioid capsules are factory-matched for perfect tolerance, guaranteeing the best possible stereo image.

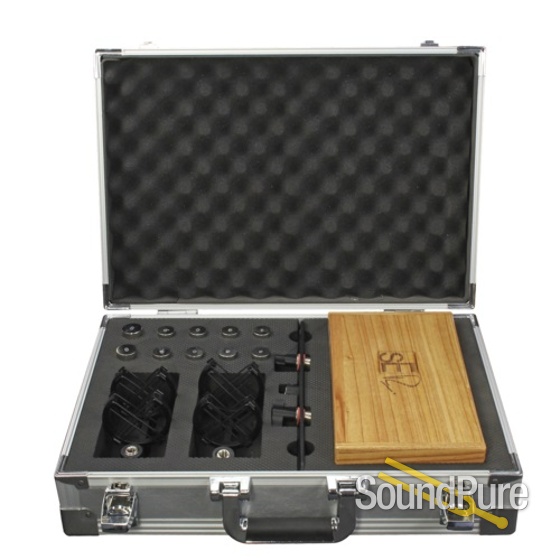

This configuration also includes a precision stereo mounting bar, two shock mounts, a wooden presentation case, and empty canisters for future capsule additions. The whole setup comes packaged inside a secure flight case.
The sE RN17 is the world's first pencil microphone with a large scale, hand wound, ultra high performance transformer.
The definition and detail from the capsule is incredible, made more so by the headroom afforded by the Rupert Neve transformer. Combined with a newly developed 17mm capsule from sE, the world's smallest production gold sputtered Mylar capsule, the result is truly magnificent. The combined effect is one of exceptional clarity, with a wonderfully silky finish.

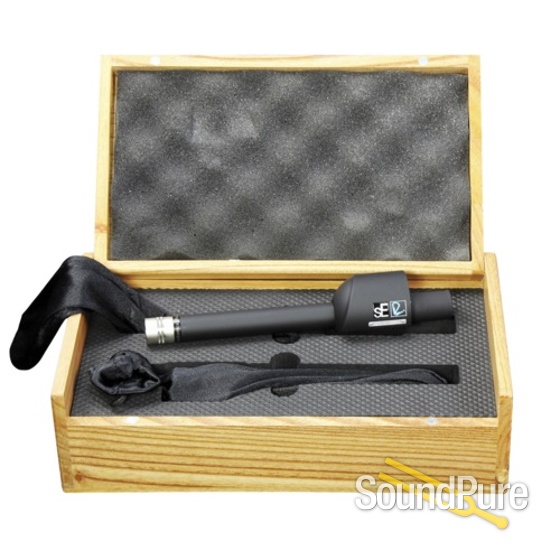

The sE RN17 ships with a cardioid capsule, in a beautiful wooden presentation case, and with 5 canisters to hold the cardioid capsule shipped with the mic, and further supercardioid, omni, hypercardioid and figure of 8 capsules which are available to purchase separately. The whole system is packaged in a signature series flight-case with a custom shock mount, and is also avalable as a stereo pair.
- Acoustical operating principle
- Pressure condenser
- Directional pattern
- Cardioid
- Frequency range
- 20 Hz - 20 kHz
- Sensitivity at 1 kHz into 1 kohm
- -44.5±0.5dBV/ Pa(6mV/Pa)
- Rated impedance
- 200 ohms
- Rated load impedance
- 1 kohms
- Equivalent noise level, CCIR (1)
- 23 dB
- Equivalent noise level, A-weighted (1)
- 18 dB
- Signal-to-noise ratio, CCIR (1) (rel. 94 dB SPL)
- 69 dB
- Signal-to-noise ratio, A-weighted (1) (rel. 94 dB SPL)
- 74 dB
- Maximum SPL for THD 0.5% (2)
- 150 dB
- Maximum output voltage
- 4V
- Dynamic range of the microphone amplifier (A-weighted)
- 131 dB
- Supply voltage (P48, IEC 61938)
- 48 V ± 4 V
- Current consumption (P48, IEC 61938)
- 3mA
- Matching connectors
- XLR3F
- Weight
- 248 g
- Diameter
- 44 mm
- Length
- 200 mm
