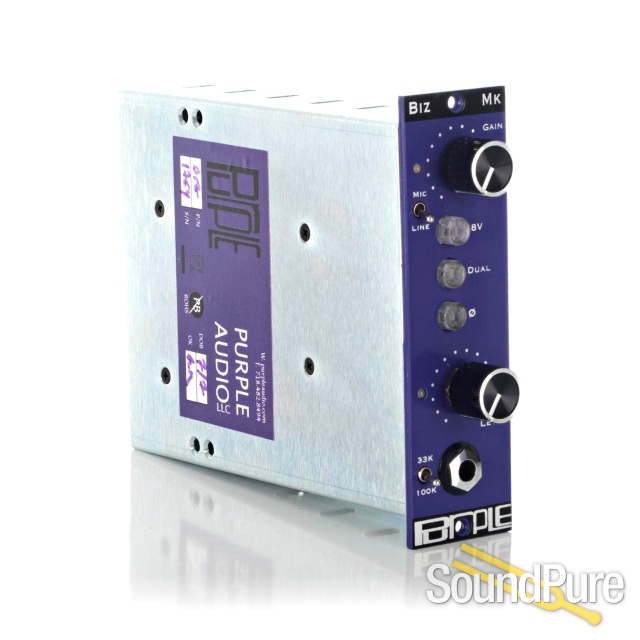

Purple Audio Biz MK 500 Series Mic Preamp Used  From Purple

500 Series Discrete Microphone Preamplifier

Close

Buy Pre-owned from Sound Pure with Absolute Confidence

Sound Pure's dedication to pre-owned products is unprecedented in the industry. We are a small team of dedicated experts that buys, trades, and consigns. We are trusted by customers all over the world. Our curated collection, is thoroughly tested and inspected by some of the best in the business. Our inventory is constantly changing, ever-evolving, with some items sold before reaching the website. Looking for something specific? Have questions about this product's condition or history? Want more photos, or to simply chat with an expert who's had his hands on this actual piece? Contact us now.
Our Current Used/Vintage Collection »

Sound Pure's Consignment Program »

Luthier Certification for Used Instruments »

Purple Audio

What We Think

Condition: Used, Excellent

Manufacturer's Description from Purple

A unique sounding, three amplifier, discrete microphone preamp module designed to work in standard “500″ racks.

The smooth Gain control helps you dial in the sound you want. If the output level is too high (the Class A/B output opamp can pump out up to +27 dBu), you can ride the level down with the separate Level control.

Pressing the “Dual” switch splits the gain between two of our Class A opamps, enabling up to 75 dBu of clean gain, making the Biz a perfect match for ribbon microphones.

With different Gain, Level, and Dual settings the Biz can produce an infinite variety of tonal variations with the same amount of output level. The front panel DI helps you record instruments and line level sources with unrivaled clarity and punch.

Two LEDs clearly indicate signal level for the gain and output stages at a glance, turning green to indicate signal present, yellow for 10dB below clipping, and red for clipping. The Biz uses two KDJ3 opamps and oneKDJ4 opamp.

Features:

  • Output level control
  • Input and output tricolor LED metering
  • Mic / Line switch for rack input Bridging line input for high output mics or line level sources Use with our Moiyn 8×2 mixer module in the Sweet Ten rack for mic or line mixing
  • DI Load switch for front panel input 33kohms as in the original Biz or 100kohms for a more open tone
  • Discrete signal path
  • Over Current Resettable Fused (prevents any module problem from affecting your rack)
  • ROHS – Lead Free



Biz Pinout:

  • Pin 1: Chassis Ground
  • Pin 2: Output A +
  • Pin 3: Output B+ (Purple Audio Rack Only – XLR OUT 2)
  • Pin 4: Output A -
  • Pin 5: Audio Ground
  • Pin 6: Output B – (Purple Audio Rack Only – XLR OUT 2)
  • Pin 7: Input -
  • Pin 8: Input -
  • Pin 9: Input +
  • Pin 10: Input +
  • Pin 11: NC
  • Pin 12: +15 or 16VDC 80ma
  • Pin 13: Audio Ground
  • Pin 14: -15 or 16VDC 80ma
  • Pin 15: +48VDC
Purple Audio

About Manufacturer

Purple Audio was founded by Andrew Roberts in 1997.

While attending NYU’s music technology program in 1994 Andrew bought, sold and repaired recording equipment from a dorm room on the college campus.

In the fall of 1996, Andrew was introduced to John Klett who invited him to join a new repair shop in midtown Manhattan. This shop, dubbed Tech Mecca, was the new location for Manhattan Audio, a large repair facility and wiring company and Klett’s new midtown home.  Andrew apprenticed under Klett and began repair on high-end audio gear.

By the fall of 1997 Purple had introduced the MC76. Soon after Purple Audio’s inaugural AES show Purple needed more space, the operation was moved to a loft in Long Island City, Queens. This large space provided overflow space for Tech Mecca’s large projects.

Purple Audio spent the late 90s and early 00s shipping the MC76 and getting involved in console and tape machine rebuild projects. Andrew studied analog circuit and logic design, seeing it in practice during field service calls to major studios in the area.  While sales of the MC76 started to drop off as a result of a new competitor’s ad campaign, which in turn brought increased awareness of the MC76 product and user comments proved that the Purple Audio product was clearly superior.  Distribution was finally achieved and Purple Audio began selling direct and through select dealers.

Then began a long process in console design. Andrew designed a couple of large master sections, which were retrofitted into existing consoles. The master sections went through several design revisions before the Super 8 modules were designed. The process resulted in op amps and a mic preamp design that later became the Biz. Eventually Purple delivered 16 channel portable rigs and a 32 channel full-blown console.

In 2006 the bold move was made.  Purple Audio uprooted its operations in New York and shifted focus to a new location in Pennsylvania.   Andrew settled in the quaint little river town of Jim Thorpe Pennsylvania, where he began restoration of a 1850’s Victorian home.  Just a short drive from his new residence Purple’s new location was up and running in a 1000 sq ft. industrial complex in Weissport PA. The shop in New York still exists and is the home of Coral Sound, Exile Studios, Technical Audio, & Eisen Audio.

Upon his move to Weissport, PA in 2006 Andrew was now freed from the distractions of New York, Exile, and repair work. This allowed him to focus on the design work he had anxiously been working toward for years.  With that came the completion of the new Purple Audio products in 2007 : the Action, Cans, Pants, Sweet Ten ready for the AES show with actual production the first few months of 2008.

In 2011 Purple Audio once again upgraded its facilities and purchased a historic fire company in Jim Thorpe PA, called the “Marion Hose”.

Located just blocks away from Andrews residence in Historic Jim Thorpe PA.  The Building was sold to Purple Audio by the Mauch Chunk Historical Society.  An entire year was devoted to the gutting and refitting of the new Purple manufacturing facility.  While respecting the original historic architeture the exterior remains intact and historically correct while the interior reflects a NYC style loft with a hi-tech organic flare.   The second floor is primarily for design and manufacture, and an area designated for an artist lounge, kitchen, bath and views.  More to come on that.

Specifications

·   Maximum output level +27dBu

·   Frequency response 10hz – 70kHz +/- 1db

·   (3db down at 100kHz)

·   Transformer input:

   Mic mode

·   Maximum gain 60dB in single mode

·   Maximum gain 75dB in dual mode

   Line mode

·   Maximum gain 35dB in single mode

·   Maximum gain 50dB in dual mode

·   Direct input:

·   Maximum gain 30dB in single mode

·   Maximum gain 40dB in dual mode

·   Beginning Serial Number 1600 February 2008:

·   Over Current Resettable Fused

·   (prevents any module problem from affecting your rack)

·   ROHS – Lead Free
