5 watts of harmonically rich, single-ended tone!
See something you like? This item is gone, but not forever. It can be special ordered, and even customized!
We can get it fast!
Because of our special relationship with Nolatone we can get this as fast, or faster than anyone in the industry. In some cases, we even have preferred build slots we can offer you.
Want to know when one lands?
Notify MeWant to discuss a special order?
Harmonically rich is an understatement with this one! As with any 5 watt tweed-style amp, you know you're getting into some dirty territory. However Paul from Nolatone wanted to get away from the common 5 watt aesthetic of turning your volume past 3 and already getting a super saturated tone. The Junebug 2 gives you much more tweakability allowing you actually find that 'verge of breakup' sound at a decent volume, making it great for the studio or even live! I mean, how often are you able to gig with a 5 watt amp? However don't be afraid to venture farther on the volume knob because beautiful, swarthy, hot-rodded gain awaits.
If you are famliar with the classic Tweed Champ or Princeton amps, your notion of what 5 watts sounds like is possibly based on those. You may well be startled when you first crank up the Junebug2. You may find yourself looking in the back to verify there really is just 1 6V6 back there! Well, in true Nolatone style, Paul is usually looking to serve up a healthy dose of Holy Smokes factor and the Junebug 2 delivers that in spades. Several enhancements have been made to the classic Tweed Champ/Princeton power section design to deliver this, not the least of which is the mondo output transformer.
Driving this muscular output section is the clean simplicity of a single channel design featuring our special pentode input stage for great dynamics and pedal compatibility. The input stage feeds a circuit based on the classic Plexi cathode follower driven tone stack. Junebug 2 kicks it up a notch or three adding an extra gain stage which allows smoking high gain hot-rodded Plexi tones, but without sacrificing an entire range of killer classic rock tones!
In the process of the 3+ year task of designing the unique Nolatone high gain preamps found in the Wicked Garden and Wicked Johnny, I've learned there is great benefit to not going TOO FAR with adding gain stages. These channels, including the Junebug 2, have enough gain on tap to get into singing compressed preamp overdrive, and to achive these gain levels, turn the input gain/volume controls up to higher settings. This is by design so mucho magic can be found in the mid to lower gain settings further down on the dial.
How many high gain amps have you played that were already too gainy turned up 1/4 of of the way? This is NOT a problem with the Junebug 2!
The controls are Volume (pull boost), Bass, Treble, and Master. An enormous range of tones are available from this configuration in spite of its simplicity, even more than the former two channel Junebug! This is thanks to the improved tone shaping from the Bass and Treble controls, and more fun still is added with a tug of the volume control engaging the Pull Boost.
Plenty of cleaner sounds are available by setting the Volume control for lower gain settings and opening up the Master volume for more overall output to the power section. Though a 5-watt amp is generally not thought of for clean tones, very nice clean tones can be had here. Crank up the volume and find a whole world of tones ranging from chewy blues to crunchy classic rock, all with great touch sensitiity and dynamics, with still more options thrown in thanks to the standard Boost function.
Further up on the volume control awaits screaming overdrive with singing sustain and sweet preamp compression a-la hot-rodded Plexi. The high gain settings sound amazing at any volume and for late night jamming, the Mastercontrol works exceptionally well allowing singing overdrive at whipsper levels with a gradual taper up to louder levels, so no more waking the baby due to touchy master volume controls!
There is something special about how this new circuit works with the Junebug 2 output section. It is not as bright as it would be in a traditional Plexi style output section which makes for ultra sweet, smooth overdrive, but retaining that classic "chime" that shimmers` through the crunchy overdrive tone. This also makes for a recording amp that tracks like it's already been EQ and compressed!
At Nolatone Ampworks we hand build our amplifiers one at a time using ultimate care and attention to detail to create an instrument that will last a lifetime and deliver tone and feel that will allow you to express yourself in ways you may never have thought possible!
We do this by using only the highest quality parts, well thought out circuit layouts, and impeccable build quality.
Some highlights of the quality you receive with a Nolatone Amplifier:
Custom wound Mercury Magnetics transformers
Custom layouts using point-to-point or turret board depending on design.
Circuit construction performed by U.S. Military trained soldering tech.
1 Watt Carbon Film resistors in the audio path
Circuit components chose for best tone and reliability
High Quality German made F&T or Sprague Atom Filter Caps in the power supply
Critical tube positions cushion mounted to for minimized vibration, reducing microphonics and tube reliability issues over time (applies to models 15 watts and above)
10 amp Carling switches. Can you say "Ka-CHUNK"?! (applies to our higher power models)
Switchcraft Jacks
All these things make a difference, and together make a HUGE difference!
Rather than regurgitating the traditional chassis/circuit layouts from popular amps of yesteryear, we put a lot of though into how these layouts can be improved:
We locate our transformers on opposite ends of the chassis for more direct access to lead connections, in addition creating better balance when carrying the amp. Signal leads and high voltage leads are very well isolated from each other. This minimizes noise and maximizes stability.
We design our chassis using CAD software to optimize circuit layout.
Some Notes on Soldering
This one is often overlooked, but we believe very important for long term reliability. Looking inside many an amp, vintage to the absolute top ranked boutique offerings of today all too often "blobby" solder joints can be seen.
Using too much solder can conceal potential problems with the joint. It's possible that years down the road, a contamination in a solder joint, or a cold solder joint will cause a problem, and this type of problem is notoriously difficult to track down, and that translates to EXPENSIVE to fix!
The US Navy Aviation community, where Paul was trained to solder, has strict requirements for soldering as the equipment is subjected to extreme conditions including vibration, high g-forces, salt water, etc. These requirements dictate that a proper solder joint should have enough but not too much solder. A lead should be visible on the turret with a concave flow of solder bonding it to the surface of the turret/pin/etc. This type of solder joint is far less likely to cause problems after leaving the builders bench.
Power Output | 5 watts |
Output Tube | 1 - 6V6 Cathode Bias |
Preamp Tubes | 2 - 12AX7, 1 - 12DW7 |
Rectifier | Solid State Plugin (Octal socket wired to support 5Y3/GZ34/etc) |

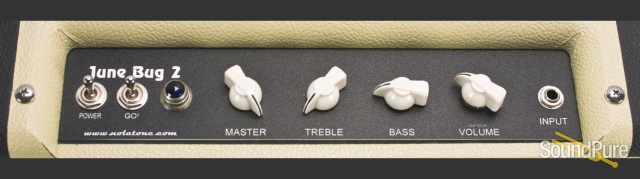

Controls | Volume, Pull Boost, Bass, Treble, Master |
Small 1x12 Combo | Dimensions: 18" W, 16" H, 10"/11" D (slant front) |
