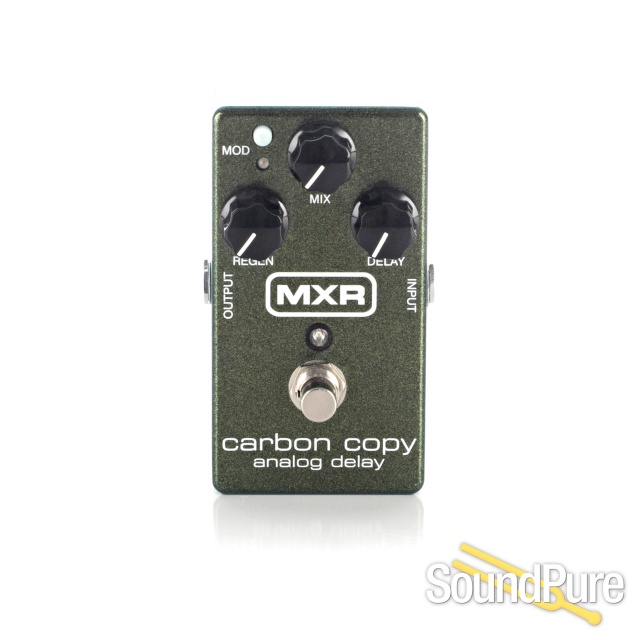

MXR M169 Carbon Copy Delay Pedal - Used  From MXR Pedals

600 ms of time/true bypass/modulation on repeated signal

Close

Buy Pre-owned from Sound Pure with Absolute Confidence

Sound Pure's dedication to pre-owned products is unprecedented in the industry. We are a small team of dedicated experts that buys, trades, and consigns. We are trusted by customers all over the world. Our curated collection, is thoroughly tested and inspected by some of the best in the business. Our inventory is constantly changing, ever-evolving, with some items sold before reaching the website. Looking for something specific? Have questions about this product's condition or history? Want more photos, or to simply chat with an expert who's had his hands on this actual piece? Contact us now.
Our Current Used/Vintage Collection »

Sound Pure's Consignment Program »

Luthier Certification for Used Instruments »

MXR Pedals

"Gone, Baby, Gone"

This one is sold. Don't miss the next one. Some things never even make it to the site so stay up to date on our used collection.

We get in many oddities, rare and vintage products, most of which go fast. If you're on the hunt for something specific, something unique, or something priced right, let us notify you on our used collection before the items even hit the site.

Want to know if one lands?

Notify Me

Want to discuss what's coming?

What We Think

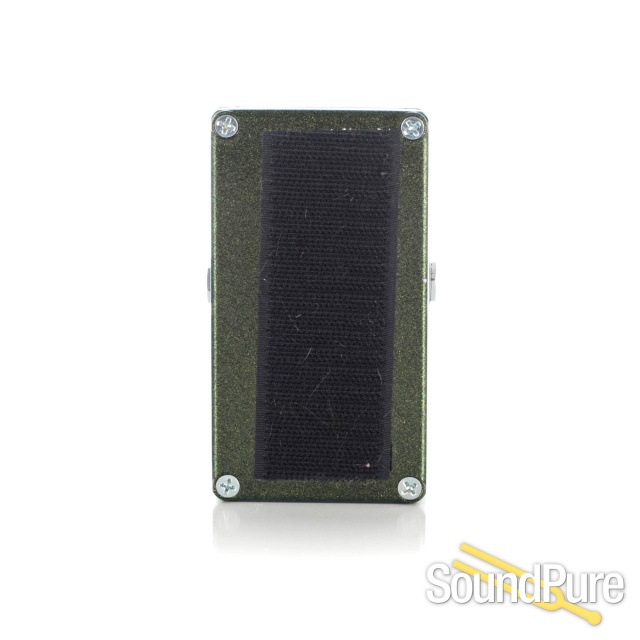

Condition: Used, Very Good (velcro on bottom)

Manufacturer's Description from MXR Pedals

The Carbon Copy Analog Delay delivers rich, warm bucket-bridgade delay with up to 600ms of delay time and modulation.

Go from crisp "bathroom" slap echoes to epic, Gilmouresque delays with the MXR Carbon Copy Analog Delay. Featuring 600ms of delay time with optional modulation, and a three-knob layout that controls Delay, Mix, and Regen. In addition, there are two internal trim pots that offer user-adjustable width and rate control of the modulation for even more tonal options. All done by a completely analog audio path for authentic rich, warm analog delay—made possible only by old-school analog bucket brigade technology. True bypass.

MXR Pedals

About Manufacturer

MXR Pedals Distributed by Dunlop Manufacturing

Specifications

SPECIFICATIONS

Input Impedance 1 MΩ

Output Impedance 1 kΩ

Max Input Level +5 dBV at 500 Hz

Max Output Level +8 dBV

Noise Floor*

Mix at Max CW -96 dBV

Mix at Max CCW -104 dBV

Delay Distortion <1% at 1 kHz,

-5 dBV Input

Delay Time 20 ms to 600 ms

Noise Reduction 2:1 ratio

Modulation Speed 0.2 Hz to 2.2 Hz

Bypass True Hardwire

Current Draw 26 mA

Power Supply 9 volts DC
