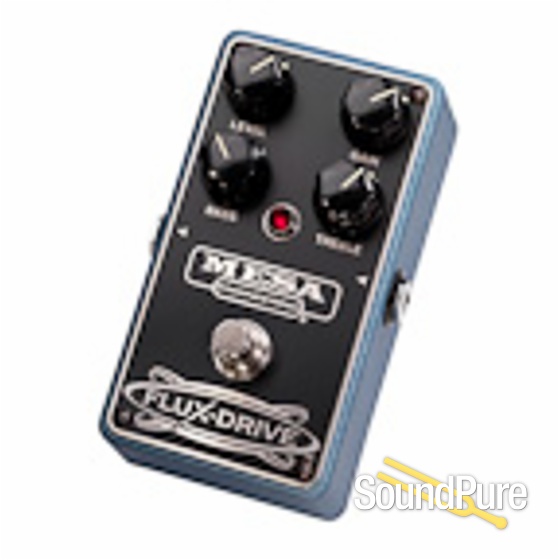

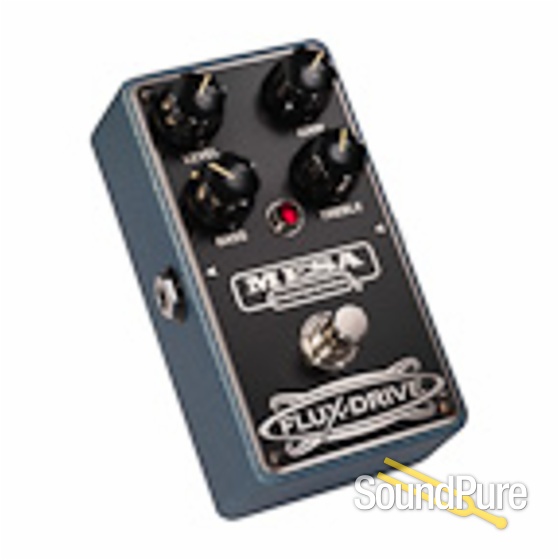

Mesa Boogie Flux Drive Overdrive Effect Pedal  From Mesa Boogie

Mesa Boogie

$179.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $15/mo.

Manufacturer's Description from Mesa Boogie

The FLUX-DRIVE™ Overdrive+ is an overdrive for those who want more of all the best things from an overdrive! It has more liquid gain and enhanced sustain that easily feeds into rich harmonic overtones making it incredibly addictive and inspiring to play, especially to enhance a crunch or higher gain amp channel! It also offers a more complete tone-shaping network with individual Treble and Bass controls. This architecture makes the FLUX-DRIVE a more complete preamp with added versatility beyond that of most overdrive pedals.

Mesa Boogie

About Manufacturer

Forty-five years and thousands of satisfied customers later, MESA/Boogie® Ltd. hand-builds the fifth generational offspring of that pivotal amplifier (and many more) now known around the globe as the MARK I Boogie®; the world’s first high gain, high power, compact 1x12 amplifier. That revolutionary little combo is the “missing link” in amp design... the pivotal nexus between Vintage and Modern guitar amplifiers. When it comes to amplified guitar, there’s really just two epochs… before Boogie, and after Boogie.

Specifications

PRODUCT FEATURES:

  • Designed and Hand-Built in Petaluma, California, USA
  • True Bypass On/Off Switching - Bypasses all circuitry when off to ensure no tonal loss
  • Gain Control allows you to dial in the perfect amount of vocal-overdrive, dynamic to sustaining
  • Master Level Control provides a variable range of signal boost up to +20db



  • Bass & Treble Controls provide +/- 12db of EQ boost or cut for exceptional tone shaping
  • On/Off Status LED
  • 9V Battery Powered or optional AC Powered via External Power Jack Input
  • Input & Output Jacks (Nominal Input -20 db)





SPECIFICATIONS:

  • Dimensions (W/D/H): 2.87" x 4.77" x 2.28" (73mm x 122mm x 58mm)
  • Weight: 0.802lbs (364g) with battery, 0.702lbs (319g) without battery
  • True Bypass Switching
  • Battery Type: 9VDC (one)
  • Power Consumption (Current Draw): 9VDC/15mA



  • External Power Supply (Not Included):
    WARNING!!!  To avoid immediate damage and voiding the warranty, the External Power Supply MUST be 9VDC  with aNEGATIVE CENTER plug polarity and a jack plug size of 2.1mm x 5.5mm.
  • Input Impedance: 1M Ohm (500k Ohm minimum)
  • Output Impedance: 10k Ohm
