HEDD Type 07 MKII Studio Monitor Pair  From HEDD

Innovative "Air Motion Transformer" Tweeter design and flexible I/O cabilities make these monitors perfect for any listening environment.

HEDD

$1,798.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Contact us for up-to-date delivery estimate.
Payments as low as $40/mo.

Manufacturer's Description from HEDD

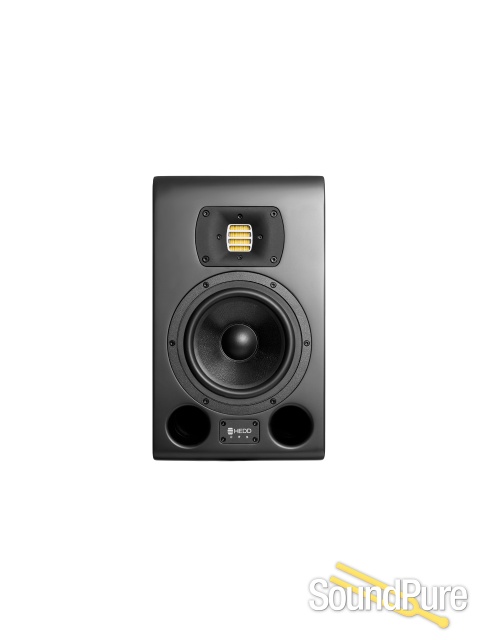

Our Type 07 studio monitor could be described as a classic nearfield monitor speaker, although that would not nearly do justice to its versatility and powerful sound. On first glance, this model’s standard size and classic setup with a 7” woofer and a HEDD Air Motion Transformer do not leave much room for additional technological advances. Yet the careful adjustment of its various components, particularly the way in which casing, amplifier, and diaphragm interconnect, creates a degree of sonic stability, strength, spatiality, and transparency that amazed us from the very first stages of this model’s development on. With its 2×100 Watt amps and its extremely well balanced frequency response, the Type 07 monitor sounds much bigger and more mature than its moderate size and sleek design make it appear. It is precisely for this reason that there is hardly a field of audio production, which the Type 07 is not ideally suited for: its clever design makes it an especially good player in broadcasting contexts as well as in recording and mix-down studios.



Our Type 07 studio monitor comes, like all models of our Series ONE, with XLR and RCA connections. In addition, it also features an empty slot that allows for a wider range of digital functionality. At the moment, we offer HEDD Bridge modules that can handle Dante (Audio-over-IP) transport.



HEDD LINEARISER®INTEGRATION

Implemented in the MK2 and subwoofer models is the HEDD Lineariser®, a phase linearisation tool that leads to perfect impulse responses andan audibly improved spatial reproduction.



»CoP« TECHNOLOGY (Closed or Ported)

Ever since there have been loudspeakers, there have been 2 different design approaches toget a good bass response: closed box design, sometimes called infinite baffle, and bass reflexspeakers, or ported designs. By offering removable plugs for the bass ports, combined withadvanced FIR (Finite Impulse Response filtering), we now give our users the choice betweenthese two worlds: A pin-point transient response / optimum accuracy (closed cabinetapproach) or the advantages of a dynamic and low-reaching bass-ported design withincreased SPL.



 THE FIRST LINEAR SUBWOOFER / SATELLITE SYSTEM

(GDC for Group Delay Compensation)

We are introducing a completely phase linear Sat-Sub system, a real first. These are the first Satellite Sub systems that are completely “...right in time” by applying switchable group delay at the satellite output. The potential listener distances between subwoofers and satellites can be compensated in a ± 2 m range, together with HEDD MK2 monitors a Linear Phase satellite system can be realized.





HEDD

About Manufacturer

Physicist Klaus Heinz and his son, Mastering Engineer / Musicologist Dr. Frederik Knop founded HEDD | Heinz Electrodynamic Designs in October 2015. As acoustic professional and music enthusiast, Heinz’ life oscillates between the worlds of physics and sound. He is the founder of several renowned companies, among them loudspeaker manufacturer ADAM Audio, as whose Managing Director and Head of Research & Development he served for many years. For the past forty years, Klaus Heinz has dedicated himself to developing high-end loudspeakers that have become established constants in diverse fields: from music production processes in professional recording and mastering studios to radio broadcasting, installation and finally home HiFi, his loudspeakers can be found in a great variety of contexts. Despite their application in diverse tonal and professional contexts, Heinz’ loudspeaker designs have always stayed true to the same ideal of sonic excellence: they have, above all, always aimed to produce complete accuracy and outstanding signal fidelity while being less concerned with tinging recording audio material with pleasing tonal colors. It comes, therefore, as no surprise that the product development department at HEDD | Heinz Electrodynamic Designs is fully committed to the idea of creating versatile and surgically precise studio monitors that producers and sound engineers from a wide array of musical branches can use as tools for their audio monitoring processes. HEDD’s loudspeakers can thus be understood as the newest and most advanced products that Klaus Heinz and his team have developed over the years.



Not only are HEDD’s loudspeakers produced in Berlin, they also feature an unprecedented level of digital signal optimization (HEDD Lineariser®) and connectivity (HEDD Bridge), improved diaphragm materials as well as ultra-efficient amplifiers. Last but not least, these brand-new studio monitors take another technological step in the development of the Air Motion Transformer. Years ago, Heinz revolutionized the professional world of audio production by introducing his first Air Motion Transformer. Today, AMT systems are used wherever an extremely precise and vivid reproduction of high frequency material is called for.

The HEDD team consists of musicians and loudspeaker nerds, electrical engineers, graphic designers, and admin pros, all of whom are fully committed to the creation of this new brand.

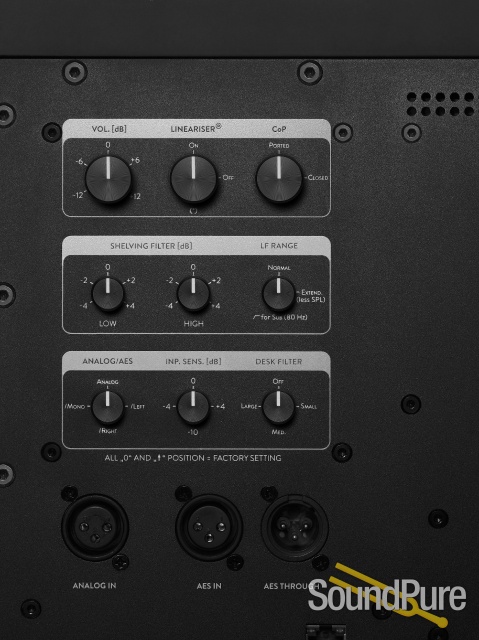

Specifications

Woofer (honeycomb diaphram):    7" (1.5" voice coil)

Tweeter:    HEDD AMT

Crossover frequencies (48 dB/oct filters):    2.3 kHz

Input 1: analog stereo (2 ch) / Impedance:    XLR / 22 kΩ

Input 2: AES "in":    XLR

Output: AES "through":    XLR

Volume:    ±12dB

Input sensitivity (A/D modulation):    -10/-4/0/+4 dB

HEDD Lineariser®, disengageable, delay:    10 ms

Shelve filters high/low (.5 dB steps):    ± 4 dB

LF range (-3dB): normal/extended/satellite:    38/30/80 Hz

Desk Filter: Small/Medium /Large    180 Hz (-1 /-2/-4dB)

AD/DA Conversion:    96kHz / 24-bit

Frequency response (-3dB):    38 - 40,000 Hz

Max. SPL (sound pressure level) per pair:    116 dB SPL

Power Amplifier /Universal Mains 110-240V:    2 x 100 w/ ICE power

Cabinet with satin lacquer finish:    black or white

Dimensions (H x W x D):    370 x 220 x 300 mm

Weight:    9.9 kg

Warranty:    2 years
