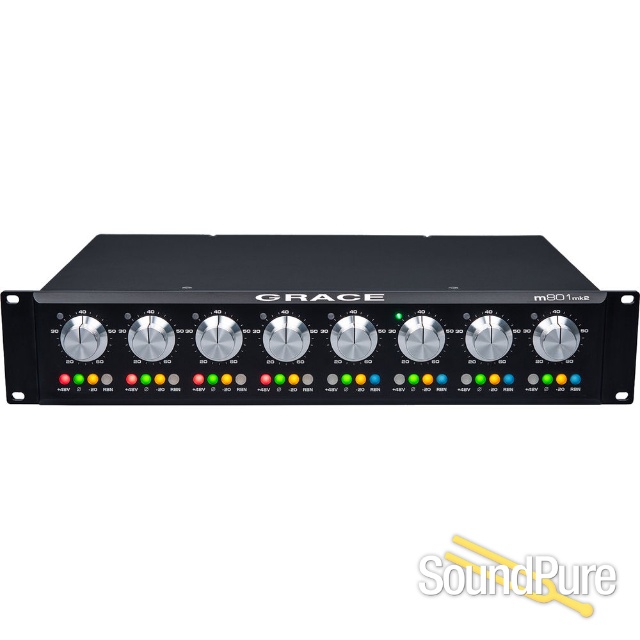

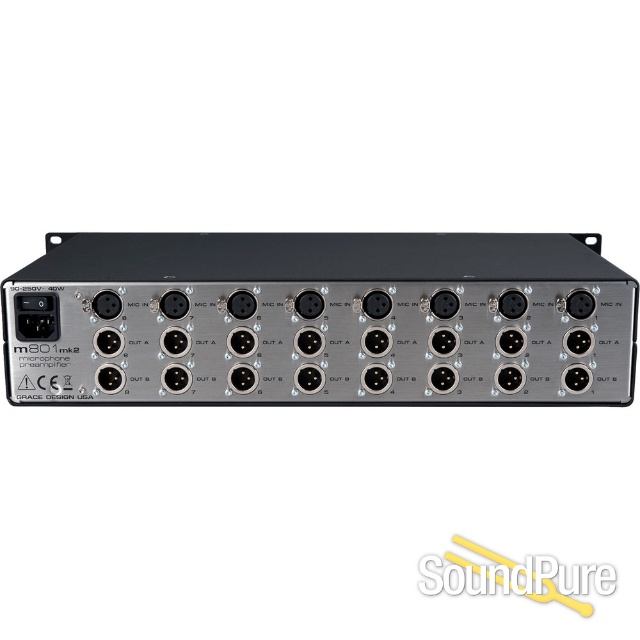

Grace Design m801mk2 Mic Preamp  From Grace

All Analog High Fidelity Eight-Channel Microphone Preamplifier

Grace Design

$3,990.00

Retail:  $4,200.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $90/mo.

Want a lower price?
Get Discount

Check your email inbox now!

Close

Our best price is too low to print,
but we'll email it to you immediately!

learn more »

How to get a lower price, instantly!

Why do we do this?

Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.

Manufacturer's Description from Grace

Preliminary Information



In 1994 we released the Model 801 microphone preamplifier,¹ which was the first production model for Grace Design. It set a new standard of sonic quality and reliability for microphone preamplifiers, providing much better performance than the built-in circuits in the recording consoles of the day. It featured independent circuit boards for each channel, gold contact rotary gain controls wired with precision metal film resistors, a musical sounding transimpedance (current feedback) gain stage, gold contact sealed relay signal switching, and there were NO electrolytic capacitors in the signal path.²

12 years later, we released the next generation of this preamplifier, renamed the m801,³ which refined the design features of the previous version, and added a fully differential signal path and Ribbon Mic mode, which optimized the signal path for low output ribbon microphones.

Now 20 years later, the next generation is here, now named the m801mk2. Newly designed amplifier circuitry adds to the features of the previous versions while significantly improving noise performance at low gains, increasing low frequency bandwidth for improved phase response, improving RFI/EMI immunity for today’s ever noisier world,⁴and eliminating the external DC power supply for a cleaner, simpler design.⁵

Today’s modern recording studio is invariably loaded with incredible sonic processing capability, making the opportunity to add great sounding color routine. But capturing the magic at the front end is still the job of skillfully designed analog hardware, for which there is no substitute. This makes our preamps more relevant than ever. If your source sounds great and your mic is plugged into the m801mk2, you’ll be rewarded with a recording of breathtaking depth and realism. If you choose to color it up from there, you’ll be starting with the best possible raw material you can get.

The m801mk2 will be begin shipping in November, 2018.



1. We’re seriously dating ourselves here, which is fine because nearly every single Model 801 we built back then is still in service today.
2. Electrolytic capacitors sound bad, and contribute to the dreaded, hard edged ‘solid state sound’. Grace preamps sound impressively musical and open.
3. Bored lawyers at a big audio company informed us the word ‘model’ in front of the number ‘801’ was a copyright infringement, so we changed it to just ‘m’.
4. Your cell phone, WiFi antennas, bluetooth thingies, the odd transmission from Mars to your cat - that stuff can sneak into your audio and cause problems.
5. The new, carefully designed universal switch mode power supply is quiet, light and conveniently operates on mains voltages from 100-240VAC.



Grace Design

About Manufacturer

Audio engineer/designer Michael Grace originally began building single order custom audio products for a small, devout following of recording engineers and artists is 1990. Before long, the word had spread about Michael's custom microphone preamplifier designs, which were said to outperform anything else that was commercially available. Based on an increasing demand for his mic preamp design, in 1994 Grace Design was founded and began production of the original 801 mic preamp. Not only did the 801 provide a new level of audio performance and functionality, it helped to establish outboard microphone preamplifiers and direct-to-tape recording as a new standard in professional audio production. Over the years, Grace Design has maintained a steady, methodical pace to developing new products and technologies. Our product line has evolved into a definitive collection of microphone preamplifier configurations and other unique professional audio products. While the professional audio industry is inundated with products seemingly designed for obsolescence, we pride ourselves on providing audio professionals with the finest tools imaginable. Located in Boulder, Colorado, Grace Design continues its mission into the new millennium. As our company grows, we continually strive to improve our production methods to make sure theya re exact, efficient and environmentally sound. Their employees are treated like family and they strive to improve our production mehods to make sure they are exact, efficient and environmentally sound. Our employees are treated like our family and we strive to maintain our business relationships as friendships. And above all, we remain driven by the original passion that founded the company- the love of music.

Specifications



FREQUENCY RESPONSE
@ 20dB gain ± 3dB 150Ω source 3.2Hz-530kHz
@ 20dB gain ± 0.2dB 150Ω source 14.8Hz-109kHz
@ 40dB gain ± 3dB 150Ω source 3.2Hz-500kHz
@ 40dB gain ± 0.2dB 150Ω source 15.4Hz-103kHz



THD+N 22-22kHz
@ 20dB gain +20dBu out, 1kHz <.0004%
@ 40dB gain +20dBu out, 1kHz <.0008%
@ 60dB gain +20dBu out, 1kHz <.0070%


INTERMODULATION DISTORTION
@40dB gain +20dBu out
SMPTE/DIN 1:1 (50Hz, 7kHz) <.0015%
SMPTE/DIN 4:1 (50Hz, 7kHz) <.0020%

NOISE - REFERRED TO INPUT
@60dB gain 50Ω source -130dB
@60dB gain 150Ω source -127dB
@60dB gain 600Ω source

-123dB




PHASE DEVIATION
100-20KHz @40dB gain

<3°





CROSSTALK
Any Channel @40dB gain 1kHz -140dB
Any Channel @40dB gain 10kHz

-130dB









CMRR
@60dB gain, 3.5Vcm, 1KHz >85dB
@60dB gain, 3.5Vcm, 10KHz

>75dB









PHANTOM POWER
Voltage +48V +0.9/ -0.0
6.8kΩ resistor match tolerance

+/- 0.1%





MAXIMUM OUTPUT LEVEL
1kHz, 100KΩ load

+28dBu



IMPEDANCE
Input 8100Ω
Input, Ribbon Mode 20KΩ
Input, Pad Engaged 1.3KΩ
Output

150Ω


DIMENSIONS
Weight 13lbs (5.9kg)
Height 2U
Width 19”
Depth

10”


POWER CONSUMPTION
100-240VAC 50/60Hz40 Watts max
