Gordon Audio Model 5 with GC32 Gain control  From Gordon Audio

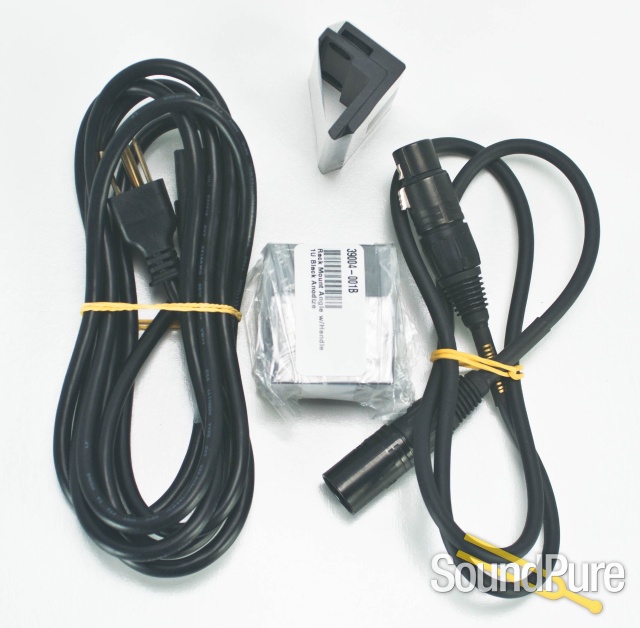

Like new, Mint condition with original packaging, Rack mount brackets, power cable and user guide. The original warranty is transferable to the new owner and is valid through June 1, 2019.

Close

Our product photos are the actual, specific serial number for sale!

This specific item was photographed by us here in Durham, North Carolina. We are a very small team dedicated to providing you the most accurate photos possible, through our obsessive focus - individually photographing nearly everything that comes through the door. Questions about what you see? Want more information, photos, or just a friendly conversation with someone that cares and who has actually had their hands on this exact item? Contact us now!
Close

Buy Pre-owned from Sound Pure with Absolute Confidence

Sound Pure's dedication to pre-owned products is unprecedented in the industry. We are a small team of dedicated experts that buys, trades, and consigns. We are trusted by customers all over the world. Our curated collection, is thoroughly tested and inspected by some of the best in the business. Our inventory is constantly changing, ever-evolving, with some items sold before reaching the website. Looking for something specific? Have questions about this product's condition or history? Want more photos, or to simply chat with an expert who's had his hands on this actual piece? Contact us now.
Our Current Used/Vintage Collection »

Sound Pure's Consignment Program »

Luthier Certification for Used Instruments »

Gordon Audio

"Gone, Baby, Gone"

This one is sold. Don't miss the next one. Some things never even make it to the site so stay up to date on our used collection.

We get in many oddities, rare and vintage products, most of which go fast. If you're on the hunt for something specific, something unique, or something priced right, let us notify you on our used collection before the items even hit the site.

Want to know if one lands?

Notify Me

Want to discuss what's coming?

Manufacturer's Description from Gordon Audio

HIGHLY ACCLAIMED 2-CH MICROPHONE PREAMPLIFIER. State of the art, high resolution, low distortion, industry-revered mic preamp with completely discrete signal path, top build quality and incredible sound.

SOFT SIGNAL PATH

Preamplifier design concepts have not changed much since the advent of electronic amplification. Fixed elements (gain and buffer stages) and variable elements (attenuators or feedback) are arranged in a fixed signal path. Signal is amplified far more than is required, attenuated to the desired level, and buffered at the output with little regard for the load.

Gordon Instruments has developed a "soft signal path" concept where each stage and the path itself are variable, optimized automatically for the selected gain and the output load. This innovation has been incorporated into the Gordon Microphone Preamplifier System along with high-resolution analog design, component, and assembly technologies, forming a very powerful sonic combination.

TRUE VARIABLE GAIN

The primary source of distortion in any preamplifier is gain. In conventional microphone preamps, the gain in the signal path (or open-loop gain) is fixed, equal to the maximum setting of the gain control(s) plus make-up gain for loop feedback, filters, etc (op amps typically have over 100dB of gain to allow for feedback). Because the gain is fixed, gain control is actually performed by variable attenuators or by variable loop feedback. As a result, the audio input signal is amplified by large amounts of fixed gain only to be cut back down to the level desired at the output.

In the Gordon mic preamplifier, the gain in the signal path is variable, equal to the actual setting of the gain control, with no loop feedback, no attenuators, nor the associated redundant gain. In addition to gain, dynamic range and distortion are also optimized for each control setting. The audio signal at the input is amplified only by gain equal to and optimized for the gain control setting, significantly improving every aspect of sonic and measured performance.

OUTPUT LOAD COMPENSATION

Outboard microphone preamp outputs see a wide range of loads due to signal frequency, cables, transformer inputs, and electronic inputs, varying from less than a hundred to over a million ohms. Distortion varies with load and can be minimized for a particular load by setting the operating parameters of the typical output stage. Change the load, however, and distortion increases.

Automated output load compensation in the Gordon mic preamp couples an output load sensing circuit to a variable-parameter output stage.  The output signal is monitored to determine the load while the output stage parameters are adjusted accordingly to minimize distortion.



Gordon Audio

Specifications

BENEFITS

  • Extremely high resolution, low coloration
  • Combines wide dynamic range with wide bandwidth and both over the entire gain range, not just a "sweet spot"
  • High compliance input/output - high performance with a wide variety of input sources and output loads
  • Robust design and build

HIGHLIGHTS

  • True variable gain - no excess gain, no attenuators, no loop feedback
  • Output load compensation for low distortion output into any load

FEATURES

  • Overload-proof input clips after the output and without pads
  • Separate gain control with peak indicator, mute, and phase invert
  • Remote control eliminates cable losses and interference by locating the preamplifier near the microphone or instrument
  • Low noise, high gain (and short mic cables with remote) for optimal performance with ribbon microphones

Signal path

  • Balanced, high-impedance input thru parallel 1/4" and XLR connectors with switchable input impedance accepts mic, line or DI sources
  • Two megohm input impedance eliminates current-related losses and load distortion in mics
  • Balanced, symmetrical, discrete topology from input to output – no transformers, no op amps
  • FET gain and direct-coupled output stages with auto-bias
  • Select point-to-point wiring
  • Non-magnetic enclosure
  • Extremely high input-output Z ratio for other applications including phono preamp, headphone amp, and line/buffer amp
  • Support function
  • Local, discrete voltage regulation for each channel
  • Standby mute function enabled during power-up sequence, low line, and phantom on/off
  • Status indicator shows operation of gain control, output stage, and standby mute
  • Shielded internal primary supply with low leakage current and extremely low noise

Mechanical

  • No steel – rugged, anodized aluminum enclosure and stainless steel fastening hardware
  • Removable rack kit and optional outriggers for freestanding applications
  • Gold-plated contacts and active retention in all internal connectors
  • Fully enclosed, gold-plated contacts in panel switches and relays
  • Low-profile buttons and solid aluminum knobs with two set screws on ¼" metal shafts – no toggle switch bats, plastic knobs or terminal strips to break
  • Protected panel graphics are printed on the back of clear overlays
