Sound Pure's Take
These converters are no longer available new, but they are still a very high-quality unit and this eight channel D/A is priced to go. It's capable of DSD recording, and will ship with a DB25 cable designed to interface with the DSD connections on this unit.
From Other (Miscellanous Used/Vintage/Consign)

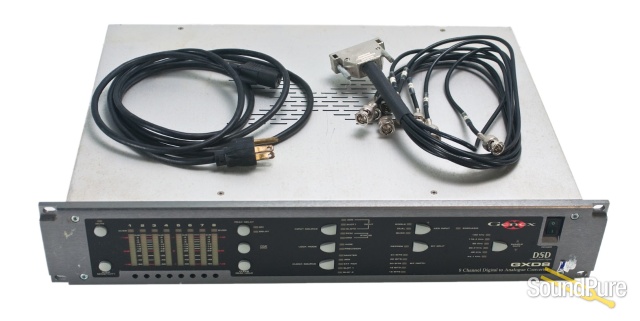

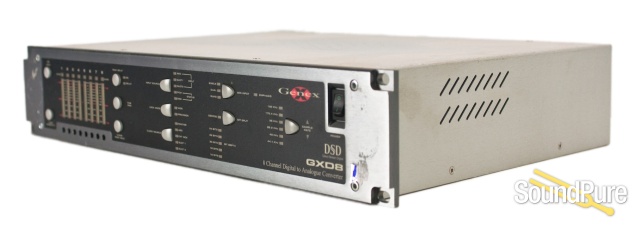

The GXD8 is a professional 8-channel digital to analog audio converter, supporting all standard sample rates from 44.1kHz up to 192kHz at resolutions of 16, 20 or 24 bits. It also supports the Sony DSD format (1-bit, 2.8224MHz sample rate) when married with the included DSD upgrade kit.
All settings are available from the intuitive front panel with no complex menu structures to navigate. The front panel also includes 8 high resolution peak power meters (PPMs), one for each channel.
As standard, the GXA8 is fitted with four AES/EBU digital inputs providing eight channels of analog audio output up to 96kHz and four channels of output for 192kHz.
D/A Performance
Resolution: up to 24 bits
Signal/Noise ratio (un-weighted): Better than 113dB @ 20kHz bandwidth
THD + Noise: Better than -96dB @ -1dBFS, 1kHz
Frequency Response (+/- 0.5dB): 5hz to 22kHz @ 48kHz Fs, 5hz to 44kHz @ 96kHz Fs, 5hz to 80kHz @ 192kHz Fs
Power Requirements: 100-120V, 200-240V. 50/60Hz (switched)
Warranty
This item is sold without the Sound Pure 3-year warranty (used / B-stock / dealer-exempt). Coverage terms for items in this category live in Terms & Conditions, Section 27.
Returns
Try Before You Buy: 48-hour audition. Program details →
