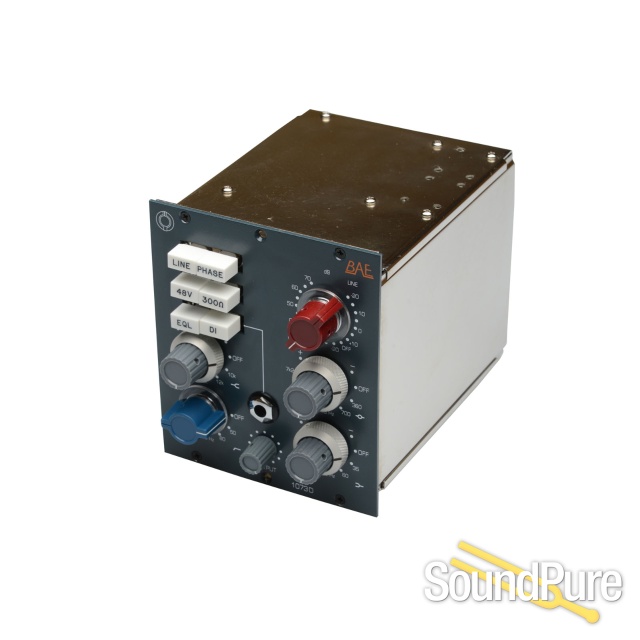

BAE 1073D 500-Series Preamp/EQ Module  From BAE

An entire 1073 with EQ form-fitted into a 500 series format!

BAE

$2,395.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Usually ships 6-10 business days after order.
Payments as low as $54/mo.

Or, apply & pay as little as $54/mo.
0% interest financing available. See all options.

Talk with a Specialist

1073-Style Preamp Blind Shootout: WA273-EQ vs. Vintech X73i vs. BAE 1073 vs. Great River MP-2NV

In this BLIND 1073-style preamp shooutout video, we put the Warm Audio WA273-EQ, the Vintech X73i, the BAE 1073, and the Great River MP-2NV up against each other on acoustic guitar & male vocals. Can you tell which is which? FOR THE RESULTS AND A COPY OF THE HIGH RES AUDIO FILES:(without YouTube compression), give us a call at (919) 682-5552 or email us at proaudio(at)soundpure.com.

Manufacturer's Description from BAE

The 1073D (Deluxe) is essentially a 1073 module with extra high frequencies and a direct input for the 500 series market. Built using the same exact parts as the 10 series module, the 1073D features Carnhill transformers, Elma gold plated switches and Canford wire making this the best sounding Class A mic‐pre EQ module on the block.

Because BAE did not want to compromise, the parts are such that they made this a 3 space wide module for optimal quality in contrast to building a smaller rack space version lacking the same premium components.

  • High Frequency: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
  • Low Frequency: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
  • Mid Range: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz
  • High Pass Filter: 50Hz, 80Hz, 160Hz & 300Hz
  • Phase Button: 180°
BAE

About Manufacturer

BAE are manufacturers of high end microphone preamp/equalizers faithful to vintage designs of the seventies and before. With a penchant for high quality transformers like Carnhill (St lves) and Jensen, everything is as close to the vintage philosophy as possible. Not only that but we insist everything is hand-wired/soldered using discreet electronics and not economized on a circuit board.

Specifications

Frequency Response:
10Hz to -3dB at 55kHz

3 Band Equaliser:
HF: +/-16dB fixed frequency shelving at 10kHz, 12kHz and 16kHz
LF: +/-16dB shelving with selectable frequencies of 35Hz, 60Hz, 110Hz & 220Hz
MF: +/-18dB peaking, fixed 'Q' with, selectable centre frequencies of 0.36kHz, 0.7kHz, 1.6kHz, 3.2kHz, 4.8kHz & 7.2kHz

High Pass Filter:
50Hz, 80Hz, 160Hz & 300Hz

Mic Input Impedance:
≈1200/300Ω

Line Input Impedance:
10kΩ

DI Input Impedance:
≈150kΩ

Output Impedance:
35Ω

Common Mode Rejection Ratio:
100dB min @ 60Hz

Maximum Output Level:
+27.4 dBu @ 600Ω

Power Requirements:
+/- 16VDC - 120mA

Gain dB:
0 to 70 dB

Equivalent Input Noise:
-110 dBu; Unweighted 300kHz Bandwidth

Weight:
5 LBS/2.72 KG

Dimensions in Inches (Module/Rackmount):
4.5W x 5.25H x 5.5D
