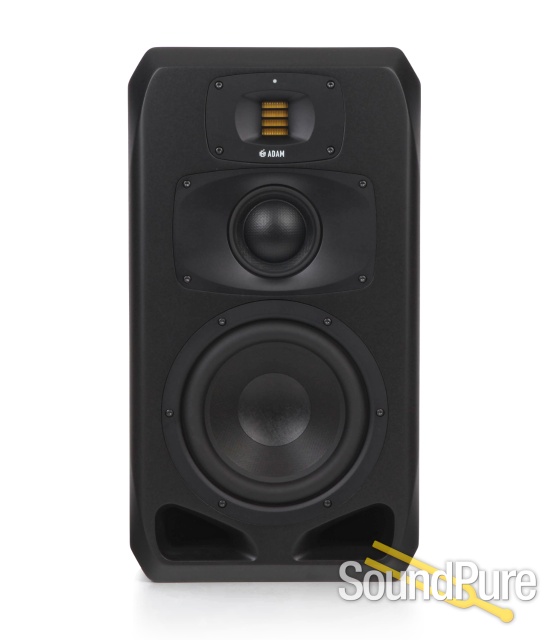

ADAM Audio S3V Active Studio Monitor Pair  From ADAM

The S3V is a three-way studio monitor optimized for vertical use and designed primarily for midfield applications, although it may also be used in more compact listening environments.

ADAM Studio Monitors

$5,999.98

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $136/mo.

Manufacturer's Description from ADAM

Bass frequencies from 32 Hz to 250 Hz are handled by ADAM Audio’s entirely new 9-inch Extended Linear Excursion (ELE) LF driver, which incorporates the company’s equally groundbreaking Symmetrical Magnet Assembly (SMA) and delivers a powerful, extremely accurate low end extending right down into the sub-bass region. Mid-range and HF information is reproduced with equally analytical precision thanks to the combination of ADAM Audio’s newly developed 4-inch DCH mid-range driver and the highly refined S-ART folded-ribbon HF driver. Together with the brand-new HPS waveguide, the latter offers high-frequency reproduction with an extremely broad sweet spot with fine, highly detailed imaging and a natural-sounding sense of depth.

The S Series’ custom-designed DSP optimizes the loudspeaker crossovers to create linear responses for the entire range, as well as providing user equalization and in-room tuning/voicing functions. The DSP also handles the limiter-based high-frequency driver protection, processes the signals from the AES3 digital inputs, and will in time facilitate various expansion options. Software updates can be carried out with ease via the associated USB port, which also allows users to connect computers and control the speakers’ DSP functions via a software front-end.

The S3V’s built-in amplification is generously specified, comprising Class D units for the bass and mid-range drivers (500 W and 300W RMS respectively) and a 50 W Class A/B amplifier for the S-ART tweeter.

Offering flawless reproduction of audio frequencies between 32 Hz and 50 kHz, the S3V is a standout offering for anyone demanding highly accurate imaging and localization from their reference monitors.



Features

  • German Handmade Precision S-ART Tweeter with HPS Waveguide
  • 4" Dome / Cone Hybrid (Carbon Composite)
  • 9“ Woofer (Hexacone)
  • Cumulated Amp. Power RMS: 850 W
  • Frequency Response: 32 Hz - 50 kHz
  • Max. SPL Per Pair at 1 m: ≥124 dB
  • AES3 Digital Inputs And Various Expansion Options
ADAM Studio Monitors

About Manufacturer

ADAM studio monitors are state-of-the-art, no compromise speakers intended for audio engineers who are interested in the truest possible reproduction of their recordings. ADAM monitors have been constructed with one design objective only: to achieve the most realistic sound quality for each speaker in the line. Groundbreaking innovation in electro-acoustic transducers, painstaking design and superior materials are the cornerstones of ADAM Technology. The authentic reproduction of recordings of acoustical events (a frequently discussed and subjective issue) is our yardstick in the unconditional search for the finest product possible. To achieve this goal we combine years of our own musical and acoustic experience and with feedback from the critical 'golden ears' of our professional customers, and double-check the results with the most advanced measurement techniques in order to ensure the finest sound reproduction available at any price. ADAM Audio produces a complete range of both passive and active monitoring systems to suit any given studio environment, from the smallest home/project studios to the most demanding professional environments and applications.

Specifications

WOOFER

Number 1
Basket Ø 9“ (223 mm)
Voice Coil Ø 2" (50 mm)
Cone Material HexaCone

MID-RANGE

Number 1
Type Dome / Cone Hybrid
Basket Ø 4" (100 mm)
Voice Coil Ø 2.4" (60 mm)
Cone Material Carbon Composite

TWEETER

Number 1
Type S-ART
Diaphragm Area 4 inch² (2420 mm²)
Equiv. Diaphragm Ø 2" (56 mm)
Velocity Transform Ratio 4:1
Diaphragm Weight 0.17 g
Waveguide HPS

BUILT-IN AMPLIFIERS

Number 3
Woofer 1
Type PWM
Amp. Power RMS 500 W
Mid-range 1
Type PWM
Amp. Power RMS 300 W
Tweeter 1
Type A/B
Amp. Power RMS 50 W

CONTROL OPTIONS

Input Sensitivity Adjustable
Parametric EQs 6
Room Compensation High-Shelf EQ 1
Room Compensation Low-Shelf EQ 1
Preset Memories 5
Delay 0 ms to 5 ms

INPUT CONNECTORS

Analog XLR
Input Impedance 48 kOhm
Max. Input Level +24 dBu
Digital AES3

GENERAL DATA

Panel Rear
Frequency Response 32 Hz - 50 kHz
THD > 100 Hz ≤0.4 %
Max. SPL per pair at 1 m ≥124 dB
Crossover Frequencies 250 Hz / 3 kHz
Max. Power Consumption 550 W
Weight 55.0 lb (25.0 kg)
Height x Width x Depth 21.1" (536 mm) x 11.5" (293 mm) x 15.0“ (380 mm)
Warranty 5 years (2 years warranty plus 3 years optional with product registration)
Delivery Contents Power cord, Manual
