FEATURES
- Insert your balanced gear such as guitar pedals and old echo fx into your DAW or console via the Transceiver 2
- Active DI-box with up to+20dB of gain. Plug your favorite instrument into your collection of vintage gear via the Transceiver2.
- A re-amping tool.
- A Swiss Army Knife on stage. Connect balanced gear on stage between your instrument and amp.
- Blend function for the inserts.
Overview

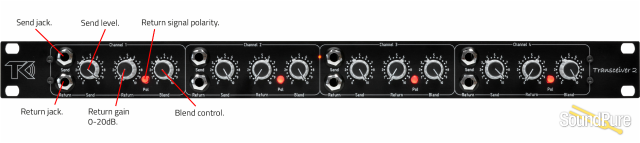

The Transceiver is a four channel insert station.The main function is to convert balanced signals into unbalanced and back again without losing any signal quality. Each channel has a send level, a return gain control, a return polarity switch and a blend control. With the new added blend function you can choose how much of the inserted effect you want to add. The Transceiver 2 is a transformerless balanced design for the best possible signal handling, a flat frequency response and low harmonic distortion and noise. The balanced output has a high driving capability to drive input transformers, also the unbalanced send has a high driving capability.
- Max balanced input
- +27dBu
- Max unbalanced send level
- +21 dBu
- Max return input level
- +21 dB
- Return gain
- 0-20dB
- Return input impedance
- 1Mohm
- Max balanced output
- +27dBu
Features
- Send
- TRS jack
- Send level
- 0 to full
- Return
- TRS jack
- Return gain
- 0-20dB
- Polarity
- flips the polarity of the return signal
Regulated, internal powersupply with a toroidal transformer
Selectable between 115 and 230V
- Power consumption
- 12VA
