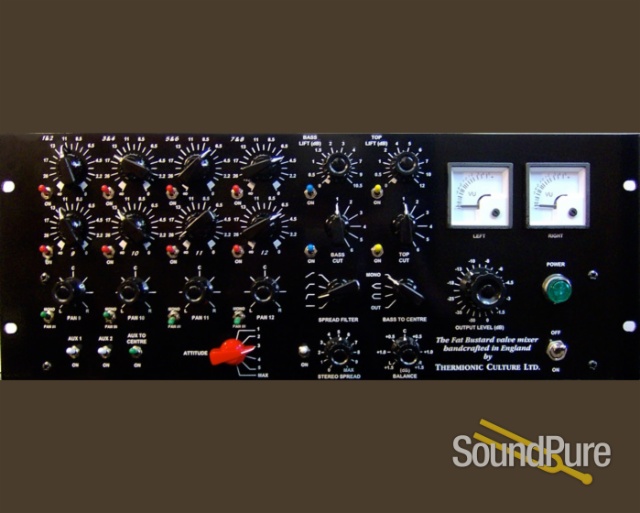

Thermionic Culture Fat Bustard Summing Amp  From Thermionic

12 channel mixing with attitude

Thermionic Culture

Manufacturer's Description from Thermionic


More than just a straight summing mixer, this new offering provides sound shaping possibilities too, with a simple yet powerful bass ( 50Hz ) and treble ( 10kHz ), Stereo Width and Depth controls, and the new 'Attitude' distortion section. The inputs are arranged as 4x stereo pairs and 4 mono, all with mutes, the mono inputs also have pan pots too. Two additional Aux inputs are provided for echo returns and the optional forthcoming Little Bustard 16 channel expander. The Fat Bustard lives up to its name-guaranteeing Big Fat Sounds!

Thermionic Culture

About Manufacturer

Thermionic Culture is focused on producing the very best all valve design audio products. In this day and age of mass-produced solid-state audio equipment it's a refreshing change for a company to constantly strive for the ultimate all valve signal path.

The owners/key people involved at Thermionic Culture are totally dedicated to valve audio equipment, all having many years experience in recording and working with valves. Company founder and designer Vic Keary built his first studio in the late 50's and went onto building Maximum Sound Studios which was later bought by Manfred Mann and renamed The Workhouse, Chalk Farm Studios, and the all valve based studio Chiswick Reach.

Jon Bailes, Thermionic Culture's co-founder is responsible for the mechanical design & visual appearance. Jon has a wealth of experience as a Chief Designer in the electronic manufacturing industry .

Nick Terry engineers on many current albums and singles working recently with artists such as McAlmont & Butler, The Libertines. All this 'real world' experience is an invaluable aid to creating all valve equipment that other artists will no doubt appreciate.

Audio amplification, compression, mixing and equalisation took a backward step when solid-state technology was introduced. Valves are much more real and natural when amplifying and processing audio. We use no transistors or ICs in the signal path. Solid state is relegated to where it works best - in power supplies, although we do use a valve voltage regulator in The Culture Vulture's HT supply.

Some of our circuits take ideas from the 1940s to '60s and refine and update them to produce the low noise and distortion which are expected now. Other circuits are really original! To achieve high standards we use modern components such as 1% metal oxide resistors and polypropylene capacitors where their use is a positive advantage, but we avoid Hi-Fi type gimmicks such as gold plated XLR connectors. We take pride in the construction and reliability of our equipment. To date it is all hand wired using the best quality components. We give a 2-year guarantee against manufacturing defects, though we can only guarantee valves for 1 year. Many valves we use, are Military/Industrial grade. Also, we select and match (where necessary) all of the valves that we supply so a far longer life span can be expected

Specifications

Specifications:

Input Impedance:

8 kohm + (dependant on channel and setting), unbalanced

Output Impedance:

600 ohms, unbalanced

Gain (ch. 1-8):

0 at Attitude 1, + 15dB at Max Attitude

Maximum Output Level (MOL)

+ 26 dBu

Distortion :
(at Att 1)

(at Att 3)

(at Att Max)


0.015%
+8dBm output
0.22%

1+ % (dependent on how hard input valves are driven)

Signal to noise (IEC weighted)

100dB below MOL (at Attitude 1)

Frequency response +/-0.5 dB

9Hz to 30kHz (at Attitude 1)

Max Bass Lift

+11dB @ 50 Hz

Max Top Lift

+12.5dB @ 10kHz

All audio connectors

XLR wired pin 2 signal, 1&3 earth

Valve complement

2 x 5965, 2 x 6SN7, 1 x 12AU7
