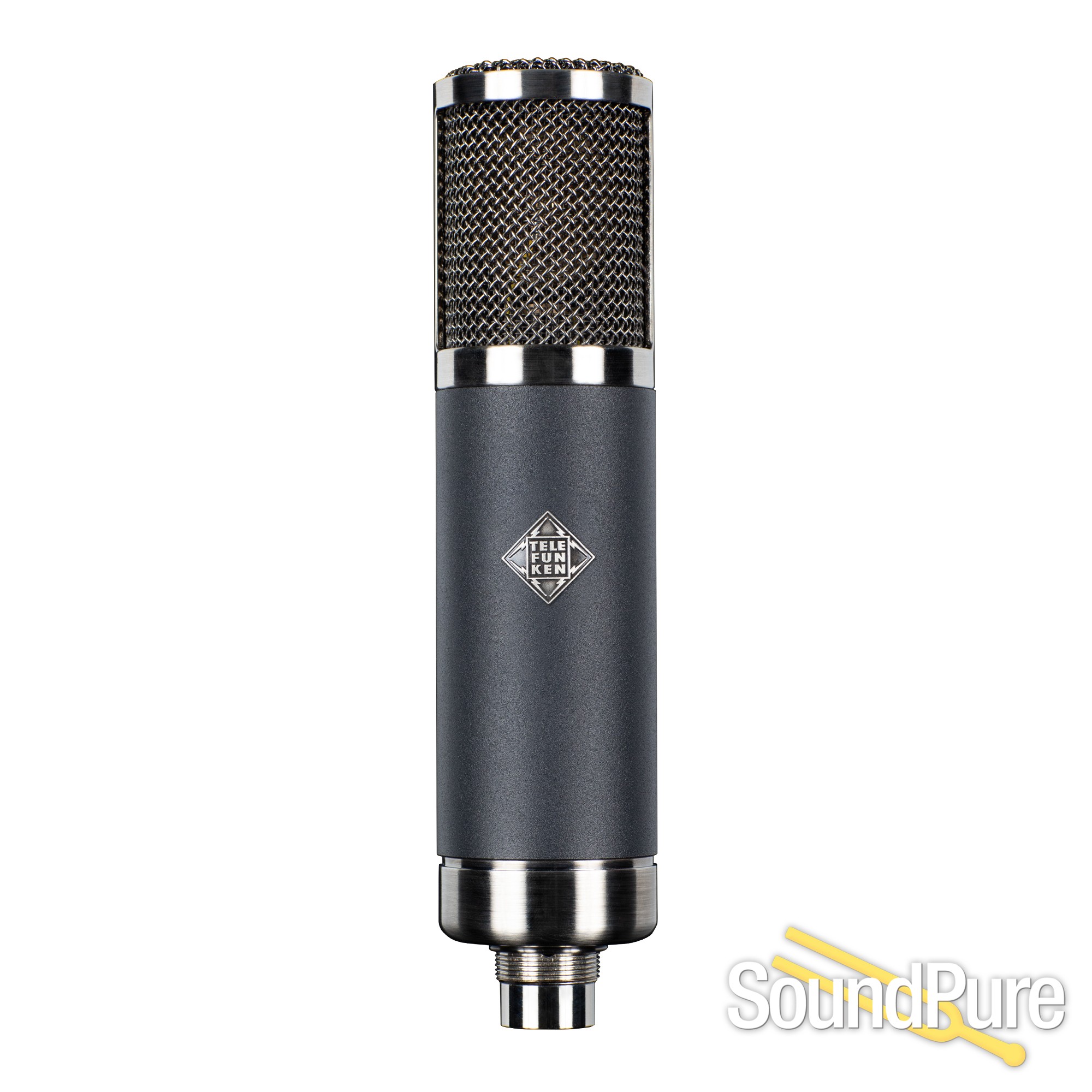

TELEFUNKEN Elektroakustik TF47  From TELEFUNKEN

With a deep low end and a forward midrange, the TF47 delivers a warm and punchy sound reminiscent of the U47 and M49.

TELEFUNKEN Elektroakustik

$1,895.00

Retail:  $2,179.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $43/mo.

Or, apply & pay as little as $43/mo.
0% interest financing available. See all options.

What We Think

This gets the biggest change in the Alchemy line.  TFunk is now putting a K47 style capsule in this mic (previously a K67 style), and this will change the overall sound and texture on this microphone.  You'll find more mid-forward as well as more color/gravel with this mic now that they have changed the capsule.  Guitars, vocals and drums are really going to come alive.  While a K47 capsule, this mic isn't bright as other K47 style clones, and will still have a "vintage" warmth to the top end (not pushed)

The Alchemy Series:

Built side-by-side with "the big boys" (251E, C12, and U47), the Alchemy Series is the next generation of affordable microphones from TELEFUNKEN Elekroakustik. This series directly replaces (and outperforms!) the older and discontinued RFT line. The biggest changes are subtle, but they really add up when talking about overall performance and reliability. Throw in the fact these mics are now shipping with a flight case (previously an add on), and you have a truly exceptional package.

While you can't see it (but you'll hear it!), one of the aspects we are most excited about is that the mics (capsules and electronics), as well as the power supply (internals), are all "stuffed" in-house, in Connecticut. This undoubltely adds a big level of quality control to the microphone set.

Want More Great Content?

Talk with a Specialist

Alchemy Microphone Series Comparison

Introducing the Alchemy Microphone Series, TELEFUNKEN Elektroakustik's next generation of large diaphragm tube condensers. These microphone models feature unique sonic profiles developed from the ground up at Telefunken's American facility with vintage circuitry, modern fidelity, and superior reliability in mind. In this video we will be comparing the distinct voices of the Alchemy Microphone Series; the "Copperhead" sound of the TF29 and TF39, the "German" voiced TF47, and the "Austrian" voiced TF51. Drum Overhead - 00:45 Electric Bass Amp - 01:34 Acoustic Guitar - 02:30 Electric Guitar Spacey Effects - 03:20 Electric Guitar Driven - 04:26 Piano - 05:03 Male Vocals - 05:55 Female Vocals - 06:52 Every source was recorded in mono with each microphone in cardioid configuration. All three microphones were recorded through our API 1608 console direct in to a Digidesign 192 at 24Bit/48K and captured via Pro Tools HD. NOTE: For the purposes of this comparison, only the TF39 Copperhead Deluxe was used to represent the "Copperhead" sound. The TF29 and TF39 in cardioid exhibit the exact same characteristics.

Manufacturer's Description from TELEFUNKEN

The TF47 is a new design based on the “German” sound, drawing inspiration from the historic U47 and M49. With a deep low end and a forward midrange, the TF47 is excellent for adding depth and presence to any source. These characteristics make it especially ideal for recording vocals, guitar amps, and drums.



Circuit Design

At the heart of the TF47 is an all-brass K47-style capsule, new old stock 5840W vacuum tube, and custom-made historically accurate BV8 transformer (as found in the U47). These components deliver a warm and punchy sound reminiscent of the U47 with a pleasant top end articulation that sits perfect in a mix.



Key Features

 ♦ Forward mid-range, reminiscent of the U47

 ♦ Smooth and detailed top end

 ♦ Full and round low end

 ♦ Hand assembled in the USA

 ♦ K47-style capsule and BV8 transformer, similar to the U47



Applications

 • R&B, rap or aggressive vocals, female soul vocals

 • Upright bass

 • Toms and kick out

 • Trombone

 • Cello

 • Percussion

Accessories

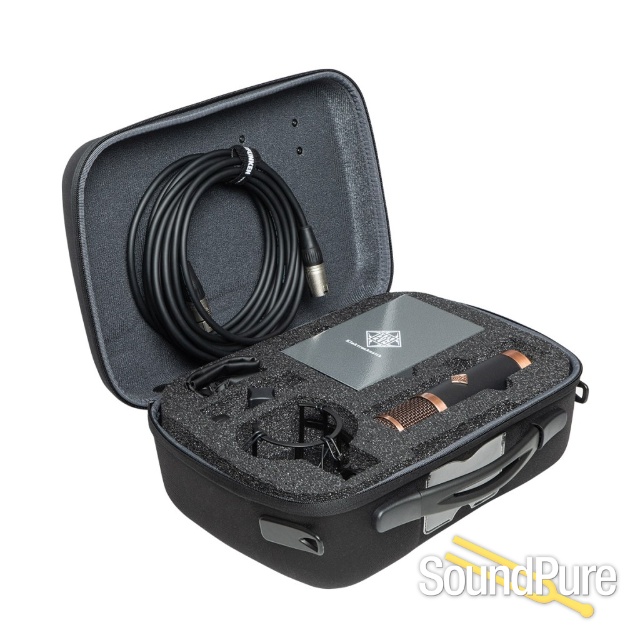

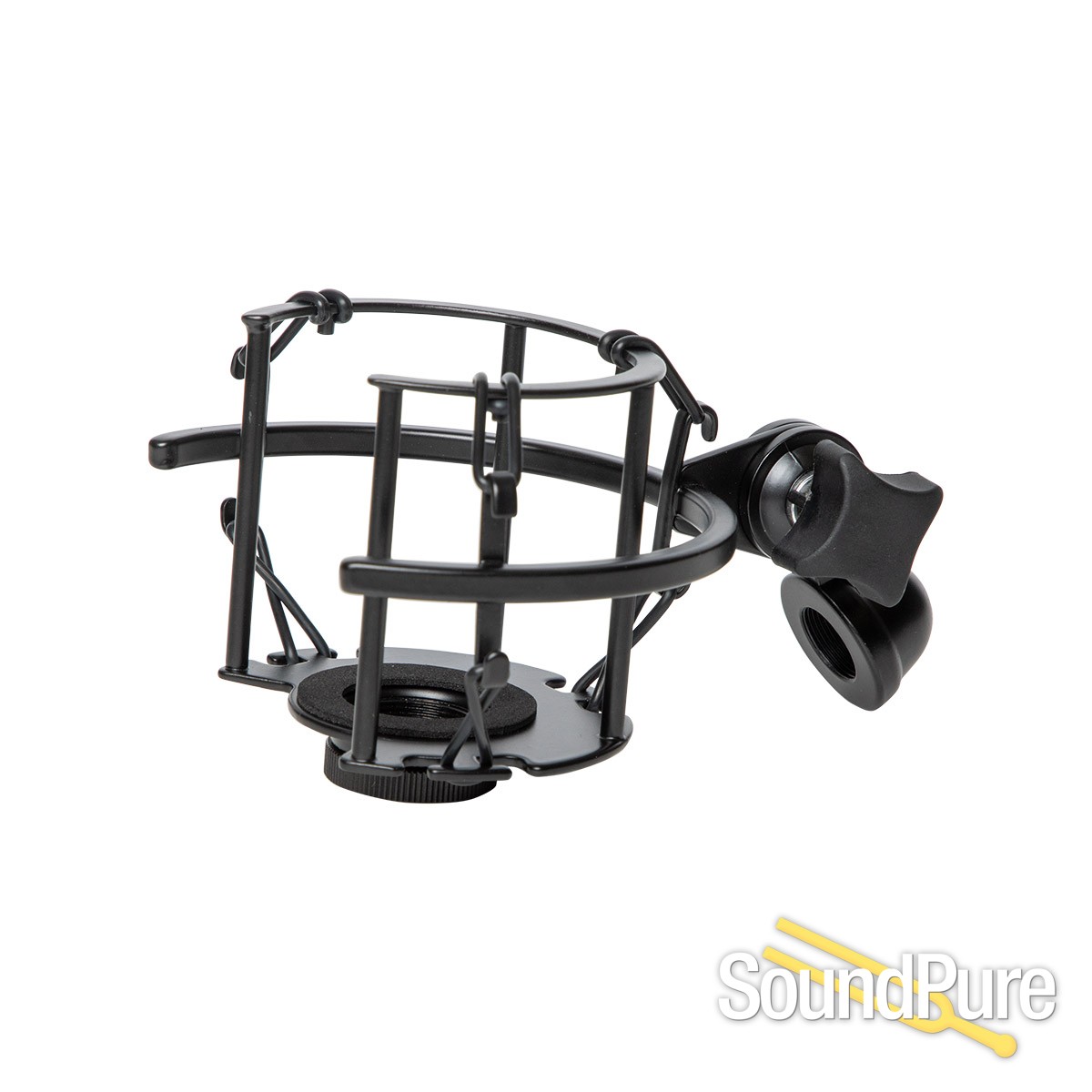

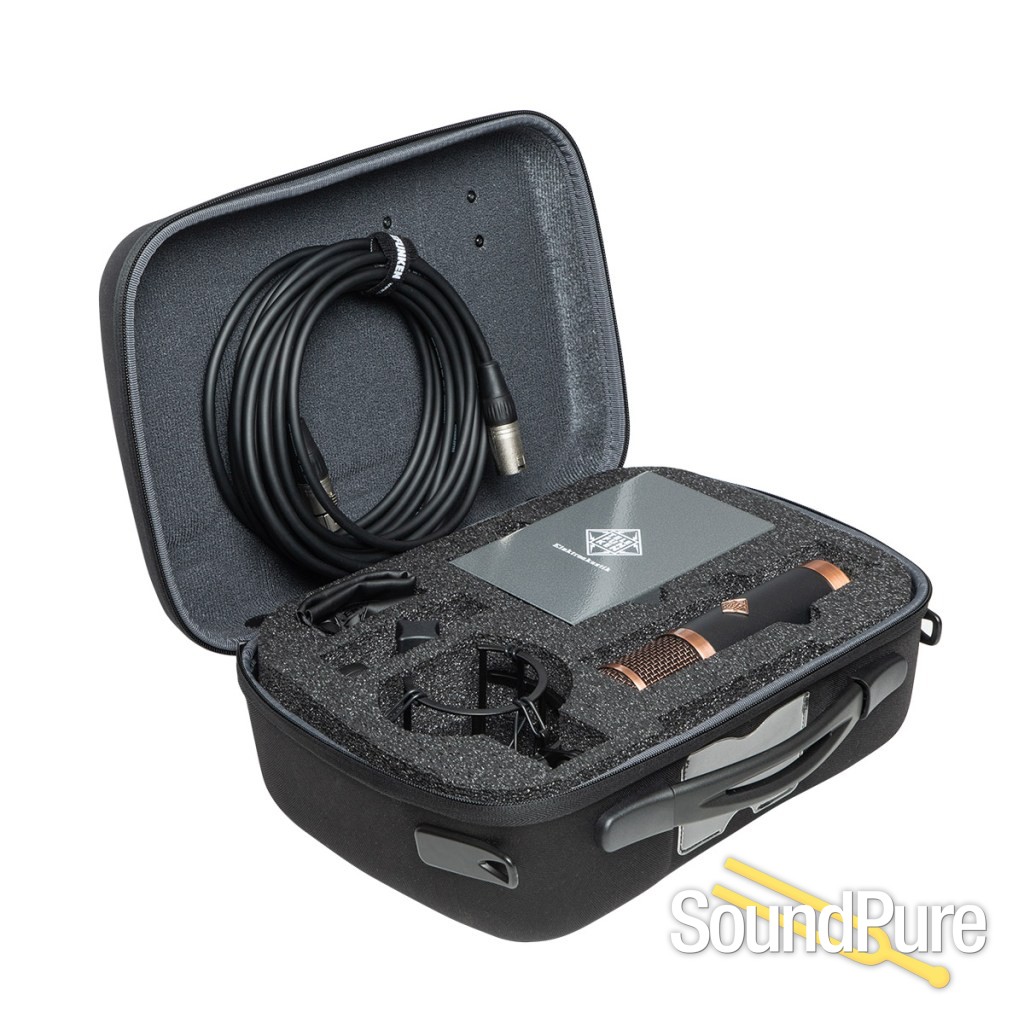

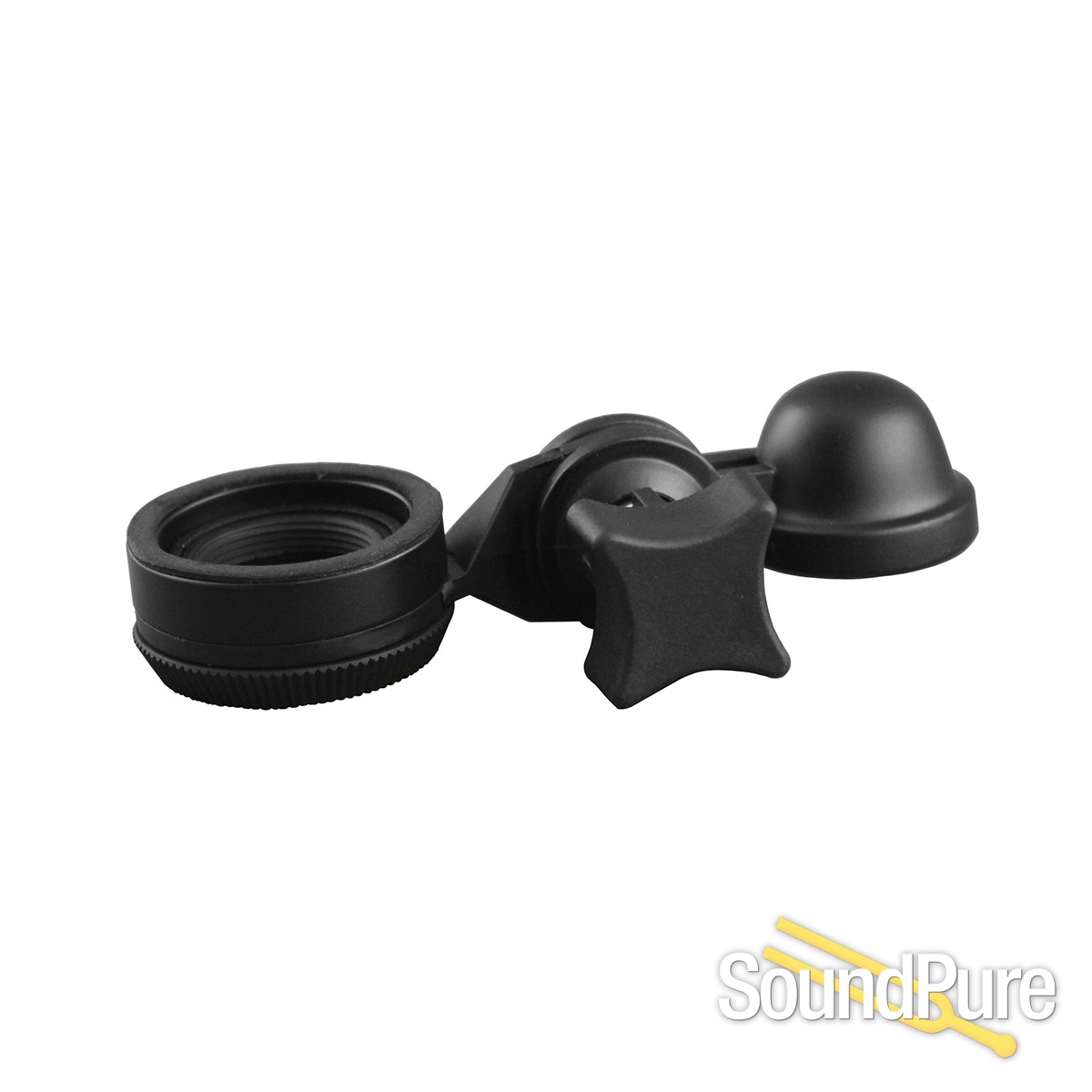

Every TF47 microphone system comes with a multi pattern M 903 Power Supply, M 803 Tube Microphone Cable, ZC03 Shell Case, M 703 Shock Mount, M 782 Stand Mount, and Microphone Sleeve.

TELEFUNKEN Elektroakustik

About Manufacturer

TELEFUNKEN Elektroakustik of South Windsor, CT has been following the tradition of excellence and innovation set forth by the original TELEFUNKEN GmbH of Germany that began over 100 years ago.

TELEFUNKEN Elektroakustik's origins began in 2000 when owner Toni Fishman acquired the rights to the name and diamond logo for use in North America. The company began with the reverse engineering of a single microphone part: the ELA M 251 polar pattern selector. Mr. Fishman purchased an original Telefunken ELA M 251 for use in his recording studio, but when he received it he discovered that the polar pattern switch was no longer functional. Realizing that this was a common issue with the original units, the idea to recreate it was born.

The switch was reverse engineered and brought into production for other 251 owners with the same issue. With one part down, the goals were set high to successfully reverse engineer the entire microphone exactly as it was originally manufactured. The next two years were spent developing each and every part of the microphone right down to every detail. Numerous original documents and drafts from TELEFUNKEN and AKG were acquired, and coupled with thorough reverse engineering the ELA M 251 was brought back to life with meticulous accuracy.

As TELEFUNKEN moves forward, one foot is rooted in the rich history of the brand, and the other in new microphone innovations. TELEFUNKEN has evolved exponentially from a single pattern switch to one of the industry leaders in top quality microphones.

Specifications

Type: Pressure Gradient Condenser

Capsule: TK47 Center Terminated Diaphragm

Tube Type: 5840W (New Old Stock)

Transformer: Custom Wound Telefunken BV8

Polar Pattern: Cardioid, Omnidirectional, Figure-8

Frequency Range: 20 Hz - 20 kHz

Sensitivity: 22 mV/Pa

THD @ 1 kHz at 1 Pa (Amplifier): < 0.3%

Output Impedance: < 300 Ω

Maximum SPL (for 1% THD): 125 dB

S/N Ratio: 84 dBA

Self Noise (Amplifier): 10 dBA

Dimensions: 200 mm L x 46 mm Dia

Weight: 710 g

Current Draw from Mains: 50 mA

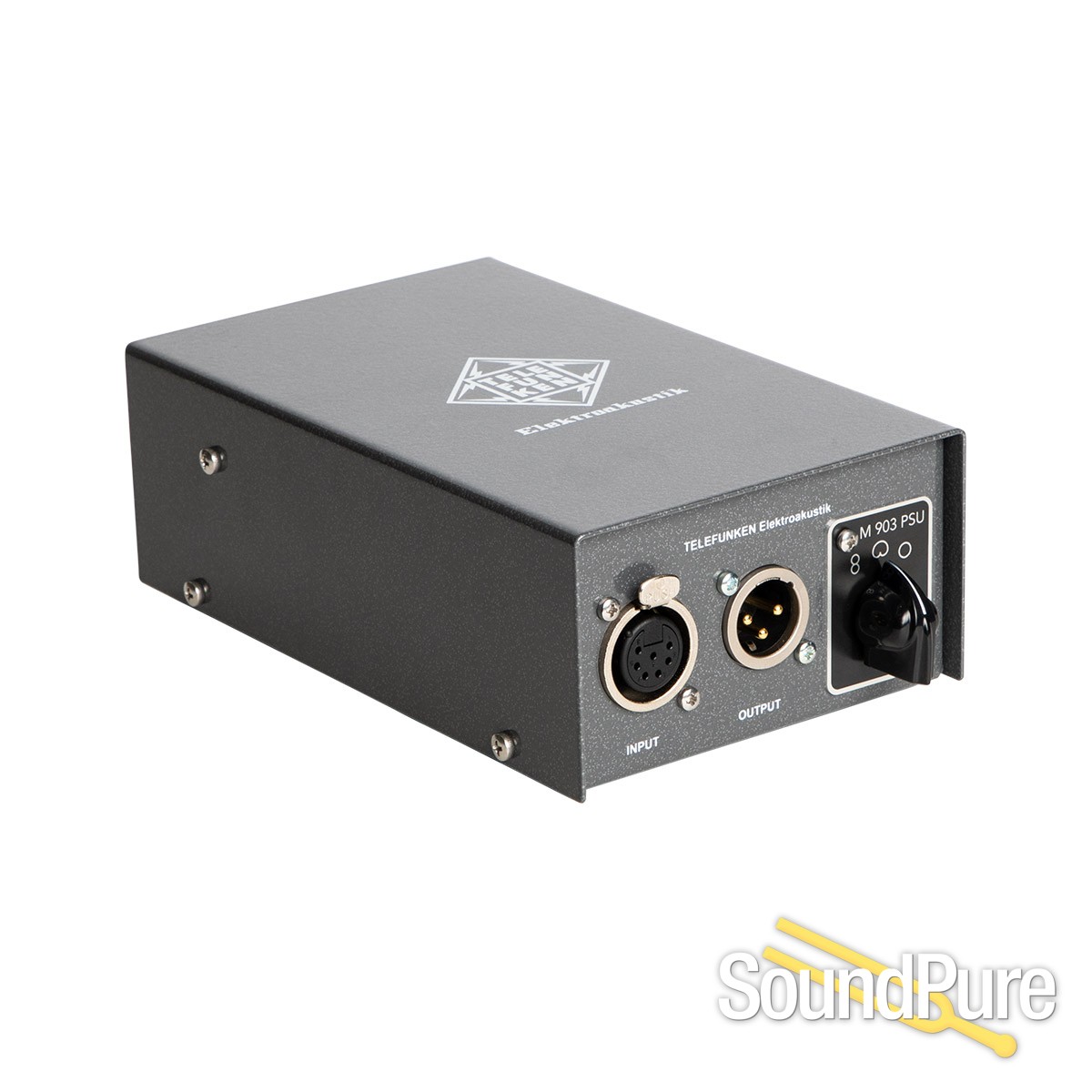

Power Supply: M 903 PSU - 7 Pin Female XLR Input, 3 Pin Male XLR Output, Polar Pattern Selector

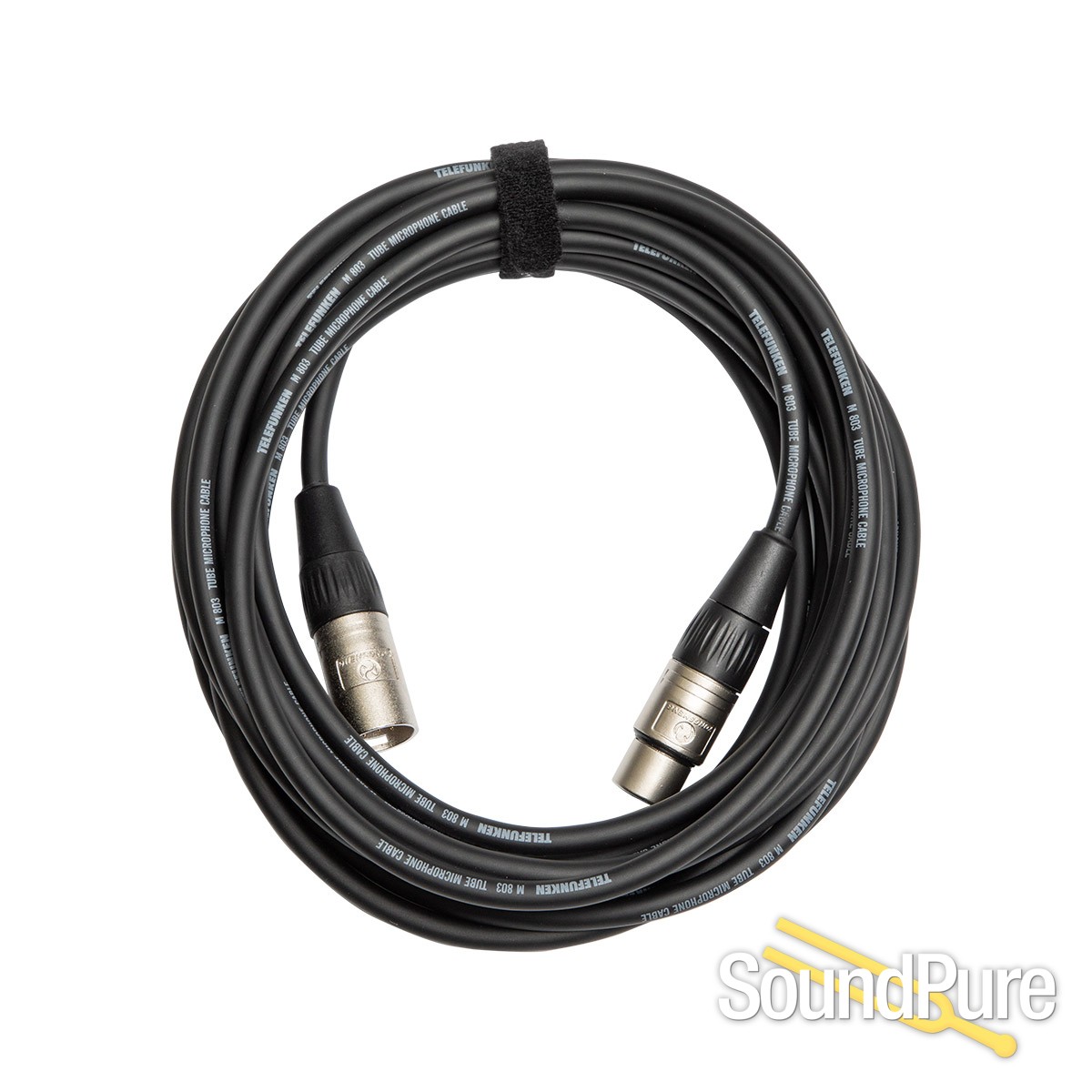

Cable: M 803 - 7 Meter Telefunken Tube Microphone Cable, 7 Pin Male & Female XLRs

Shockmount: M 703 Shock Mount, M 782 Stand Mount

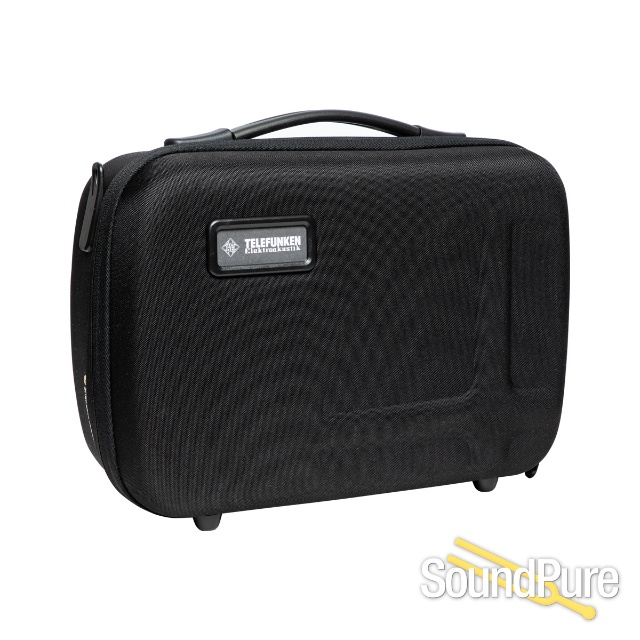

Flight Case: ZC03 Light Weight Carrying Case
