SPL Qure - Parametric 3-band EQ & Qure-Tube Sound  From SPL

The Qure is ideally suited for demanding tonal shaping of individual instruments, voices and complex musical signals.

SPL

Manufacturer's Description from SPL

All applications benefit from the unique tonal potential and the sophisticated filtering design that perfectly complements the fine details of the sound being processed.

The highly sophisticated circuitry of the Qure forms the basis for its outstanding tonal qualities: each filter is serially connected on separate boards with individual op-amps, resulting in excellent noise and distortion values, with a hard bypass available for each individual filter.



  • 2 x 3-band fully parametric EQ
  • Proportional Q operation
  • Variable HF and LF cut filters
  • Unique QURE control
  • Variable input gain (-12dB to +18dB)
  • Variable output gain (-7dB to +4dB)
  • Hard-Bypass for each filter band and both cut filters
  • Master relay hard-bypass for entire unit
  • Central Grounded Shield Layout
  • SPL's Super-Balancing Hybrids (CMRR > 80dB)
  • Tube warm up circuitry for prolonged tube-life
  • Toroidal transformer power supply
  • Option: Lundahl I/O transformers
  • Made in Germany

The Qure is a fully parametric equalizer, specially designed to meet the most demanding studio applications. It is a 3-band, two-channel system with input and output gain controls, high-cut and low-cut filters as well as the new Qure control for the enhancing presence and room imaging of vocals, instruments and complex stereo material.

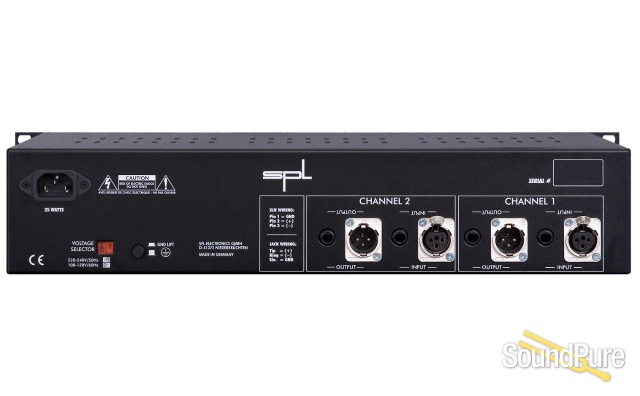

Both balanced XLR and balanced stereo jacks are provided for signal connections to and from the Qure.
The proportional-Q principle provides precise control over a frequency range, from 15Hz to 21kHz, while the low noise level of -99dB (A-weighted), and the enormous dynamic range of 113dB make the Qure ideally suited for mastering and cutting. By employing circuitry designed around the principles of perceived sound, rather than simply designing by numbers, the Qure overcomes the limitations of conventional parametric equalisers.



The Qure control

The Qure circuitry is a new SPL development which gives the name for the unit and also represents a new technology, which uses coils to influence the presence and the spatial imaging. At the same time it is ideally suited to "cure" recordings from digital harshness.
The signal runs through a tube circuitry featuring an 12AX7-LPS double triode tube in a mixed current/voltage coupling mode. This stage is extremely clip-resistant and produces a pleasant and musical sounding tube-THD spectrum. The Qure On switch puts a coil/condenser/resistor filter network (LCR) into the tube output stage. This network is integrated into the coupling path of the tube and reacts on the dynamic response of the input signal by influencing THD spectra and phase response. The Qure potentiometer changes the frequency response and produces a fresh and silky top-end and a mid-range free of sharpness and harshness. For example, vocals can be "placed" in the front of a mix without having to provide more "space", also background or layer sounds can gain improved spatial depth.



Proportional Q



Unlike most other equalisers which use constant-Q filters, the Qure adopts the proportional-Q principle to realise maximum musicality. Conventional constant-Q designs keep the amplitude constant, regardless of the adjusted bandwidth (Q). The disadvantage of this is, when it comes to sound creation, frequencies above and below the centre frequency are often boosted so intensely that they lose their musicality. With proportional-Q it is quite different; the amplitude of the processed frequency band is reduced as the bandwidth broadens. Adjusting the bandwidth back to a narrow bandwidth (high Q), will increase the amplitude of the centre frequency to its former level. Furthermore, with proportional-Q, there is no need to constantly readjust the boost/cut control when varying the bandwidth as is usually necessary with constant-Q equalisers. It is generally perceived that equalisers based upon constant-Q designs produce acoustically comparable results, and suffer from limitations in the areas of sound flexibility and musicality. Often there is only one truly usable position on the Q-control. The proportional-Q principle offers a wide range of possible potentiometer settings and makes it easier to identify the desired frequencies within the sound spectrum even subtle nuances become clearly audible. Equalising with proportional-Q is therefore more intuitive and subjectively musical than with constant-Q equalisers. The Qure forms its response curve around the centre frequency with a bell-like response, so that frequencies closer to the centre frequency are emphasised slightly more; frequencies further from the centre are less affected. The development of these filter curves was the result of extensive listening tests, and the result is an equaliser that combines technical excellence and precision with unsurpassed musicality.



The Frequency Bands



The Qure is configured as a two-channel, 3-band equaliser with a separate hard-bypass switch for each band. The filters are connected in series. The three filters bands cover a frequency range from 15Hz to 21kHz. In addition each channel is equipped with high- and low-cut filters. Tuning the equaliser is very intuitive because the frequency control law has been designed to match the characteristics of the human hearing system. The perfectly linear phase response of the Qure circuitry, combined with its wide bandwidth, contributes to the sonic excellence of this esoteric equaliser. The mid-band features the "non-reciprocal response’ of the Boost/Cut control which qualifies this band to operate as a notch filte, too. Cutting is allowed to -36dB at high Q (Q5) whereas the low and high band offer cutting of -15dB. The sonic advantage of the "non-reciprocal response’ design is the vast dynamic response making the filter sound very open and clear.



General Features



To allow easy recall of all control settings the Qure is equipped with stepped potentiometers throughout. The number of steps is optimised to the control function: 11 steps for bandwidth, 31 steps for frequency and boost/cut, and 41 steps for input gain, HF/LF Cut filters, and Qure control. Each band can individually be switched in and out of the signal path making comparison easy and avoiding the need to nullify the boost/cut control. Each filter is mounted on a separate printboard featuring a "central grounded shield layout’ (CGSL) for maximum rejection of interfering frequencies. Single op-amps are used throughout to minimize noise and THD. The tubes in use are the well-acclaimed Sovtek 12 AX 7. Furthermore selected custom made condensers are used to produce harmonical and pleasant sounding THD spectra. The frequency controls are also custom made featuring a control characteristic that is designed to realise a gentle frequency sweep with a musically optimised control range.

SPL

About Manufacturer

Sound Performance Labs! Full Range of Analog, Tube, and Digital rack gear with an innovative twist. With their most famous transient designer product, SPL has quickly become a household name in both the recording and live sound arenas.

Specifications

Input & Output

  • Instrumentation amplifier, electronically balanced (differential), transformerless
  • Nominal input level +6dB
  • Input impedance = 22 kOhms
  • Output impedance < 600 Ohms
  • Max. input level +14dBu
  • Max. output level +20dBu
  • Minimum load ohms: 600 Ohms
  • Relay Hard Bypass
  • Power Fail Safety



Measurements

  • Frequency response: 10Hz 100kHz (100kHz = -3dB)
  • EQ frequency range: 15Hz 21kHz
  • CCMR: > -80 dB @ 1 kHz
  • THD & N: 0.01855% @ 1kHz
  • S/N CCIR 468-3: -85dBu
  • S/N A-weighted: -99dBu



Power Supply

  • Toroidal transformer 35 VA
  • Ground-Lift switch
  • Fuse (primary) 500mA (230V/50Hz), 1000mA (115V/60Hz)
  • Voltage selector 115V/230V



Dimensions

  • Housing Standard EIA 19"/2U
  • 482 x 88 x 237mm (WxHxD)
  • 19" x 3.5" x 9.33" (WxHxD)
  • Weight 4.9 kg, 10.8lbs



0dBu = 0.775 V. Subject to change without notice.
