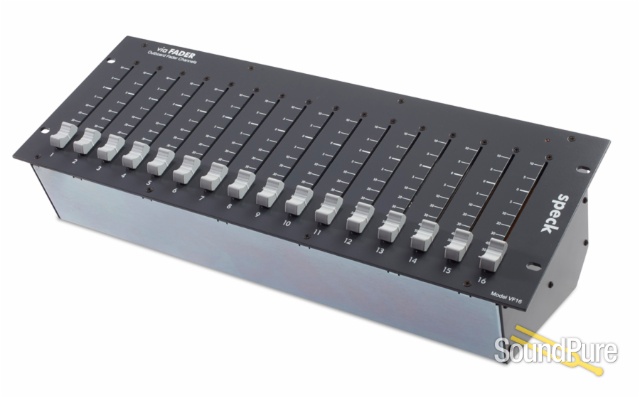

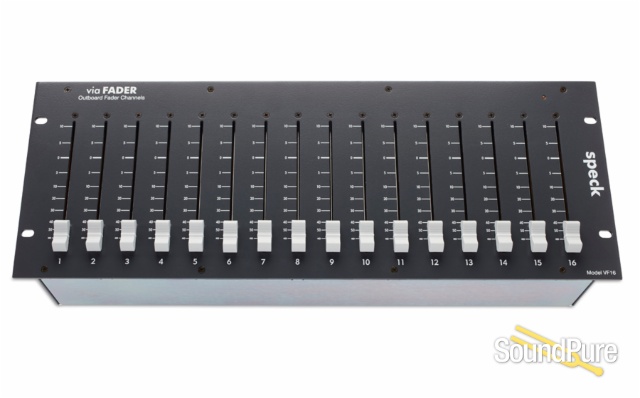

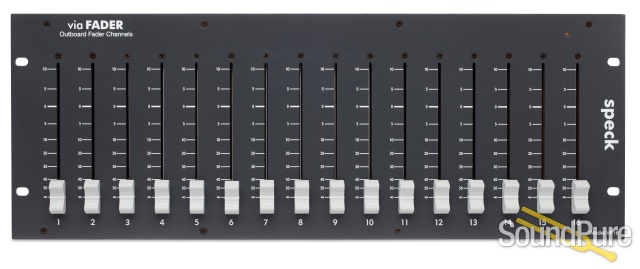

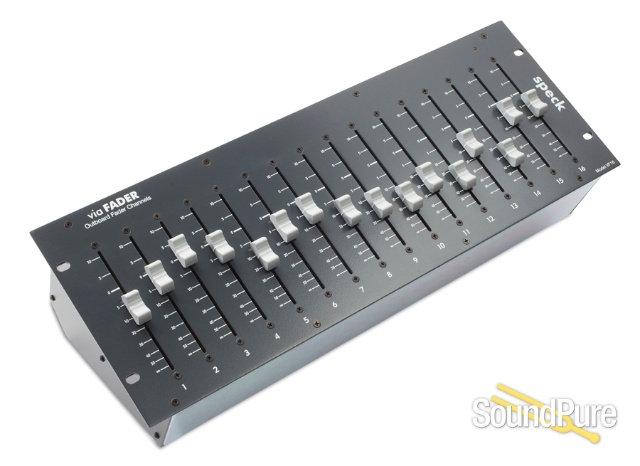

Speck Electronics via Fader 16  From Speck

Outboard Fader System designed to connect your 500-Series Units and audio gear.

Speck Electronics

$1,740.00

Retail:  $1,790.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $39/mo.

Manufacturer's Description from Speck

When you need Faders but don't really need a console.

The via Fader is a brand new way to connect your 500 series racks and audio gear. This product is more than just 10 or 16 slide faders. Each fader channel has the necessary input and output electronics to allow the via Fader to interface to any balanced, unbalanced, transformer, or transformer-less line level signal. But most importantly... no additional mixer or audio interface is required.

With its clean, uncluttered layout, the via Fader can be placed in a convenient desktop location or installed in your 19" rack. This gives you more choices when it comes to the studio layout.



Not exclusively for 500 rack systems, the via Fader can be used for external DAW summing or as a line mixer for synths and samplers. In many cases, the via Fader can eliminate the need for a mixing console in your studio. The four via Fader models give you lots of possibilities.



Features

 ♦ Sixteen - 100mm Fader channels.

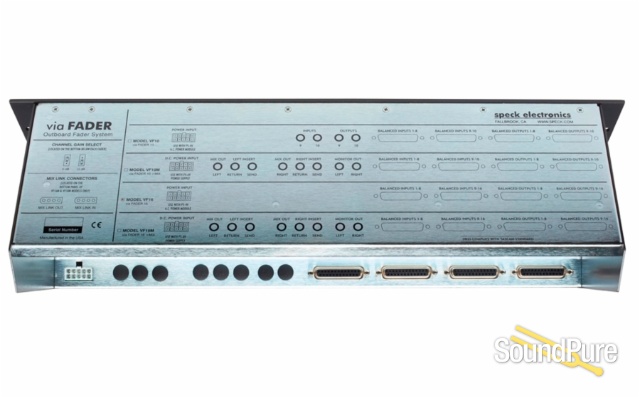

 ♦ All fader channels have active-balanced inputs and outputs on DB25 style connectors.

 ♦ 100% analog signal path.

 ♦ Ultra-low distortion transparent signal path with +28dBu maximum input and output.

 ♦ 10dB gain boost select available for each fader channel.

 ♦ Two mounting choices: Place on your desktop or install in a standard 19" rack.

 ♦ 120V or 230V external power supply included.



The Designer

The via Fader is the work of Vince Poulos, the designer and owner of Speck Electronics.

Speck Electronics has been producing quality professional audio products for over 45 years. Founded in 1973, Speck Electronics has consistently provided innovations in audio products for all segments of professional recording and touring.

Other products include the X.Sum line mixer, EQF 810 equalizer, and MicPre 5.0 preamp.

Speck Electronics

About Manufacturer

Speck Electronics has been producing quality audio mixers, equalizers, and preamps for all segments of professional audio recording and touring for over 25 years. Our products include the Xtramix compact audio mixer, the Model ASC equalizer, and MicPre 5.0 microphone preamp. Our future goals are to expand our product line with analog hardware complementary with the current line of DAW's and Desktop Recording.

Specifications

Frequency Response (10 dB gain)

3Hz-54kHz (+0/-.5dB)

THD+n (Gain 10, Output +24dBu)

.0024%

Noise (22Hz-22kHz)

-102dBu (Residual output noise)

-87dBu (16 channels routed, faders off)

Maximum Input Level

+28dBu

Maximum Output Level

+28dBu

Input Impedance

30K Ohms (Balanced)

15K Ohms (Unbalanced)

Output Impedance

60 Ohms

Dimensions (Mixer)

WxHxD=19" x 7" x 6"

(483mm x 178mm x 152mm)

Dimensions (Power Supply)

WxHxD=4.6" x 2.75" x 7.3"

(117mm x 70mm x 185mm)

Shipping Weight (Mixer & PS)

15 Lbs (6.8kg)
