From Schoeps Microphones

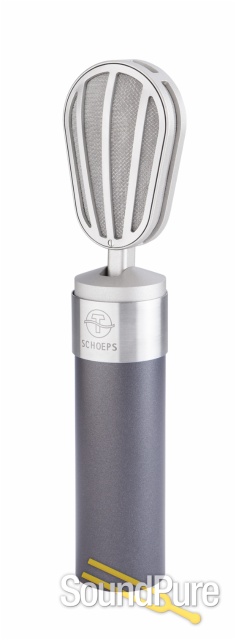

The V4 U is a studio vocal microphone that unites the outstanding technical characteristics typical of Schoeps with a timeless, classic design. The “look” of the V4 U is based on the Schoeps CM 51/3 microphone from 1951. But the V4 U is a thoroughly modern studio microphone. Its capsule, circuitry and mechanical construction are the result of extensive new development. It produces a warm, clear sonic character with smoothly rolled-off diffuse-field response. The V4’s newly designed electronics offer a very high maximum sound pressure level and excellent electromagnetic compatibility.

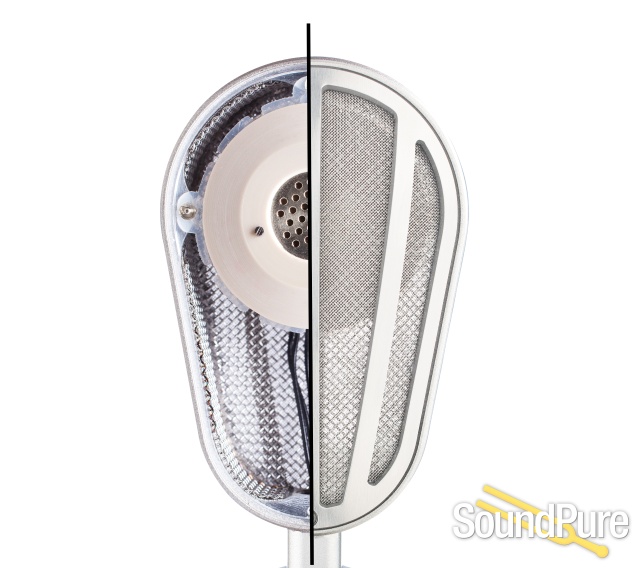

A unique 33 mm beveled collar around the diaphragm causes its directivity to increase steadily and smoothly at high frequencies, as in a large-diaphragm microphone. Meanwhile, the superior acoustic qualities of a small-diaphragm capsule are maintained. The capsule is elastically suspended internally to reduce handling noise and other solid-borne sound. The head can be angled +/- 20°.
Available in either BLUE or GRAY finish.
Features
| V4 U | |
|---|---|
| Directional pattern | Cardioid |
| Frequency range | 50 Hz - 22 kHz |
| Sensitivity | 16 mV/Pa |
| Equivalent noise level (A-weighted) | 15 dB-A |
| Equivalent noise level (CCIR) | 25 dB |
| Signal-to-noise ratio (A-weighted) | 79 dB-A |
| Maximum sound pressure level at 0.5% THD | 144 dB-SPL |
| Maximum output voltage | 4.8 V |
| Low-cut frequency | 40 Hz |
| Powering voltage | 48 V |
| Current consumption | 3.3 mA |
| Length | 194 mm |
| Weight | 302 g |
| Diameter (cylinder) | 34 mm |
| Width of the capsule head | 45 mm |
| Head swivel degree span | +/- 20 ° |
