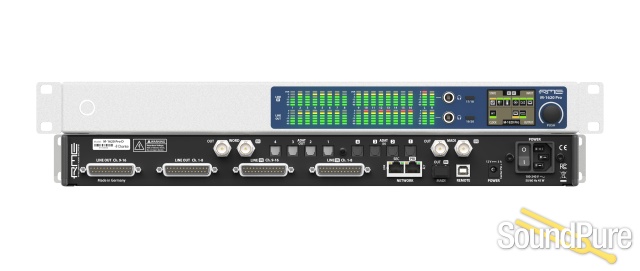

RME M-1620 Pro Dante 16x20 AD/DA Converter  From RME

16-Channel A/D, 20-Channel D/A converter with ADAT, Dante, MADI and Phones out

RME

$3,399.00

No Sales Tax in OH!
No Sales Tax in 45 States. Learn More.

Retail:  $3,699.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax collected in OH.

Close
Sales Tax
Sales tax is only collected in the following states: CA, FL, NC, SC, TN and VA. If your state is not listed, sales tax will not be collected on your order.
Ships Quick!
Usually ships 24 - 48 hours after order processed.
Payments as low as $77/mo.

Manufacturer's Description from RME

The RME M-1620 Pro D converts 16 analog line-level signals (per channel switchable up to +24 dBu) to and from MADI, ADAT and Dante network technology. This innovative unit is designed with a newly developed front panel that combines LED level meters with a display and includes two separate headphone outputs for monitoring - all within a single-height 19-inch rack device. Cutting-edge converters and flexible internal routing place it at the forefront of any audio network..

Simplicity at first glance - Flexibility and reliability beyond

RME prioritizes reliability by equipping the M-1620 Pro with built-in redundancy. This includes dual network and dual MADI connections, along with a monitored DC input in addition to the internal AC power supply. A unique system clearly signals when an issue arises, ensuring seamless operation. With full stand-alone capability, users can adjust device settings directly on the unit for quick modifications or to recall entire user-defined presets.

Responding to frequent requests, the M-1620 Pro D integrates 64 channel Dante connectivity, providing direct links to other audio devices via standard ethernet switches. If redundancy is not required, the device can act as a switch itself and allow daisy-chains of several Dante devices. Users can record and playback up to 64 channels of any of the M-1620’s analog and digital I/O on their computer using Audinate’s Dante Virtual Soundcard™ (license not included).

Add Analog and DANTE I/O to any existing MADI devices

The M-1620 Pro allows manual configuration of the converter’s aliasing filters for optimal impulse and frequency response. Jitter on digital input signals is effectively reduced with SteadyClock FS. Separate Word Clock BNC and coaxial MADI connectors, with optional optical MADI via an SFP module, allow the device to be easily integrated into existing infrastructure.

Plug & play - rapid user interaction

Control all device states directly from the front panel for convenient, direct access to all features. RME network audio devices can be reached over network (including wirelessly over Wi-Fi) and USB for convenient remote access, allowing the rapid creation of gain groups, phantom power switching and clock configuration. In addition, a JSON based API and even SysEx MIDI commands can be used to integrate each model virtually anywhere. The integrated routing matrix allows single channel routing across all analog and digital I/O. As such, problem-solving of signals, clocking, connectivity or other issues is both simple and straight-forward!

RME

About Manufacturer

RME is a young German team of developers with a robust vision of creating innovative, user friendly, and high-quality digital audio solutions for less money. Founded in 1996, RME quickly earned their stripes as a premiere industry provider, expanding rapidly into mainstream international markets. Each developer on the RME team is either a musician or sound engineer - besides being a specialist in hardware and software development. Additionally, to give their designs a persistent competitive edge in today's market, RME developers regularly network with other industry specialists to exchange knowledge and information - truly designing a line of products with superior quality, and affordable, mass-market appeal. RME has had a consistent string of successful product releases, earning awards and accolades from the press and the public alike. The enthusiastic response and worldwide support the RME product line has generated ranks them one of the top audio device companies in the industry.

Specifications

Line In 1-16:

  • Resolution: 24 bit
  • Input level switchable per channel +24 dBu, +19 dBu, +13 dBu @ 0 dBFS
  • Inputs AC coupled, fully symmetrical signal path (servo-balanced)
  • Input Impedance 9.5 kΩ
  • Signal to Noise ratio (SNR) @ +24 dBu, 44.1 kHz: 117.0 dB RMS unweighted, 120.7 dBA
  • Signal to Noise ratio (SNR) @ +19 dBu: 116.3 dB RMS unweighted, 119.9 dBA
  • Signal to Noise ratio (SNR) @ +13 dBu: 114.7 dB RMS unweighted, 118.3 dBA
  • Frequency response @ 44.1 kHz, -0.1 dB: 5 Hz – 20.5 kHz
  • THD @ -1 dBFS: < -111 dB, < 0.00029%
  • THD+N @ -1 dBFS: < -108 dB, < 0.00039 %
  • Channel separation: > 110 dB



Line Out 1-16:

  • Resolution: 24 bit
  • Output level switchable per channel +24 dBu, +19 dBu, +13 dBu @ 0 dBFS
  • Outputs DC coupled, fully symmetrical signal path ("truly balanced")
  • Output impedance: 200 Ohm balanced, 100 Ohm unbalanced
  • Signal to Noise Ratio (SNR) @ 13 dBu: 119.2 dB RMS unweighted
  • Signal to Noise Ratio (SNR) @ 19 dBu: 119.7 dB RMS unweighted
  • Signal to Noise Ratio (SNR) @ 24 dBu: 119.9 dB RMS unweighted
  • Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.3 kHz (Sharp Filter, default)
  • Frequency response @ 96 kHz, -0.1 dB: 0 Hz – 30 kHz (Slow Filter, default)
  • Frequency response @ 96 kHz, -0.1 dB: 0 Hz – 44.1 kHz (Sharp Filter)
  • Frequency response @ 192 kHz, -0.1 dB: 0 Hz – 60.5 kHz (Slow Filter, default)
  • Frequency response @ 192 kHz, -0.1 dB: 0 Hz – 85 kHz (Sharp Filter)
  • THD @ 19 dBu: < -120 dB, < 0.0001 %
  • THD+N @ 19 dBu: < -113 dB, < 0.0002 %
  • Channel separation: > 110 dB

Phones 1/2, 3/4:

  • Resolution: 24 Bit
  • Output: 6.3 mm TRS stereo (unbalanced) or mono (balanced) jack
  • Maximum output level +4 dBu / +19 dBu (+10 dBu / +25 dBu in balanced mode)
  • Output level switchable separately for each TRS connector
  • Signal to Noise Ratio (SNR) @ 19 dBu: > 109 dB RMS unweighted, > 111 dB(A)
  • Frequency response @ 44.1 kHz, -0.1 dB: 0 Hz – 20.0 kHz (Sharp Filter, default)
  • Frequency response @ 96 kHz, -0.1 dB: 0 Hz – 20.0 kHz (Slow Filter, default)
  • Frequency response @ 96 kHz, -0.1 dB: 0 Hz – 44.3 kHz (Sharp Filter)
  • Frequency response @ 192 kHz, -0.1 dB: 0 Hz – 43 kHz (Slow Filter, default)
  • Frequency response @ 192 kHz, -0.1 dB: 0 Hz – 85 kHz (Sharp Filter)
  • THD+N @ 4 dBu, 32 Ohms load: < -100 dB, < 0.001 %
  • THD+N @ 19 dBu, 100 Ohms load: < -100 dB, < 0.001 %
