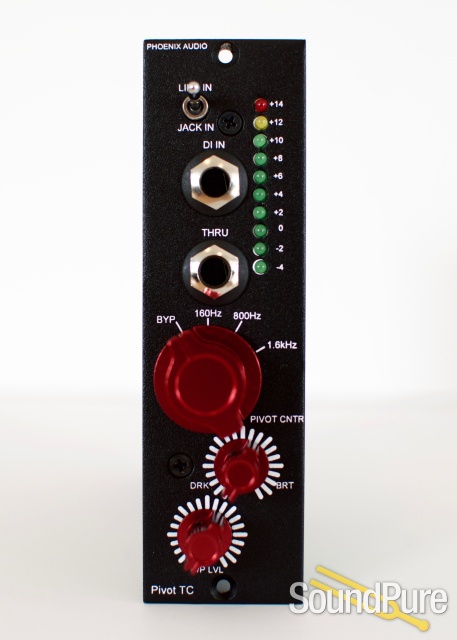

Phoenix Pivot Tone Channel/500 500-Series EQ  From Phoenix

An impressive DI paired with a simple but powerful EQ that's useful with the DI or with line-level signals!

Phoenix Audio

$649.00

"Experience the Difference"

Try Before You Buy

Close
Try Before You Buy
Call us now to set up a free trial in your home or studio: 888-528-9703. Our specialists will help you select the best fit for your needs and hook up your free trial for the ultimate peace of mind. Experience the Sound Pure difference!
View all eligible products »

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax Outside North Carolina

Ships Quick!
Usually ships 24 - 48 hours after order processed.
Payments as low as $57/mo.

Want a lower price?
Get Discount

Check your email inbox now!

Close

Our best price is too low to print,
but we'll email it to you immediately!

learn more »

How to get a lower price, instantly!

Why do we do this?

Some manufacturers have a "minimum advertised price", which restricts how low of a price we can display. By requesting an e-mail quote from us, you give us the ability to offer you a lower price than anywhere else on the web. A quote on the product will be sent instantly to the e-mail address you enter, and you can add the product to your cart at the lower price displayed in the e-mail.

Manufacturer's Description from Phoenix

Features



  •  Class A Discrete input line buffer amp
  •  Class A Discrete 10meg ohm DI input
  •  Class A Discrete output amp
  •  Phoenix custom output transformer
  •  Unique 3 position pivot point sloping EQ
  •  Controllable LF, MF & HF pivot positions
  •  Dark & bright tone control



The Pivot Tone Channel 500 (formely known as the Tilt Tone channel) is a 500 series channel strip featuring a balanced line level signal processor incorporating our class A discrete buffer amp from our world renowned Nicerizer summing mixer, a DI with our 10meg ohm inputs found in our Nice DI and a 'see-saw' EQ circuit.

Pivot TC/500 uses a powerful tone control pivot position EQ , a unique 3 position 'see-saw' EQ with 3 carefully selected pivot positions to cover low frequencies at 160hz, mid frequencies at 800hz and high frequencies at 1.6khz. A dark/bright shaping control, allows you to 'see-saw' the EQ to darken your mix (add LF) or brighten the mix (add HF).

There is a also a 10 position LED metering that accurately represents the output level.

The unit can also be used in bypass mode, the ouput control can be driven bringing in the Class A discrete output circuitry and output transformer to add analogue colour and saturation to any source, and a pair of units would be excellent on a mix bus or mastering.

Phoenix Audio

About Manufacturer

Phoenix Audio was founded in 1996 by Shaun Leveque to provide a British service for owners of pre-1980 Neve recording consoles. Their technicians, metal-workers, and design engineers are original ex-Neve workers, so they have the inside scoop, and they operate from a fully-equipped, modern, independent workshop. They design and build products, wired in-house by professional wiremen and engineers with many years experience that take great pride in the quality of their craftsmanship. Phoenix Audio products are unique and original and carefully designed to combine the advantages of years of audio experience with current manufacturing technology and components. Sound Pure has been very impressed by all of the new products and technologies they continue to release.

Specifications

  • Class A Stereo DI Output specs.
  • Frequency Response: 20Hz to 20Khz +/- 0.5dB
  • Maximum Output: +26dBu @ 1Khz
  • Noise: 90dB @ 22Hz to 22KHz
  • Class A, discrete, truly balanced transformerless input stage.
  • The Class A DI has a very high input impedance (10Mohm), without the use of FET's. This means that the guitar pickups are not loaded as with a lower impedance input, and so allows every transient to be reproduced, making even a cheap guitar sound exceptional.
  • Inputs: 1/4" jack (TS) input & through input on the front panel
  • Transformer isolated balanced output (XLR) on the rear panel
  • Tilt EQ with 3 fixed Tilt positions : 160hz, 800hz & 1.6khz
  • Dark/bright tone control
  • 10 position LED output metering.
  • Output level control.
