Motu Monitor 8  From MOTU

Monitor mixer with 6 headphone amps, 16 line ouputs and 8 line inputs as well as 16 channels of ADAT optical inputs.

MOTU

$995.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Ships Quick!
Usually ships 3 - 5 business days after order processed.
Payments as low as $22/mo.

Manufacturer's Description from MOTU

Monitor 8 is a 24 x 16 x 8 monitor mixer, 6-channel headphone amplifier and USB/AVB audio interface with console-style 48-channel mixing and DSP effects. Monitor 8 can mix 24 inputs, multi-channel computer audio, and dozens of AVB audio network channels to eight stereo monitor groups (A thru F, Main and Aux).

Create multiple mixes from a variety of inputs, including 8 channels of high-quality balanced (TRS) analog, 16 channels (2 banks) of ADAT optical, 32 channels of audio streamed from other devices on a connected AVB audio network (if present), and host software audio channels coming from the computer over USB or AVB Ethernet.

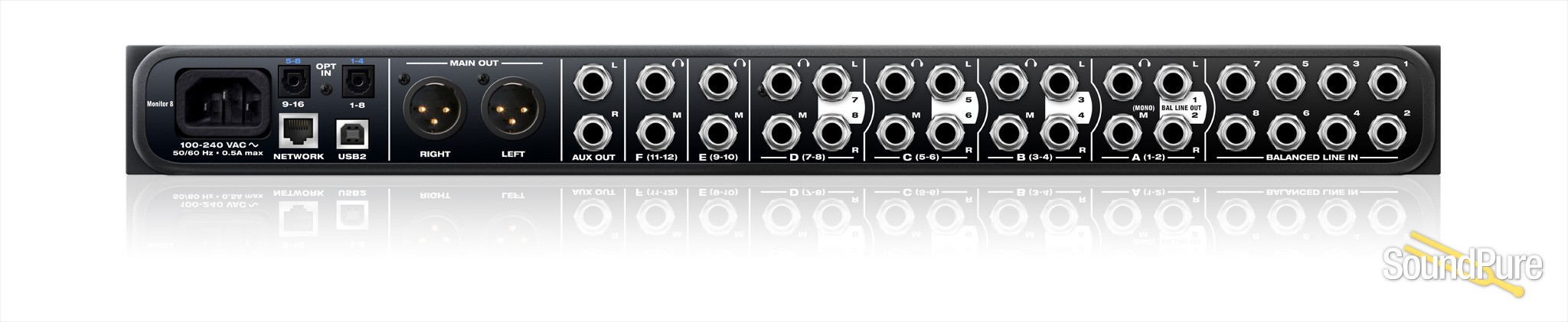

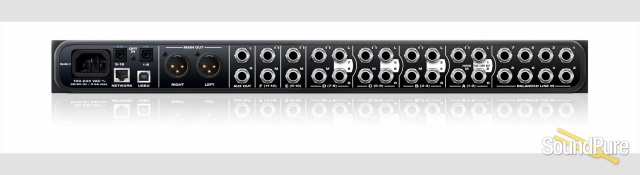

With XLR Main Outs and balanced quarter-inch Aux Outs, feed your main mix and monitor mix to studio monitors or PA speakers. Create six additional, independent monitor mixes, each with multiple mirrored outputs that include two sets of 1/4-inch headphone outs (front and rear panel), a summed 1/4-inch mono output, and, for groups A-D, balanced stereo quarter-inch outs. This flexible output design lets you send each monitor mix to multiple destinations simultaneously, such as two pairs of headphones, a wireless in-ear monitoring system, and a stage wedge. Monitor 8 delivers exceptional audio quality based on the same industry-recognized analog design as MOTU's groundbreaking 1248, 8M and 16A audio interfaces.

The Monitor 8 operates without a computer as a stand-alone mixer and headphone amp, but it can also function as a universally compatible AVB or USB 2.0 audio interface that is USB 3.0 and iOS compatible.

Powerful DSP delivers large console style mixing with 48 channels, 12 stereo busses, and 32-bit floating point effects processing, including modeled analog EQ, vintage compression and classic reverb. For stand-alone mixing, control Monitor 8 over Wi-Fi from web app software running in your favorite web browser on your iPad™, iPhone™, tablet, smart phone, and laptop — or several devices simultaneously for multi-user control of the Monitor 8's multiple mix busses.

Use the industry-standard, high-performance AVB Ethernet network port to expand your system with additional MOTU interfaces for more I/O, or integrate the Monitor 8 into a state-of-the-art AVB audio network system.

From studio to stage, the Monitor 8 delivers superb sound quality, state-of-the-art operation, and reliable performance.



  • Three products in one — 24 x 16 x 8 monitor mixer, 6-channel headphone amp and USB/AVB audio interface.
  • Superb audio quality — Employs the same award-winning analog design as MOTU's groundbreaking 1248, 8M and 16A audio interfaces.
  • 24 inputs and 8 stereo bus outputs — Mix 24 physical inputs, multi-channel computer audio, and 32 AVB audio network channels to eight stereo bus outputs (Main, Aux, and monitor groups A thru F). Inputs include 8 channels of balanced (TRS) analog and 16 channels (2 banks) of ADAT optical.
  • Six monitor groups with flexible outputs — Each group provides multiple mirrored outputs, including 2x 1/4-inch phones (front and rear panel), summed 1/4-inch mono out for stage monitors, and, for groups A-D, balanced stereo 1/4-inch outs.
  • Universal connectivity — Connects to a computer with standard AVB Ethernet or audio class compliant high-speed USB 2.0 (compatible with USB 3.0 and iOS). Discovery app and web app software works alongside any host audio software.
  • On-board 32-bit floating point DSP with large console style mixing and effects — Flexible 48-input digital mixer with 12 stereo busses and DSP effects, including reverb with sends, plus modeled analog EQ and compression, gate, and reverb.
  • System expansion — Add a 2nd MOTU AVB interface (1248, 8M, 16A, 24Ai or 24Ao) with a simple Cat-5e ethernet cable. Connect up to five MOTU interfaces using a MOTU AVB Switch (sold separately).
  • AVB audio networking — Build a network with multiple interfaces and computers using standard AVB switches and network cabling, with ultra-low network latency, even over long cable runs (100 meters point to point). Stream hundreds of audio channels among devices and computers on the network.
  • Flexible matrix routing and splitting — Send any input to any output, or multiple outputs. Includes routing to and from the computer, plus any devices on the AVB network.
  • Web app control — Control on-board DSP, mixing, device settings, and network audio routing from web app software running in your favorite browser on a laptop, tablet or smart phone connected by wire or Wi-Fi to your local area network.
  • Stand-alone mixing with wireless control — Connect an Apple Airport™ or other Wi-Fi router directly to the Monitor 8 with a standard Ethernet cable and control the Monitor 8's powerful mixing and DSP effects from your smart phone or tablet, without a computer. Great for live show monitor mixing.
