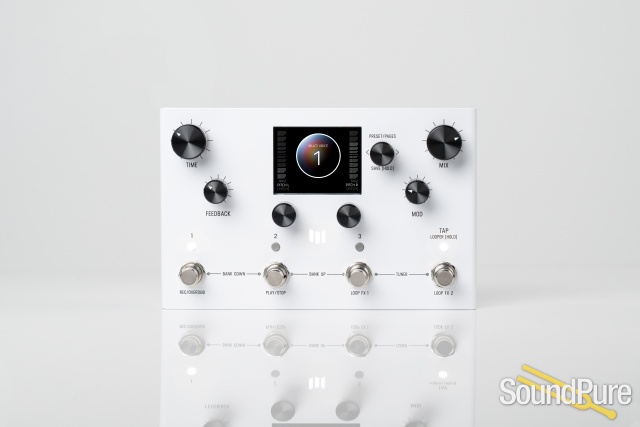

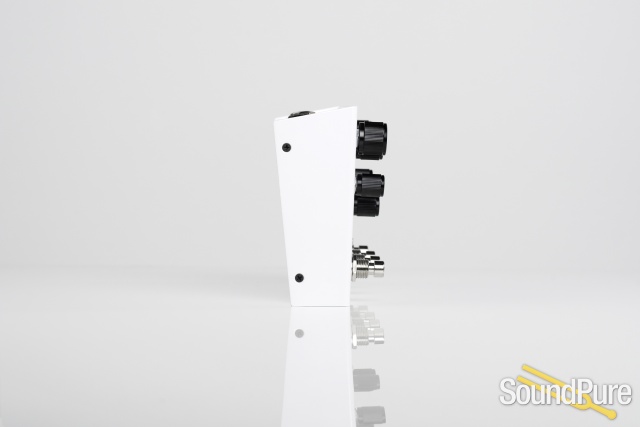

Meris Effects LVX Modular Delay System  From Meris

Meris Audio's Revolutionary New Modular Delay System!



"Experience the Difference"

Sound Pure's 3-Year Warranty

Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $52/mo.

Manufacturer's Description from Meris

LVX was our goal and dream from the start.  It took over 2 years in the making.  This has been our greatest feat and we’re finally here.

LVX is a Modular Delay System which breaks the paradigm of pre-set delay types in favor of freedom and flexibility. A completely new UI and user experience has been designed from the ground up to make LVX immediately intuitive to navigate. The architecture of LVX allows ultimate creative freedom to design a custom delay. The pedal features discrete processing elements and control signal modifiers that can be connected as desired for nearly infinite flexibility in crafting custom sounds.

Modular Delay System architecture

2540mS of Highly Configurable Dual Delay

Advanced ARM Processor

Configurable Delay Structures, Types, and Processing Elements for the ultimate customization in delay processing

Intuitive Color Screen based User Interface

Always Available True Stereo 60 Second Looper

99 Preset Locations in 33 Banks

Favorite Preset Bank for instant access to your 3 favorite presets

Instant Access Tuner with configurable Reference and Output mode

Deep Modifier Section lets you Route Control Signals to Processing Parameters

True Stereo Processing Elements (Poly Pitch Shifter operates in mono)

All New Processing Elements including Preamps, Granulize, Cassette, Poly Pitch, and more

Includes Processing Elements from the Meris family: Polymoon, Hedra, Enzo, and Ottobit Jr.

Selectable Note Divisions for each side of the stereo Dual Delay

Digitally controlled Analog mix bus

Stereo input and output with separate jacks for each

Switchable input/output headroom level for Instrument or Synthesizer / Line levels

MIDI In and Out over standard MIDI Din Jacks

Assignable Expression Pedal control for multiple parameters simultaneously

Dedicated Expression Pedal Jack

MIDI implementation for Continuous Control Parameters

MIDI Preset Send and Receive

MIDI beat clock synchronization

Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP

Premium Analog Devices JFET input section

Dimmable screen and logo light

Color – white powder coat with fine iridescent flake

Designed and built in California, U.S.A.


About Manufacturer

Meris is an exciting new 500-series manufacturer that's bringing a lot of previous DSP experience with them. From the minds that brought you Strymon pedals and Line 6 pedal and amp modeling, Meris is bringing a dramatically different type of product to the familiar world of 500 series. Their reverb (Mercury7) and bit crusher (Ottobit) are tailor-made for engineers and musicians looking for professional-grade tools to create brand new sounds for the studio. The Mercury7 in particular is a reverb really meant for tweaking. It's not a "set and forget," preset-based box, but one that you won't take your hands off once you start twisting knobs. Even the 440 preamp comes with a dramatically different approach. It's not only a fast, forward, and great-sounding mic preamp, but a gateway between the world of pro audio and the world of guitar pedals. It's got an instrument level insert available to you on the front panel, and there is no end to the experimentation that will follow! The Meris design team includes Terry Burton, who previously founded Strymon, Angelo Mazzocco, Line6’s top choice DSP Engineer to the stars (Van Halen, the Edge, Dweezil Zappa, etc.), and Creative Director Jinna Kim, hailing from L.A.’s leading design studios, and who previously created the brand identity for Strymon.


Conversion 24 bit A/D and D/A

DSP 32 bit floating point

Sample Rate 48000 Hz

Input Impedance 1 Meg Ohm

SNR 115 dB Typical

Frequency Response 20Hz-20kHz

Max Input Level +9 dBu (instrument level setting)

+12.5 dBu (line/synth level setting)

Power 9V DC center-negative, 300mA, 2.1mm jack

Bypass Selectable True Bypass (Relay) or Analog Buffered Bypass

Dimensions 7.25” wide, 4.5” long, 2” tall.  (Same depth and height as all other pedals.)

Weight 24 ounces
