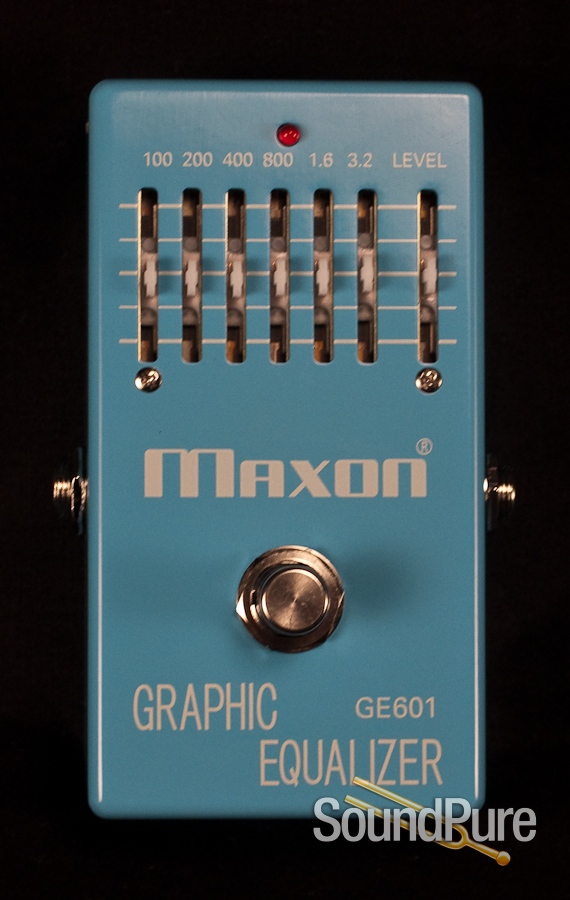

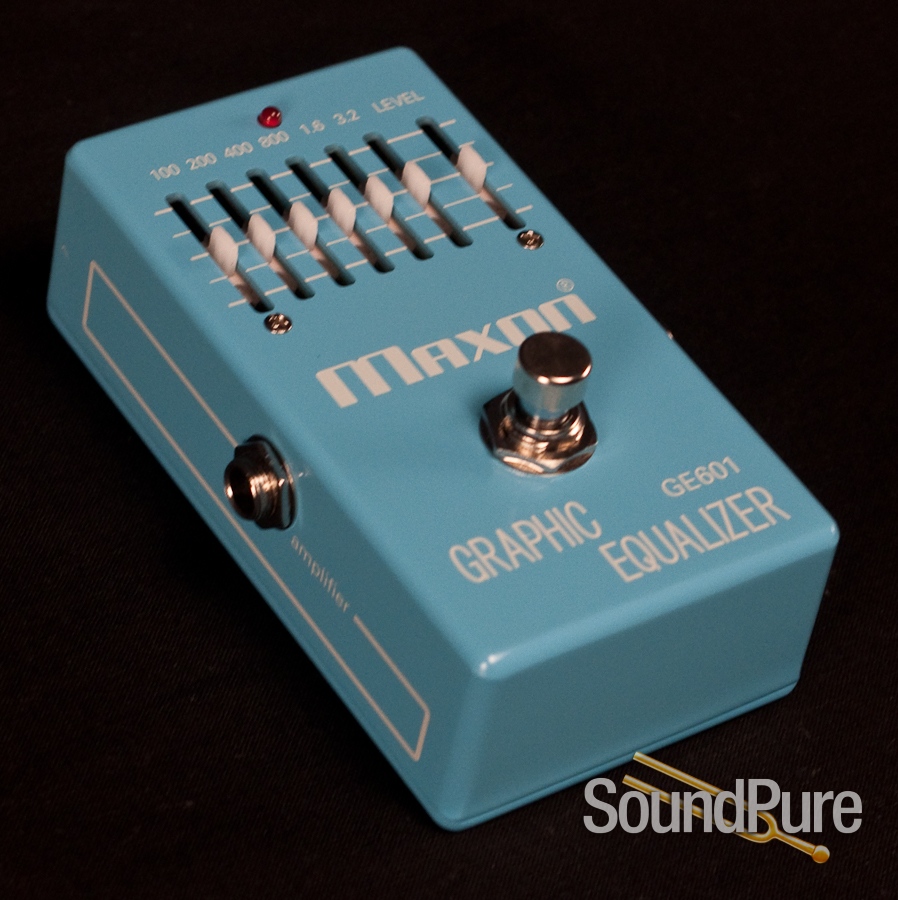

Maxon GE-601 6-Band Graphic EQ Effect Pedal From Maxon

Graphic Equalizer

Available for Special Order

See something you like? This item is gone, but not forever. It can be special ordered, and even customized!

We can get it fast!

Because of our special relationship with Maxon we can get this as fast, or faster than anyone in the industry. In some cases, we even have preferred build slots we can offer you.

Want to know when one lands?

Notify Me

Want to discuss a special order?

Call Us! Toll Free! 888-528-9703
Local / International (+1) 919-682-5552

Talk with a Specialist

Manufacturer's Description from Maxon

The GE601 Graphic Equalizer covers six carefully selected frequency bands (100 Hz, 200 Hz, 400 Hz, 800 Hz, 1.6 KHz, and 3.2 KHz) over a five octave range with 12 dB of cut/boost per band. The GE601 also offers a master output Level control with 12 dB of cut/boost. With careful use of these controls, the GE601 can be used to fine tune your sound in a variety of extremely useful ways, a few of which are detailed below.

Pickup Simulator (humbucker to single coil) By cutting 200 Hz, 400 Hz, and 800 Hz and then boosting 100 Hz and 1.6 KHz, the GE601 allows a humbucker to simulate the sharp sound of a single coil.

Pickup Simulator (passive Bass to active Bass) By cutting 200 Hz and slightly boosting 100 Hz and 1.6 KHz, the GE601 can give a passive Bass the clarity and punch of an active instrument.

Pickup Simulator (single coil to piezo) By cutting 200 Hz, 400 Hz, and 800 Hz and boosting 100 Hz, 1.6 KHz and 3.2 KHz, the GE601 allows a single coil electric to simulate the bright, chiming sound of an acoustic guitar with piezo pickup.

Half-cocked Wah (audio demo) By creating a signal peak at 800 Hz, the GE601 can emulate the tone of a wah pedal with the treadle set half-way forward. This setting is also ideal for solo boosts.

Clean Booster - By leaving all frequency bands flat and boosting the Level control to taste, the GE601 can function as a clean booster for solos or to overdrive an amplifier's input.

With a little experimentation, the Maxon GE601 can become an essential tool to maximize the tonal options of your guitar rig.

About Manufacturer

Since their beginning in the late 1960s, Maxon has built their reputation on a single concept quality. Early on our engineers realized that anything could be built faster and cheaper, but to build something better was the true mark of a master. Our relentless pursuit of perfection met many obstacles over the years, but like anyone committed to a cause, Maxon kept their sights focused on the ultimate goal to build the highest quality audio products possible. Our quest led us to many firsts in the industry the first realistic tube-amp overdrive; the first compact analog delay; the first multi-effect unit; the first programmable effect the list goes on. And while many companies have "borrowed" these groundbreaking design concepts over the years, few have been able to match Maxon's ingenuity, determination and longevity on their own. Today, after nearly 25 years as an OEM supplier to some of the music industry's largest companies, Maxon is once again offering our own brand of products to the US marketplace. We've made available detailed information on Maxon's line of analog effect units including technical specs, audio demos, user comments, and design secrets that have until now remained classified. We hope you gain as much enjoyment from studying this information as we did in compiling it! Thirty years in, Maxon has their sight set on the same goal to build the finest quality audio products possible, always. Maxon still effecting generations.
