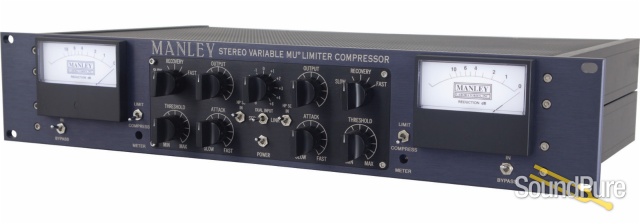

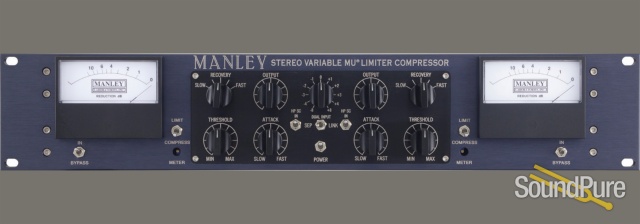

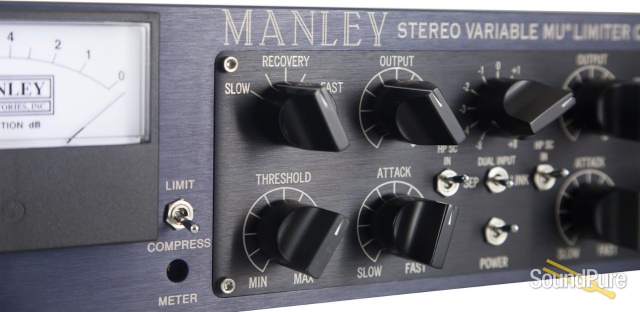

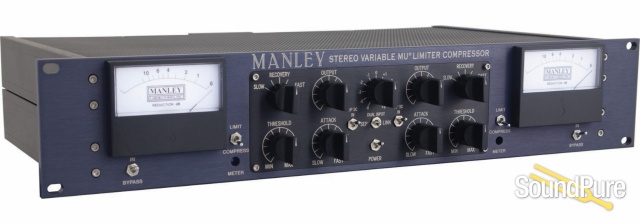

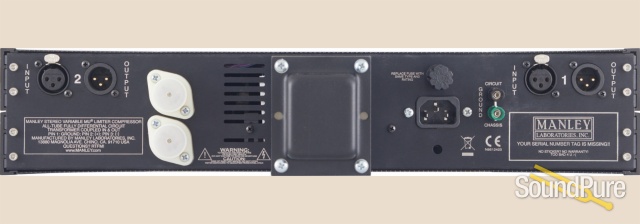

Manley Stereo Variable Mu® Limiter Compressor From Manley

The Variable Mu Limiter Compressor is the GLUE that holds the mix together while crystallizing it into a professional, final product. All-tube, all transformer, an all-American legend. High Pass Side Chain mod now comes standard.

$4,999.00

Brand New

"Experience the Difference"

Sound Pure's 3-Year Warranty

Our Free 3-Year Warranty!

In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.

Learn more »

Lifetime Support

Free Lifetime Technical Support!

Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

This Product Ships Free!

Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.

Add to Cart

Rating: 4.8
Our Google Reviews

Payments as low as $113/mo.

Or, apply & pay as little as $113/mo.

0% interest financing available. See all options.

Call Us! Toll Free! 888-528-9703
Local / International (+1) 919-682-5552

Talk with a Specialist

Manley Stereo Variable Mu® Limiter Compressor

Signal Chain
- Manley Stereo Variable Mu® Limiter Compressor

Manufacturer's Description from Manley

The MANLEY VARIABLE MU® LIMITER COMPRESSOR has been our best selling product for many years. It is one of the very few compressors that has become a real standard in Mastering studios and contributed to most hit records over the last decade and probably the next. "Mu" is tube-speak for gain, and Variable Mu® is our registered trademark for this limiter compressor. It works by using the "remote cut-off" or re-biasing of a vacuum tube to achieve compression. The precious vintage Fairchild 670 also uses this technique and is one of few all-tube compressor to do so, that we know of. Even the side-chain has glowing rectifier bottles. How’s it work? The unique 5670 dual triode is at the center of the peak-reducing and compression action constantly being re-biased by the vacuum tube rectified side-chain control voltages which cause this tube to smoothly change its gain. Just like that.

The COMPRESS mode is soft-knee 1.5 to 1 ratio while the sharper knee LIMIT mode starts at 4 to 1 and moves to a more dramatic ratio of 20 to 1 when limiting over 12dB. Interestingly, the knee actually softens as more limiting is used. Distortion can be creatively used by turning up the Input and turning down the Output while using very little or no compression. See the gain reduction curves here!

You might notice that the Variable Mu® Limiter Compressor has a ganged input control, but do not jump to conclusions that it is mono-unfriendly. Track away! There are separate threshold and output controls to make compensations with plus you can always adjust your individual source levels elsewhere, right? The advantage of the stereo input control becomes dramatically clear when you switch to LINK mode, and that’s what our Variable Mu® Limiter Compressor does better than anything else: final mix, 2-track, or mastering limiting and compression. Like one reviewer put it: “It’s like pouring a bowl of sweet cream over the mix.” Mmmmmm. Yummy. Give your music a big hug.

About Manufacturer

The MANLEY brand has been around since the late 1980's. Manley's first commercially available products were upper echelon high-fidelity vacuum tube amplifiers and preamplifiers constructed at the old Vacuum Tube Logic of America factory.

In this history lesson, we'd like to direct special focus on our people at Manley Labs. The people whose years of dedication, service, and expertise bring you people, our customers, these products. It's all about the people...

On January 30, 1989, a 20 year old EveAnna on sabbatical from her studies at Columbia University met the crew and was hired on to the production team. Baltazar Hernandez, already with two years experience, taught her how to solder in those first few days. It was in 1989 that the first Manley professional products were developed, starting with the original 1u Reference 60dB Microphone Preamplifier and soon followed by our Manley Enhanced Pultec and Mid Frequency Equalizers. Baltazar and EveAnna, busy building gear, were soon joined by Saulo and Ramiro. Just next door, Elias was employed by a printed circuit board maker later brought into the Manley Labs fold when in 1993, Manley Laboratories, Inc. became a separate entity apart from VTL. The new Manley Labs factory at 13880 Magnolia Ave. in beautiful and bovine Chino, California was outfitted to house the Manley HiFi and Pro Studio manufacturing as well as the Langevin production lines, our newly acquired machine shop, and printed circuit board facilities.

Specifications

MANLEY input & output transformers with nickel laminations in mu-metal cases with flat frequency response from 20Hz-25KHz
BALANCED INPUTS & OUTPUTS (600 Ohms)
Fully differential ALL-TUBE circuitry using one each 5670, 5751 (or 12AX7), 7044 (or 5687), & 12AL5 per channel
Independently regulated B+ and Heater supplies
Hard-wire BYPASS switch
Stepped switch INPUT attenuator as of 10/2011. (older units use Silent dual-ganged potentiometer)
RECOVERY 5 steps: 0.2s, 0.4s, 0.6s, 4sec., 8sec.
Variable ATTACK: 25msec-70msec
Continuously variable THRESHOLD
LIMIT (4:1 to 20:1) or COMPRESS (1.5 to 1)
HP SC: High Pass Side Chain Filter -3dB @ 100Hz
Large ILLUMINATED Sifam METERS (older units before serial number MSLC61642 shipped before 12/2003 use: 26V 1.2W FESTOON LAMPS; Manley's Part Number: VAR016B) Order spare bulbs using our parts order form. (newest units after serial number MSLC61642 shipped after 12/2003 use white LED lighting)
STEREO LINK SWITCH
Several units can be linked for Surround (custom order )
Maximum gain: 35dB
Max. output: +30dBu (26Vrms) 26dB Headroom
<0.1% THD @ 1KHz Noise floor: -85dB typical
Power Consumption (120/240VAC): 80 watts
Unit is factory set for 100V, 120V or 220-240VAC operation for original destination country's mains voltage.
Operating Mains Voltage changeable with power transformer changeover switch and fuse value change.
Mains Fuse Value for 100~120VAC operation: replace with 1.25A as of 10/2011
Mains Fuse Value for 220~240VAC operation: replace with 0.6A (600mA) as of 10/2011
Mains Fuse Type: MDA or MDL SLO-BLO Time delay 1 1/4" x 1/4"
Mains Voltage Frequency: 50~60Hz
Dimensions: 19” x 3 1/2” x 10” (chassis occupies 2u) Power transformer protrudes 3.5" out the back of the chassis.
Shipping Weight: 23 lbs.
