From Lauten Audio
The LS-308 offers 270 degrees of side and rear frequency rejection reducing nearby sound by up to 25dB. The rejection is achieved with Lauten Audios’ unique dual, large-diaphragm pressure gradient transducer element in combination with its specially designed circuit. The LS-308 is intended for use in multi-person close-proximity vocal dialogue, like close-quarter broadcast commentary, or when the rejection of other instruments, crowds, etc., in a live studio, on-stage or sound reinforcement is desired.
The LS-308 does not require pre-attenuation and can handle 135dB+ of SPL. The circuit also allows for an ultra-wide 120db of dynamic range. These features give engineers the ability to capture high dynamic sources, and in noisy environments
The Independent, multi-stage, high and low-cut filters help engineers balance recordings at the microphone and aid in successfully capturing the source. The 2-stage low-cut aids in reducing low frequency rumble and proximity effect. The 2-stage high-cut helps tame high frequencies.

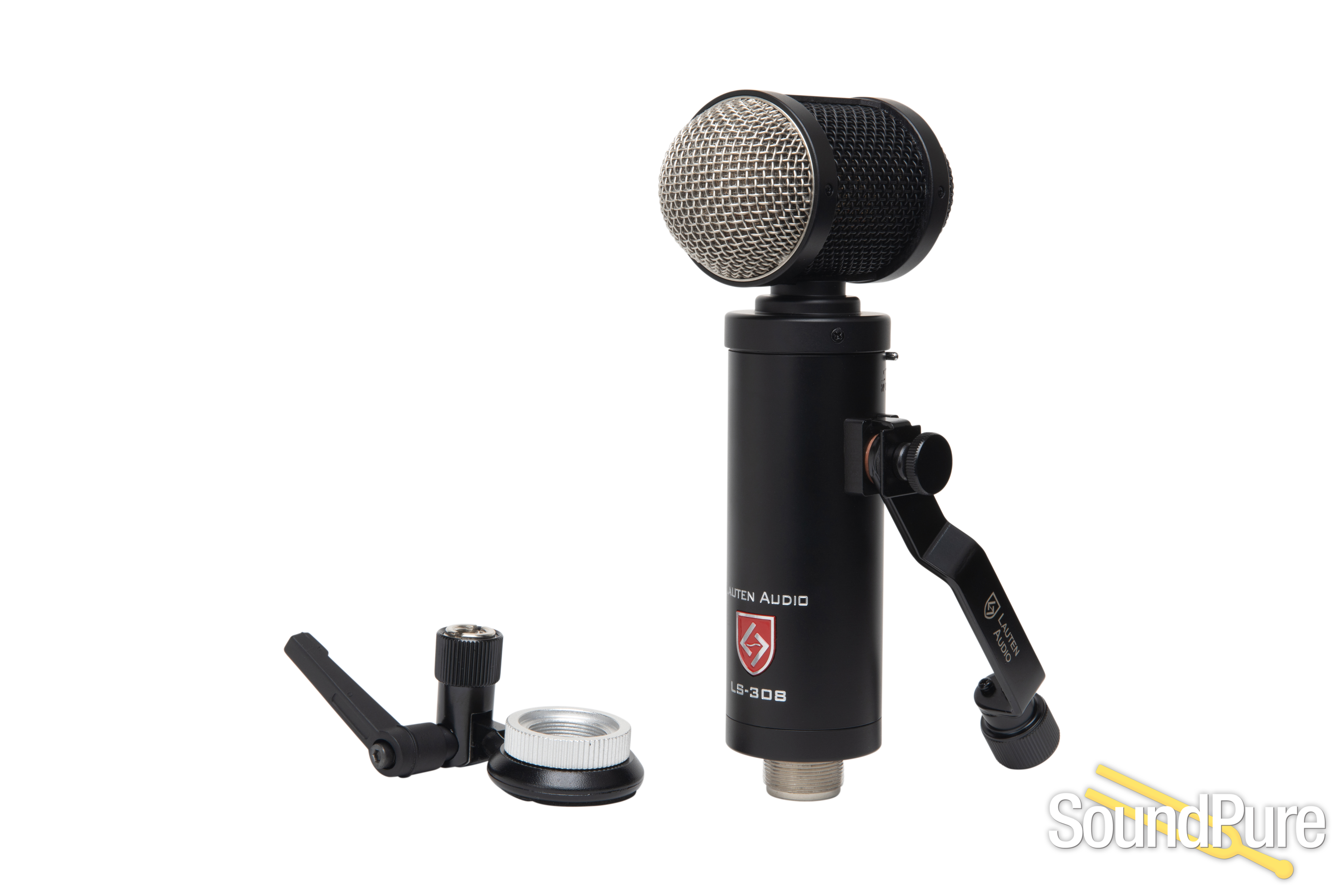

Fully accessorized both internally and externally, the LS-308 comes with the following.
▪ Internally shock mounted transducer elements to help reduce rumble and handling.
▪ Detachable side swing arm mount
▪ Hard mount for added mounting versatility
▪ Foam windscreen to protect the transducer element from plosives, wind, and debris

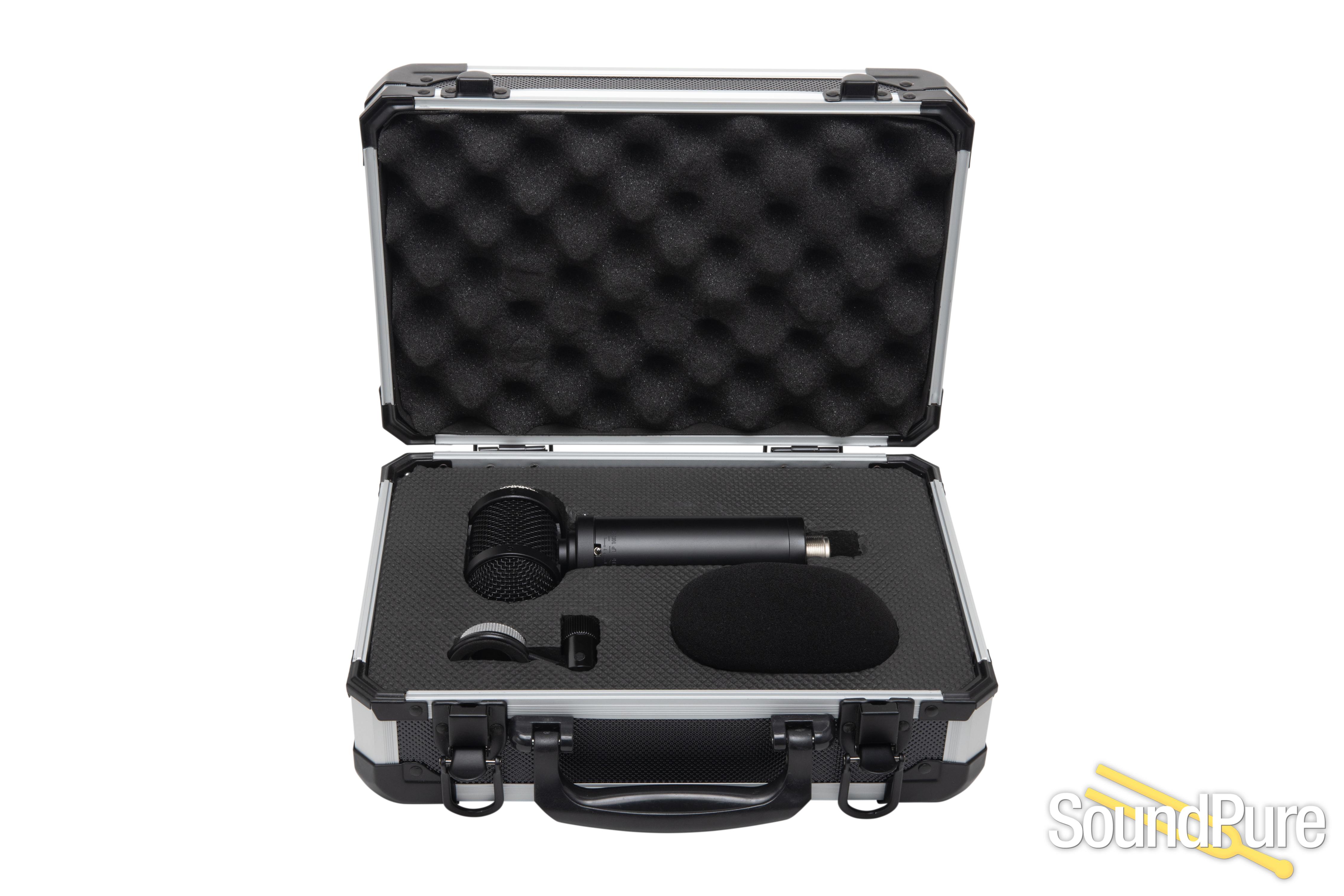

▪ Hard-case that fits all accessories and built for the rigors of the road.
Unlike any microphone of its kind on the market today, the LS-308 offers exceptional noise rejection and dynamic-range capabilities for recording in challenging environments.
Key Features
270 degrees of off-axis sound rejection
Full 120dB (135dB total) of dynamic range without the need of additional attenuation
Independent 2-stage low and high-cut frequency switches
Internally shock mounted pressure gradient condenser elements
Swing-arm mount with 135 degrees of movement (removable)
Included threaded hard mount
Foam windscreen for plosive and wind rejection
- Type
- Side-Address (Silver) Pressure gradient large diaphragm transducer microphone.
- Polar Patterns
- Second-order cardioid
- Circuit
- JFET transistor with transformer balanced output
- Frequency Range
- 20Hz-20KHz
- Dynamic Range
- 135dB (>120dB (15dB to 135dB)) without the need of internal or external attenuation
- Impedance
- >150 ohms
- SPL Handling
- >135dB (0.5%THD@1000Hz)
- Self-noise Level
- <15dB-A
- Sensitivity
- 1.5mV/Pa -56dBV (0 dB=1V/Pa 1kHz)
- Special Features
- Independent 50 & 120Hz low-cut & 8 & 10 kHz high-cut filters
- Connector
- 3-pin XLR
- Power Requirement
- +48v Phantom power
- Weight
- Microphone only: 1.25lbs – 0.57kg
- w/ swing arm
- 1.4lb – 0.64kg
- w/ hard mount
- 1.5lbs – 0.68kg
w/ case and accessories – 4.6lbs –2.09kg
- Dimensions (no case)
- Height: 7.25in (18.4cm)
- Width (w/ arm)
- 2.46in (6.25cm)
- Depth
- 3.75in (9.53cm)
Free 3-Year Warranty
