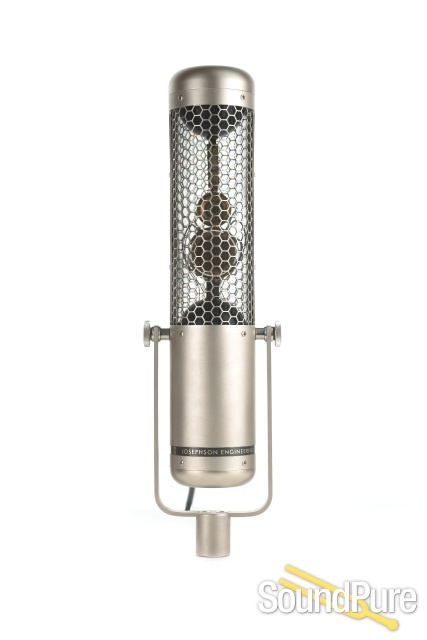

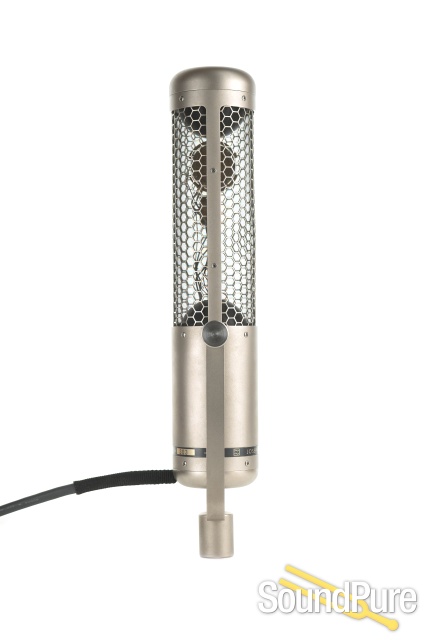

Josephson C700S Microphone  From Josephson

Variable Pattern Microphone (3 capsules)

Josephson Engineering

$8,500.00

Retail:  $9,800.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $193/mo.

Manufacturer's Description from Josephson


Series Seven microphones provide unprecedented flexibility, as the directional pattern of the mic can be adjusted in use, during or after recording. C700 microphones include omni/pressure and figure-8/gradient capsules, each with a discrete output. The signals can be recorded on separate tracks, so the pattern can be selected in mixdown. Pattern control is only one advantage of this technique. Applying different equalization or dynamic control to the capsule signals makes entirely different mic characteristics for instance the warmth of a gradient mic used close up for vocals might be combined with the transparency of a pressure mic in the highs, by rolling off the high frequencies in the gradient signal and the lows in the pressure signal before they are combined.

The C700S microphone has three capsules; an additional side-facing figure-8 capsule is added to the two in the C700A. Any coincident stereo pickup can be derived from mixing these three signals together, and like the C700A, the signals can be recorded individually and all aspects of image width and pattern control may be adjusted in the mixdown. With the three capsule signals, any number of microphone outputs may be created, each one pointed anywhere in the plane around the microphone.

The capsule assembly in the Series Seven is internally shock mounted, so that the mic may be attached directly to a stand through its yoke mount without any external accessories.

Josephson Engineering

About Manufacturer

Josephson Engineering makes a wide range of fine condenser microphones for studio, stage and field sound pickup, and audio instrumentation. The company began in San Jose, California in 1988 and moved to Santa Cruz in 2000. This is our 20th year of producing microphones. In the process of developing our own mics, we've come up with special technologies that let us realize designs that weren't possible in classic mics of years past. This means that the expert user has a wider range of sound choices, without many of the compromises of older designs. Besides our own production, we also supply microphone capsules to several other mic manufacturers that become the mics for their most demanding customers. All of our business is individual -- we use select local dealers who bring our product directly to critical users around the world. We have a standard product line that covers many applications, but if there's a microphone you need that we don't make, we'll either tell you about the best one we know of for that job, or make it for you ourselves. We won't tell you that one of our mics is good for everything -- there's no such thing. Josephson also provides electro-acoustical engineering, design and manufacturing services for challenging requirements in many industries, specializing in microphone transducers and supporting systems. Our OEM capabilities have allowed several companies to excel in their own markets, using capsules made by Josephson.

Specifications

Specifications common to C700 series

Pressure and pressure gradient condenser microphone transducers

Variable directional pattern achieved by mixing output signals (see over)

Frequency range: 20-20,000 Hz ±2 dB from reference curve

Sensitivity: –41 dB ref 1 V/Pa (9 mV/Pa) for each signal

Overload sound pressure: 135 dB SPL at 1kΩ load for <1% THD

Equivalent noise level: 15 dB SPL, A-weighted

Power supply: P48 phantom, 4 mA per output

Diameter: 63mm (100 mm wide at yoke), length 328 mm (C700A), 365 mm (C700S)

Output connector: 5-pin XLR type (C700A), 7-pin XLR type (C700S)

Downloads

Action

Name

Description

C700 Data Sheet

C700 User Guide
