Joeco Blackbox BBR1U Analog Multitrack Recorder (Unbalanced)  From Joeco

24 channel BLACKBOX Recorder – unbalanced I/O

Joeco

$2,743.00

No Sales Tax in OH!
No Sales Tax in 45 States. Learn More.

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »

No Sales Tax collected in OH.

Close
Sales Tax
Sales tax is only collected in the following states: CA, FL, NC, SC, TN and VA. If your state is not listed, sales tax will not be collected on your order.
Contact us for up-to-date delivery estimate.
Payments as low as $62/mo.

Manufacturer's Description from Joeco

The BBR1U multi-track recorder brings the high quality recordings and failsafe dependability for which the BLACKBOX Recorder is known to more traditional analogue set-ups.

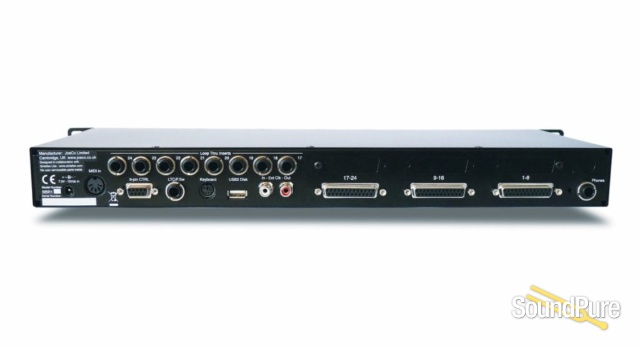

The BBR1U is designed to plug across the insert points of a standard analogue console via three 25-way female D-type connectors on the rear of the unit. Three 1/4-inch TRS terminated multicore looms can be supplied (please specify with order) for connecting the BLACKBOX Recorder to the console (via TASCAM analogue format). Inside the BBR1U multi-track recorder, relays route the audio signal from input to output in all modes except during playback. This provides an additional level of safety so that in the event of a power failure on the BBR, the audio through the PA will not be affected in live scenarios.

In this model, eight insert returns are also brought out to TRS jacks on the rear of the unit, allowing additional outboard equipment to be plugged into insert points as required.

All BLACKBOX Recorders are designed and built to exacting standards with rugged construction and a suite of unique multi-track audio capture features. The choice of professional users, the BBR1U multi-track recorder is the solution the professional audio industry chooses and trusts. For more information, see below to download the BLACKBOX Recorder brochure, for full information on the entire BLACKBOX range.

Joeco

About Manufacturer

Established in 2007, JoeCo is the creator of the award-winning BLACKBOX range of multi-track recorders and players, as well as the BLUEBOX series of Workstation Interface Recorders. Based near the beautiful British university city of Cambridge, the company is renowned for its innovative approach to design, and trusted worldwide for the reliability of its products in mission critical environments.

Specifications

General:

  • Sample Rates: 44.1 k Hz, 48 k Hz, 88.2 k Hz, 96 k Hz.
  • Bit Depths: 16 / 24 bit
  • Disk Interface: USB2 – Easy to Obtain
  • Disk Format: FAT32 – Compatible with Both Mac and PC
  • File Type: Standard Mono Broadcast WAV Files
  • Monitoring: 1 x 1/4” TRS Jack Socket, Headphone Mix / Solo
  • Physical: 19” Rack Mounted 1U (425 x 44 x 150m). Weight 2.1 kg
  • Power: (9V - 16V DC (< 30W). 2.1mm DC Inlet. PSU Supplied

Audio Input/Output

  • Analogue Inputs / Outputs: Unbalanced i/o via 3 x 25way D-sub connectors (3 x ¼” TRS multicore looms supplied – TASCAM analogue format). Designed to plug across the insert points on a standard analogue console
  • Levels: -10 dBu / +4 dBu Switchable
  • Max Input / Output Level: +22 dBu = 0 dBFS
  • A-D / D-A Conversion: 24 bit, 96 kHz 106 dB S/N, 96 dB THD+N (Typical A-Weighted)

Control and Synchronisation:

  • JoeCoRemote for iPad: App + Hardware Interface for Remote Control. Wireless or Wired Connectivity
  • MIDI: 1 x 5-Pin DIN (Open Loop). MIDI Time Code (MMC) and MIDI Machine Control (MMC) Protocol
  • LTC: 1 x 1/4” TRS Jack Socket. Frame Rates Supported: 30 fps, 29.97 Drop fps, 25 fps, 24 fps, 23.98 fps
  • Machine Control: 1 x 9-Pin D, SONY PII Protocol
  • Audio Clock Synchronisation: 2 x RCA Sockets AES3 / SPDIF Format, Also Used for Communications to Slave Units

JoeCo BlackBox BBR1-U 24-Track Recorder Includes

  • 1 x JoeCo BlackBox BBR1-U 24-Track Recorder
  • 1 x Universal PSU
  • Manufacturer Warranty
