Jackson Ampworks Newcastle 30 Amp Head - Black & Ivory  From Jackson Ampworks

Multiple tolex options available! Please call us for details.

Jackson Ampworks

Available for Special Order

See something you like? This item is gone, but not forever. It can be special ordered, and even customized!

We can get it fast!

Because of our special relationship with Jackson Ampworks we can get this as fast, or faster than anyone in the industry. In some cases, we even have preferred build slots we can offer you.

Want to know when one lands?

Notify Me

Want to discuss a special order?

What We Think

The Newcastle 30 is a simple take on a complex sound, an astoundingly good amp recreating the sounds of years past from our friends over the pond!

This amp takes simplicity to a new level - volume and tone and what else do you need? Nothing, except we'll throw on power scaling just to make sure you hit all those perfect tones at any volume deemed fit. This amp perfectly retains a robust and airy clean tone not normally associated with EL84's, but once the preamps are driven and the power tubes are able to express themselves - there's no mistaking the sound. A creamy and saturated breakup with complex harmonic frequencies and a tight low end that never loses its punch. The tone knob is surprisingly useable for such an upfront plug-and-play amp that really helps to dial in the overall sound. There's plenty of clean headroom on the amp and the kicker is the FX loop. Plug your favorite delay or reverb into the FX loop to ensure nothing compromises the signal from guitar to pre's, and assuredly you'll be in tonal bliss.

The Newcastle 30 may be a newcomer to SoundPure's lineup, but it's sure to stay for quite some time as this is one powerhouse of an amp!

Manufacturer's Description from Jackson Ampworks

The NewCastle 30

At the request of many NewCastle users, we are pleased to release the new higher powered version of the NewCastle called the NewCastle 30! The NewCastle 30™, which offers all of the features of the original NewCastle has been upgraded with 30W of EL84 driven Class A power, an FX Loop and a Variable Power Supply which allows the amp to be adjusted between 30W and 1/8W seamlessly without any tonal change!

Perfect Tone. Simplified.

Like the original NewCastle, the NewCastle 30 is a simple tone machine that will cover everything from pristine British clean to straight up Rock and everywhere in between. The clean tones are rich and full of authority with sparkling highs that never become brittle or piercing. The low end was specifically designed to remain tight and punchy even when cranked so you’ll never lose definition when playing at loud volumes. The NewCastle 30 adds to the NewCastle’s tone with increased headroom and low end punch and clarity.

Tonally the NewCastle 30 has an English heritage but is cleaner and more robust than many EL84 based amps. The NewCastle 30 is perfect for the player that uses a lot of pedals and wants an affordable clean platform to work from. In fact the NewCastle 30 remains clean up till around 2:00 on the Volume control and from there breaks up into the most musical overdrive you have ever heard!

One of the best features of the NewCastle 30 is how well it cleans up when you roll the volume on your guitar down. With the NewCastle 30 you may find that you don’t need your overdrive pedals anymore as the volume control on your guitar acts like a gain control on the amp depending on how hard you play. In fact, you may find that your favorite setting is to leave the Volume up all the way on the amp and use your guitars volume to vary between your clean and dirty tones!
Couple this with its very effective Tone control, and the NewCastle 30 can morph between pristine clean, hard rock and warm smooth jazz tones with ease!

Simple Is Better.

The NewCastle 30 is a lesson in simplicity. Someone once asked us, “What’s your secret to great tone?” Answer: “Use good parts, and use as few as possible.” That is what the NewCastle 30 is all about. The design was purposefully kept simple to make it easier to dial in and to keep your tone as pure as possible.

During the design phase of the NewCastle 30 we spent many hours working with artists, producers and engineers and we used their feedback to help dial in the circuit so that the NewCastle 30 would work seamlessly with all types of guitars, pickups and effects and the extra effort was well worth it! The NewCastle 30 is a perfect go-to amp for players looking to capture great tone either live or in the studio!

Special attention was paid during the design of the NewCastle 30 to guarantee that lack of headroom would never be a concern as is often the case with other 30W amps. To give as much power and headroom as possible, the power supply and output section were overbuilt to guarantee that the amp delivers every last bit of power possible out of it’s quartet of
EL84’s! In addition to this, the NewCastle 30 features a Variable Power Supply which allows the high voltage of the amp to be seamlessly adjusted from 100% power down to 10% power with no tonal change at all. The only difference is how loud the amp is! The tone and dynamics stay the same and all the touch sensitivity you would expect from a tube amp remain constant but now at bedroom volumes!

Along with the power amp section, the preamp has been designed to handle single coil as well as humbucker equipped guitars with ease and without becoming flabby in the low end, even when the amp is cranked!
Try the NewCastle 30 yourself and experience its ease of use and pure rich tone, and we think you’ll agree that simple really is better!

Fully Featured.

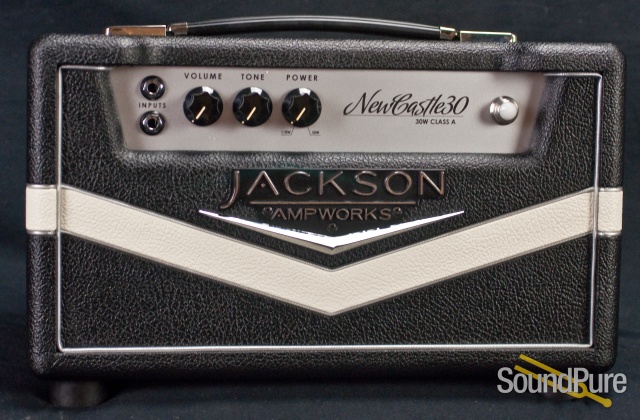

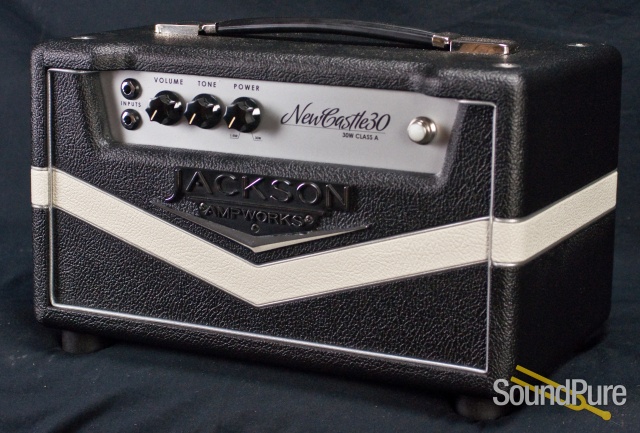

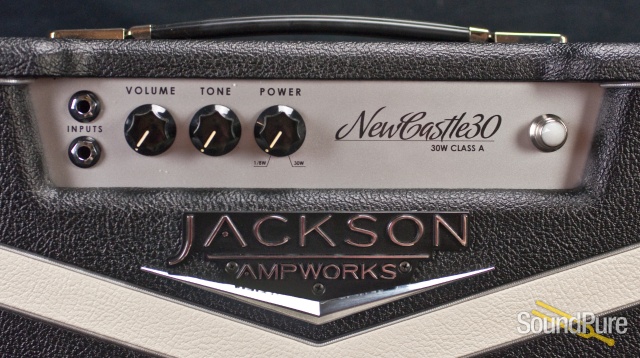

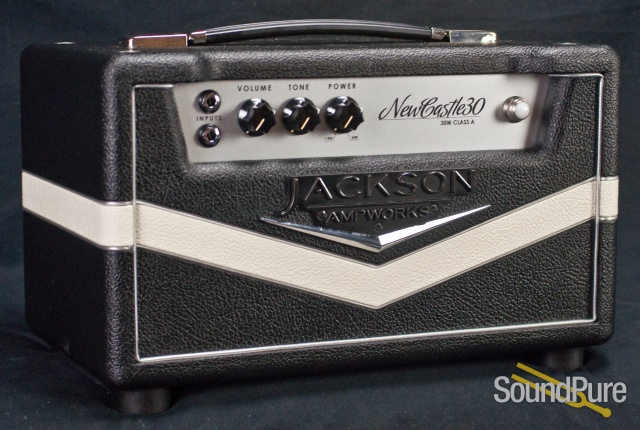

The front panel features a single Input, Volume and Tone controls and the addition of a Power control. The Volume control acts as both a Volume as well as a gain control. The higher you run the Volume the more the amp will overdrive in response to how hard the player attacks the strings. The Tone control acts as a master tone control for the entire amp and works similar to the tone control on a guitar. Rotating the Tone control clockwise will increases the high-end response of the amp and conversely rotating the Tone control counter clockwise removes high-end response from the amp which helps when a darker tone is desired or with bright sounding guitars. The full clockwise position removes the Tone control from the amplifier circuit to keep your original tone as pure as possible.

The Power control on the front of the amp is where you can adjust to total output of the amp. Not a master volume though! While the Power does control the overall volume of the amp it does so by varying the high voltage of the amp from full power, 30W Class A to 1/8W Class A. We suggest starting with the Power control at the 30W setting (fully clockwise) and adjusting lower as needed for the band or room you are playing in. Lower settings on the Power control will allow you to increase the Volume control for more gain while keeping the overall volume of the amp at a reasonable volume.

For occasions when the player does not need to Power Scale the amplifier a Power Scaling bypass switch has been included that allows the player to completely bypass the Power Scaling feature and return the NewCastle 30 to stock performance.

WARNING: Never flip the Power Scaling Bypass Switch to the OFF position unless the Power control is in the full clockwise position. Doing so will cause undue stress on the amplifier and switch as the amplifier attempts to rapidly rebias itself.

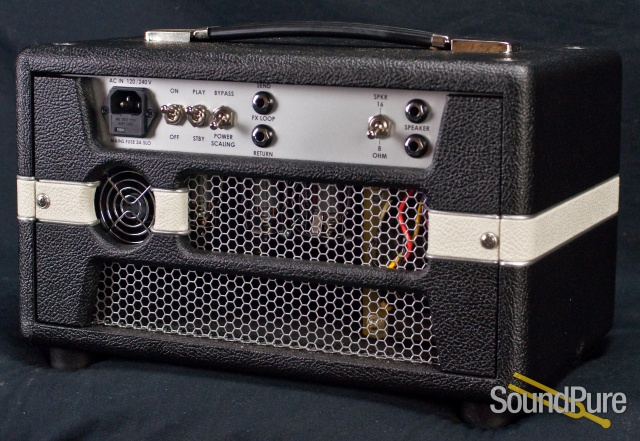

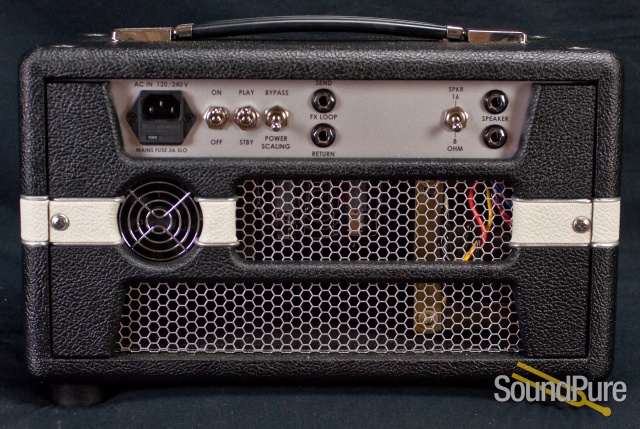

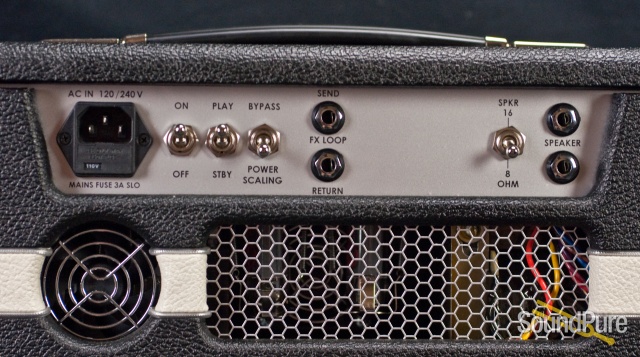

Like the front panel, the back panel is kept very simple. There are two speaker out jacks with an impedance selector switch that provides outputs of either 8 or 16 ohms. Located next to that are the Power and Standby switches as well as an IEC module with an integrated fuse and a switch for selecting between 120V and 240V operation. With the NewCastle 30 you’ll never have to worry about traveling on the road since the amp is designed to work at all line voltages!
To make the NewCastle 30 even more flexible, we have incorporated a series FX loop between the preamp and power-amp. Adding an FX loop here allows the player to use his/her effects in the loop and not interfere with the critical relationship between the guitar and preamp.
Jackson Ampworks

About Manufacturer

Jackson Ampworks is a small boutique amplifier shop located just north of Fort Worth, TX. Our daily focus is to deliver the best sounding, most reliable and musical sounding instruments possible that inspire the player to greater heights in his/her craft. We are very blessed to have been growing continually since we began full time operations just over 3 years ago. This growth, during one of the worst economic climates in US history, is largely due to our loyal customers and dealers without whom we would not be in operation today.

Sound Pure is excited to bring Brad Jackson and the wonderful people at Jackson Ampworks to our inventory and we think you'll drool once you hear some of these rigs!


30W Class A – 1/8W Class A
  • (2) – 12AX7 Preamp Tubes
  • (4) – EL84 Output Tubes
Mallory 150 Series Capacitors

Cathode Bias

Genuine Carling Switches

Carbon Film Resistors

Custom Wound Overspec Power and Output Transformers

13 Ply Baltic Birch Cabinet with Dovetail Joints

Handwired Turret Board Contruction

Anodized Aluminum Chassis

Genuine Neutrik Jacks

Laser Engraved Stainless Steel Panels

Switchable 120V/240V Operation

Front Panel Controls:
  • - Input
  • - Volume
  • - Tone
  • - Power

Rear Panel Controls:
  • - FX Loop
  • - Speaker Jacks
  • - Impedance Selector (8/16)
  • - Power
  • - Standby
