From IGS Audio

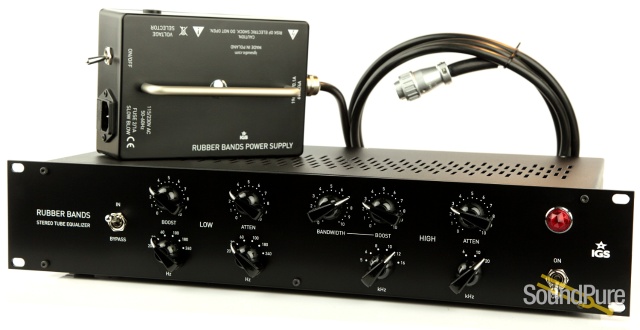

Front Panel
Bypass/In - relay bypass
- Low Boost frequencies
- 20, 30, 60, 100, 180, 240 Hz,
- Low Atten frequencies
- 20, 30, 60, 100, 180, 240 Hz,
- Bandwidth
- Sharp - Wide,
- High Boost frequencies
- 5, 6, 8, 10, 12, 16 kHz,
- High Cut frequencies
- 6, 10, 20 kHz.
- Specification
- s

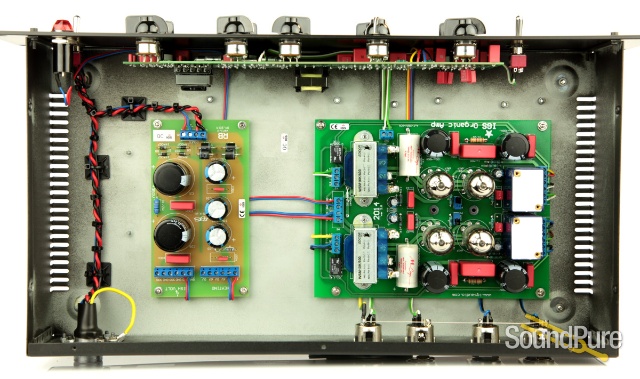

Passive equalizer with tube Organic Amp,
XLR, transformer balanced inputs/outputs,
Nominal Level +4 dBu,
- Smooth control
- Bass Boost; Bass Cut; High Boost Q; High Boost; High Cut,
Step control for all bands,
True Bypass switch,
21 frequencies,
- EQ Boost/Cut Range
- 15 dB,
- Bandwidth range
- 1.5 to 3,
- Frequency Response
- 20 Hz - 20 kHz (+0.1/-0.2 dB)
Maximum Input Level +18 dBu
Maximum Output +22 dBu
THD 0.25 % (@ 20 Hz - 20 kHz)
THD+N 0.33 % (@ 20 Hz - 20 kHz)
IMD (SMPTE) 0.32% (@ 20 Hz - 20 kHz)
- Signal to Noise Ratio
- 81 dBA (@ 20 Hz - 20 kHz)
- Dynamic Range
- 95 dBA (@ 1kHz, +18 dBu)
- Crosstalk
- 80 dB (@ 20 Hz - 20 kHz)
Input Impedance 10 kOhm
Output Impedance 600 Ohm
- Tube Complement
- 4 x 6N1P-EW,
- Optional tube replacement
- 4 x 6BC8 or 6BC7,
- Input transformer
- Carnhill UK,
- Output transformer
- Edcor USA,
- Power Consumption
- 34 watts,
110/230V AC switch, 50~60Hz,
- Size
- 2U, 19",
External dedicated power supply,
- Shipping Weight
- 8 kg.
- Analog cure for digital disease
- )
