Heritage Audio HA-609A Dual Channel Compressor  From Heritage

Dual channel compressor with vintage vibe and impressive, uncompromising sound!

Heritage Audio

$1,999.00

"Experience the Difference"

Sound Pure's 3-Year Warranty

Close
Our Free 3-Year Warranty!
In addition to the standard included manufacturer warranty, virtually all new products carry our exclusive, industry-leading, absolutely free, Sound Pure 3-Year Warranty, which includes PARTS & LABOR. This high-value perk is our way of providing the ultimate in added value to enhance the unique personal touch our small, dedicated team contributes to each purchase.
Learn more »

Lifetime Support

Close
Free Lifetime Technical Support!
Our small team of dedicated experts is here to help the original purchaser for the lifetime of the product. Why? Because we care about building real relationships with our customers for life and stand behind every product we sell.

Free Shipping

Close
This Product Ships Free!
Products ship from our well-located, climate- and humidity-controlled warehouse absolutely free (inside the continental USA). Low-cost international shipping options exist for most products.
Contact us for details »
Contact us for up-to-date delivery estimate.
Payments as low as $45/mo.

Manufacturer's Description from Heritage

Heritage Audio is proud to announce the HA-609A, a modern, improved take on the classic tracking/mixing diode bridge compressor.  As with the other products in their Elite Series, the HA-609A takes advantage of the latest in manufacturing technology to offer an unprecedented value without compromising audio quality — all built at the Heritage factory in Spain.

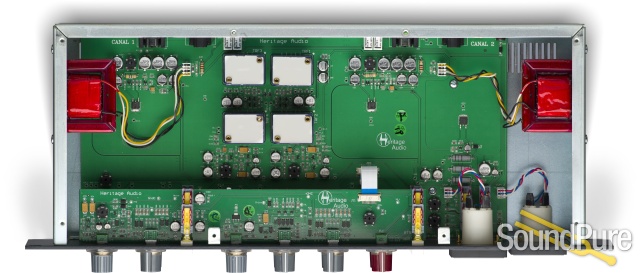

The HA-609A is a modern take on the classic transformer coupled diode bridge compressor/limiter design, with several improvements brought in to accommodate the modern workflow.  While some classic iterations of this design utilized some IC chips and a class A/B amplifier stage, the HA-609A features an entirely discrete, class A design and a total of three Carnhill/St Ives transformers per channel.  The addition of a fast attack mode for both the compressor and limiter section allow the HA-609A the flexibility to handle individual tracks as well as groups and 2-bus program material. Thanks to a proprietary system of diode bridge gain reduction cells introduced with the highly regarded SUCCESSOR, the HA-609A has better channel matching than any earlier incarnations; while the use of rotary switches and high quality, stepped pots allow for easy recall and maintain a perfect stereo image.





Heritage Audio

About Manufacturer

Heritage Audio is one of the few premier manufacturers of Neve preamp and compressor clones. With their established team of veteran designers, they claim to offer the most historically accurate clones of the fabled Neve units.

Specifications

Maximum input level: Over +22 dBu.

Maximum output level: Over +26.5 dBu into 600 ohms.

Self-Noise: Less than -75dBu 20Hz-20Khz. -80dBu A-weighted.

THD+N (50Hz- 20Khz): not engaged, less than 0.07% at +20dBu.

Frequency response, COMPRESS and LIMIT OUT, +- 0.5dB, 15Hz- 30Khz.

Input impedance: 10Kohms, transformer balanced and floating.

Output impedance: Less than 75 ohms, transformer balanced and floating, Class A driven.

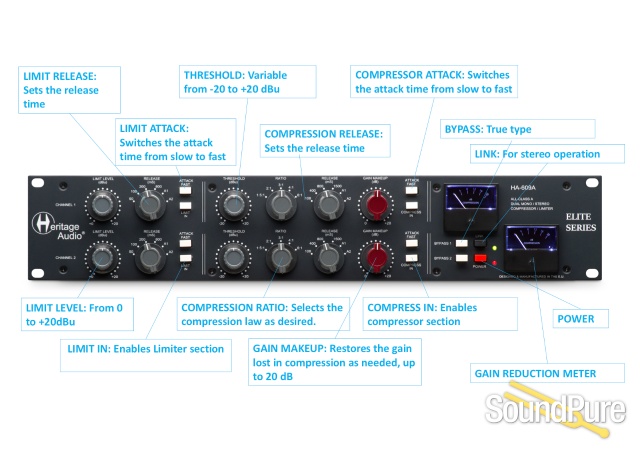

Compressor characteristics: Threshold from –20 to +20 dBu on a 41-step precision potentiometer. Ratio selectable on a rotary switch, 1.5:1, 2:1, 3:1, 4:1, 6:1. Release selectable on a rotary switch, 100, 400, 800, 1500 mS, A1 and A2 auto release times. A1 corresponds to 50mS on peaks and around 500mS on sustained program. A2 to 50mS on peaks and 1.5 seconds on sustained program.

Limiter characteristics: Limit level selectable from 0 to +20 dBu on a 41-step precision potentiometer. Release selectable on a rotary switch, 50, 100, 200, 800 mS, A1 and A2 auto release times. A1 corresponds to 50mS on peaks and around 800mS on sustained program. A2 to 50mS on peaks and 1.5 seconds on sustained program.
