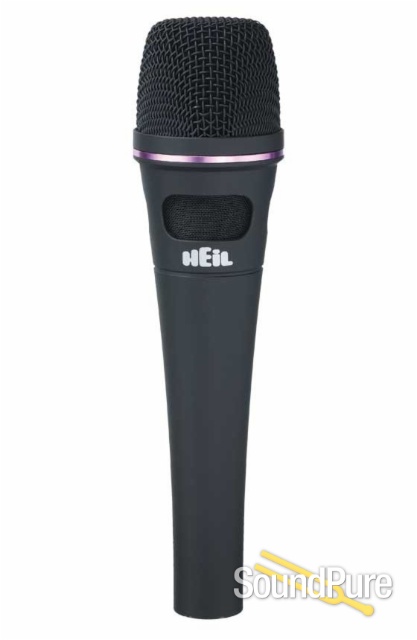

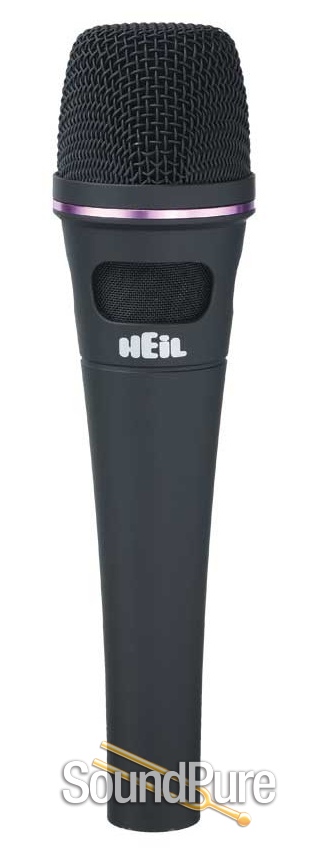

Heil PR35 Microphone  From Heil

The PR 35 has been designed for commercial broadcast, recording and live sound reinforcement applications which require a smooth flat response over a wide frequency range. The PR 35 was designed around the acclaimed PR 30 element and incorporates a shock mount to give the best possible results.

The PR 35 achieves its exceptional performance by using a special magnet structure and a large aluminum 1 1/2" low mass voice coil assembly. A carefully wound and placed hum bucking coil allows the PR 35 to be used close to video monitors without unwanted hum or buzz. Special attention has been paid to the phasing plug assembly with equally placed ports that sense audio from behind the source. It then enters them out of phase thus producing a very linear cardioid pattern. This reduces the proximity effect while achieving the extreme articulation across its smooth 40 Hz- 18 kHz frequency response. The new Heil element can be used in extreme high sound pressure levels and is immune to overload conditions. It produces a beautifully smooth audio response without the inconvenience of phantom or outside d.c. powering.

The PR 35 has an internal low frequency filter push button switch which can be accessed by using a small screwdriver or paperclip. With the switch pushed DOWN, the audio rolls off at 80Hz at -6 dB per octave. In the UP position, the filter is removed and the entire wide response of 40 Hz. to 18 kHz is present.

The cardioid pattern offers the greatest rejection of unwanted audio at 180 degrees off axis, which is directly behind the microphone; there is virtually no off-axis coloration.

Supplied with a microphone clip that mounts to any 5/8"- 27 mic thread. It also comes with a leatherette carrying case.

For amateur radio a CC-1 XLR cable is required to interface with a transceiver.
