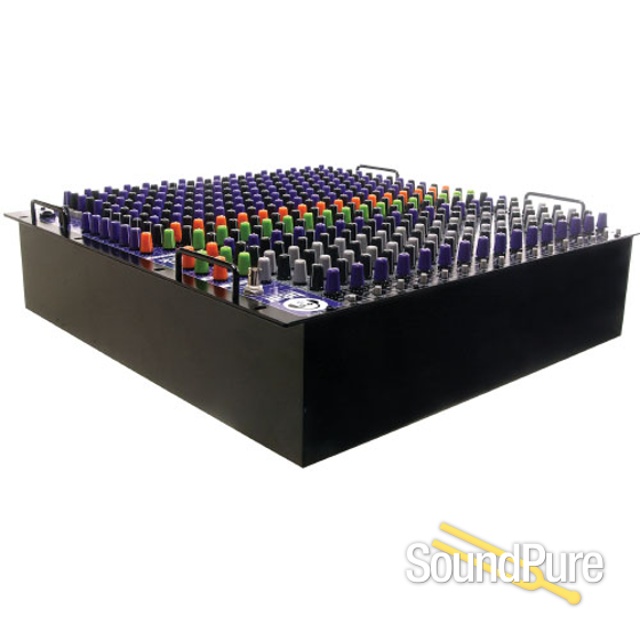

16 x 12 x 2 x 2 Matrix Monitor Mixer With Remote
$926.00
Retail: $1,158.00
Included is a UV LED gooseneck lamp that makes the knob pointers and silkscreen on the front of Mix Back glow-in-the-dark!
Hear Back | Personal Monitor Mixer System Hear Technologies has designed a new personal monitor mixer system called the Hear Back. It changes the way monitor mixing is accomplished on stage or auditorium; as well as, in the studio. Imagine getting your mix exactly the way you want it. With the Hear Back, you save time and get the sound just right, the first time. This affordable system is perfect for headphones, wired and wireless in-ear monitors, and/or conventional floor monitors
Passive Microphone Split (Each Channel) | ||
---|---|---|
Mic In to Mic Out: | Passive | |
Mic Power: | +18 VDC | |
Pin 1 Lift: | Output XLR | |
Mic Input to Insert Output | ||
Conditions: +14 dBu input, Gain full CCW, 150 Ω, Balanced | ||
Frequency Response: | 20 Hz to 20 KHz, +/- 0.05 dBu | |
10 Hz to 120 KHz, +/- 0.3 dBu | ||
THD+N: | 0.002%, 22 Hz to 22 KHz, unweighted | |
IMD: | 0.004% | |
EIN: | -121 dBu, 150 Ω Source, -40 dBu input | |
Mic Pre to Master Output | ||
Conditions: 0 dBu input, Gain full CCW, 150 Ω, Balanced | ||
Frequency Response: | 20 Hz to 20 KHz, +/- 0.5 dBu | |
THD+N: | 0.004%, 22 Hz to 22 KHz, unweighted | |
IMD: | 0.004% | |
Maximum Gain: | 60 dBu, EQ Flat | |
Line Inputs to Insert Outputs | ||
Conditions: +18 dBu input, Gain full CCW, 150 Ω, Balanced | ||
Frequency Response: | 20 Hz to 20 KHz, +/- 0.3 dBu | |
THD+N: | 0.005%, 22 Hz to 22 KHz, unweighted | |
IMD: | 0.005% | |
Maximum Gain: | 10K Ω, balanced | |
Attenuation: | 18 dB | |
Channel Equalization | ||
Hi Frequency: | 10 KHz shelving, +/- 15 dB | |
Hi Mid Frequency: | 500 Hz to 15 KHz, +/- 15 dB | |
Lo Mid Frequency: | 50 Hz to 3 KHz, +/- 15 dB | |
Lo Frequency: | 100 Hz shelving, +/- 15 dB | |
Hi-Pass Filter: | 100 Hz, 3 pole, 18 dB/Octave | |
Buss Inputs to Master Outputs | ||
Conditions: +4 dBu input, 150 Ohms, Balanced | ||
Frequency Response: | 20 Hz to 20 KHz, +/- 0.2 dBu | |
THD+N: | 0.005% | |
IMD: | 0.005% | |
Input Impedance: | 10K Ω, balanced | |
Digital Output: | ||
ADAT Output: | 24 Bit, 44.1 KHz / 48 KHz Selectable | |
HearBus Output: | 24 Bit, 44.1 KHz / 48 KHz Selectable | |
ADAT/HearBus 1: | Master 1 L/R, Channels 1-6 | |
ADAT/HearBus 2: | Master 2 L/R, Channels 7-12 | |
Analog Line Outputs | ||
Maximum Output Level: | +24 dBu, TRS Balanced | |
Output Impedance: | 121 Ω, balanced | |
Talkback Mic Pre Amplifier | ||
Conditions: -40 dBu input, 150 Ω, Balanced | ||
Frequency Response: | 20 Hz to 20 KHz, +/- 1.5 dBu | |
Gain: | Off to 50 dBu, variable | |
Line Output: | 121 Ω, TRS Balanced | |
Input Impedance: | 1K Ω, balanced | |
THD: | 0.05% | |
IMD: | 0.09% | |

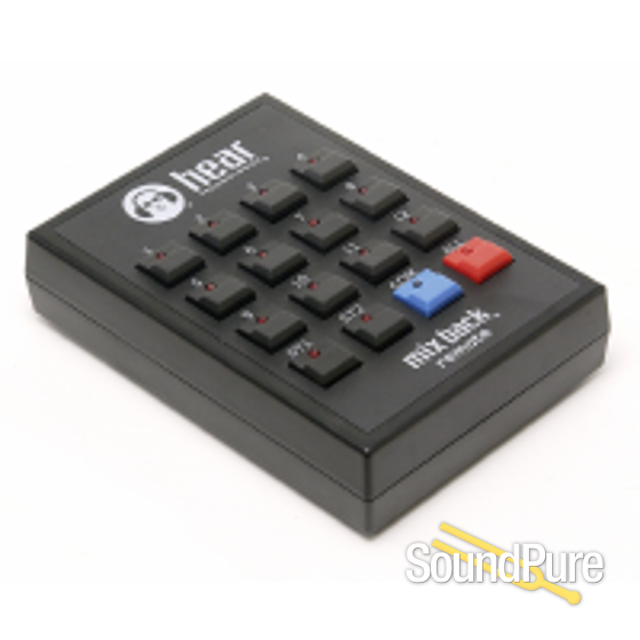

Remote Control: | 1-12, ST1, ST2, COM, ALL | |
Remote Cable: | CAT5e, 500 ft. max, wired pin-to-pin | |
Effects (FX) Return | ||
Conditions: +4 dBu input, 150 Ω, Balanced | ||
Frequency Response: | 20 Hz to 20 KHz, +/- 0.5 dBu | |
Gain, FX return to Master: | 1 dB, Master at center | |
THD+N: | 0.0025%, 20 Hz to 20 KHz | |
IMD: | 0.0027%, 20 Hz to 20 KHz | |
Input Imedance: | 10K Ω, balanced | |
Maximum Input Level: | +10 dBu, control centered | |
Stereo Aux Input | ||
Conditions: +4 dBu input, 150 Ω, Balanced | ||
Frequency Response: | 20 Hz to 20 KHz, +/- 0.5 dBu | |
Gain: | Off to +6 dBu, Aux to Stereo Masters | |
THD+N: | 0.0033%, 20 Hz to 20 KHz | |
IMD: | 0.004%, 20 Hz to 20 KHz | |
Input Imedance: | 10K Ω, balanced | |
Maximum Input Level: | +8 dBu | |
Power Supply (Universal) | ||
Input Voltage: | 100 to 240 VAC~, 50-60 Hz | |
Input Current: | 2 Amps | |
Maximum Continuous Input Power: | 240 Watts | |
Fuse (Internal): | 3.15 Amp | |
Inrush: | 60 Amps, 2 mSec | |
Short Circuit Protection: | Yes | |
AC Input Connector: | IEC 320-C14, Internationa | |
Agency Listing: | FCC class B, CISPR 22 class B, IEC 60950-1 safety, EN 61000-4-2, 4-4, 4-5 | |
Physical | ||
Construction: | Steel Chassis / Steel Front Panel | |
Size (with 1” handles): | 19.23" H x 19" W x 5.35" D (488mm H x 482.6mm W x 135mm D) | |
Unit Weight: | 30.8 lbs (14 kg) | |
Mounting | Standard rack mount, 11RU | |
Shipping size: | 10.55" H x 25.0" W x 24.53" D (268mm H x 635mm W x 623mm D) | |
Shipping Weight: | 42.9 lb. (19.5 kg) |
Note: 0 dBu = 0.775 Vrms. Specifications and features subject to change without notice.
